iDEAL Electric Winch, 12VDC #FR-Ewinch
| Model / Part Number | FR-EWINCH |
| Type | Electric Winch, Frame Rack Accessory |
| Power | 12VDC |
| Maximum Pulling Capacity | 3,500 lb |
| Maximum Rolling Capacity | 10,000 lb |
| Cable Length | 30 ft |
| Compatible Equipment | Tuxedo FR-55 and other frame racks / four-post lifts |
- Mounts to the host frame rack or four-post lift via included base anchor bracket
- Indoor use, matching the host equipment's installation
- 12VDC power supply
- 10-ft power cord included
- Confirm 30-ft cable length and mounting location on your frame rack or four-post lift
- Ships by small parcel/LTL depending on order

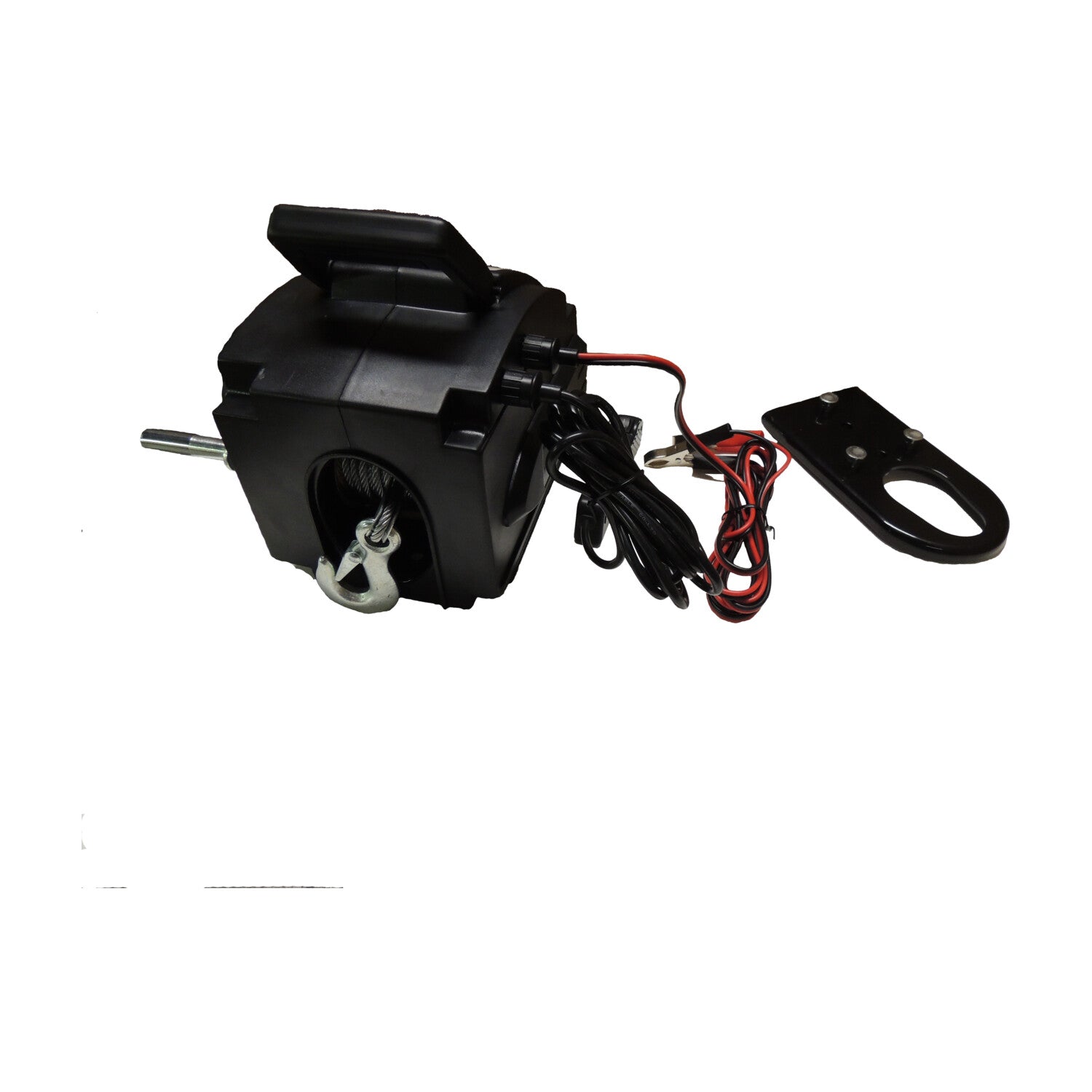

Tuxedo FR-Ewinch — Electric Winch, 12VDC
The Tuxedo FR-Ewinch is a 12VDC electric winch accessory used to load damaged or disabled vehicles onto a frame rack or four-post lift. It's rated for 3,500 lb maximum pulling capacity and up to 10,000 lb maximum rolling capacity, with a 30-ft cable, a 10-ft remote cable, and a 10-ft power cord for flexible positioning around the bay.
Heavy-duty, marine-grade construction, a hand-held remote control, a base anchor bracket for mounting to most frame machines, and a hand crank for manual backup are all included.
Who It's Built For
- ✅ Collision repair shops running a Tuxedo FR-55 or other compatible frame rack / four-post lift
- ✅ Shops that regularly need to winch disabled or non-running vehicles into position
- ✅ Facilities wanting remote-controlled winching instead of manual pulling
What It's NOT Built For
- ❌ Standalone use — it requires an existing frame rack or four-post lift to mount to
- ❌ Pulling loads beyond its 3,500 lb rated pulling capacity
Questions about fit or ordering? Call Alamo at (817) 865-3707.
What Makes the FR-Ewinch Different
3,500 lb Pulling / 10,000 lb Rolling Capacity
Rated to load damaged or dead vehicles that can't be driven onto a frame rack or lift under their own power.
Remote-Controlled Operation
Hand-held remote lets one technician operate the winch from a safe position while positioning the vehicle.
30-ft Cable, 10-ft Remote and Power Cords
Cable and cord lengths are sized for typical bay layouts, giving flexibility in mounting location.
Universal Base Anchor Mounting
Included base anchor bracket allows mounting to most frame machines, including the Tuxedo FR-55.
✅ Best For
- ✅ Shops that already run or are ordering a compatible frame rack or four-post lift
- ✅ Facilities that regularly winch in disabled vehicles for frame or collision work
❌ Not Ideal For
- ❌ Shops without a compatible frame rack or four-post lift already in place
| Model / Part Number | FR-EWINCH |
| Type | Electric Winch, Frame Rack Accessory |
| Power Requirement | 12VDC |
| Maximum Pulling Capacity | 3,500 lb |
| Maximum Rolling Capacity | 10,000 lb |
| Cable Length | 30 ft |
| Remote Cable Length | 10 ft |
| Power Cord Length | 10 ft |
| Included Accessories | Base anchor bracket, hand-held remote, hand crank |
| Compatible Equipment | Tuxedo FR-55 and other compatible frame racks / four-post lifts |
⚠️ Installation Requirements
- Mounting: Mounts to the host frame rack or four-post lift using the included base anchor bracket.
- Power: 12VDC supply; 10-ft power cord included.
- Installation: Call Alamo at <a href="tel:+18178653707" style="color:#c47a20;font-weight:600;">(817) 865-3707</a> to confirm compatibility and coordinate installation on your existing equipment.
Warranty — FR-Ewinch
For exact warranty terms and coverage on the FR-Ewinch, please contact Alamo Equipment at (817) 865-3707.
❓ Frequently Asked Questions — FR-Ewinch
What is the FR-Ewinch used for?
It's a 12VDC electric winch used to load damaged or disabled vehicles onto a frame rack or four-post lift.
What's the maximum pulling capacity?
3,500 lb pulling capacity, with up to 10,000 lb maximum rolling capacity.
What equipment is the FR-Ewinch compatible with?
It mounts to the Tuxedo FR-55 and other compatible frame racks or four-post lifts using its included base anchor bracket.
Is a remote control included?
Yes. A hand-held remote is included, along with a hand crank for manual backup.
Why Buy the FR-Ewinch from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
We coordinate delivery, setup, and after-sale support so you have one number to call.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
