iDEAL 3D HD Multi-Axle Image Wheel Aligner Sy #IWA-60-8500-HD-K
| Model / Part Number | IWA-60-8500-HD-K |
| Type | 3D HD multi-axle floor alignment system |
| Vehicle Class | Medium/heavy-duty trucks & trailers |
| Vehicle Lift Required | No — floor alignment system |
| Camera View Range | Up to 50 ft (dual towers) |
| Axles Measured | Up to 4 at once |
| Wheel Clamp Range | 15 in – 27 in (8 adjustable clamps included) |
| Ship Weight | 1,300 lb |
- Long, level floor lane for drive-thru or dead-end setup configuration
- Confirm floor space for HD turntables and drive-on floor ramp sets
- Drive-over cable plates included for drive-thru configuration
- Standard shop electrical service for the mobile cabinet, computer, monitor, and printer
- Confirm outlet placement near your chosen alignment bay
- Mobile cabinet allows side or front-centered placement for drive-thru or dead-end setups
- Dual towers provide up to 50 ft of view range — confirm your bay length
- No vehicle lift required — floor-based multi-axle system
iDEAL 3D HD Multi-Axle Image Wheel Aligner System — IWA-60-8500-HD-K
The IWA-60-8500-HD-K is a 3D HD multi-axle floor alignment system engineered for medium- and heavy-duty trucks and trailers. It requires no vehicle lift — the system measures alignment directly on the shop floor, designed to handle long vehicles and vehicles with trailers.

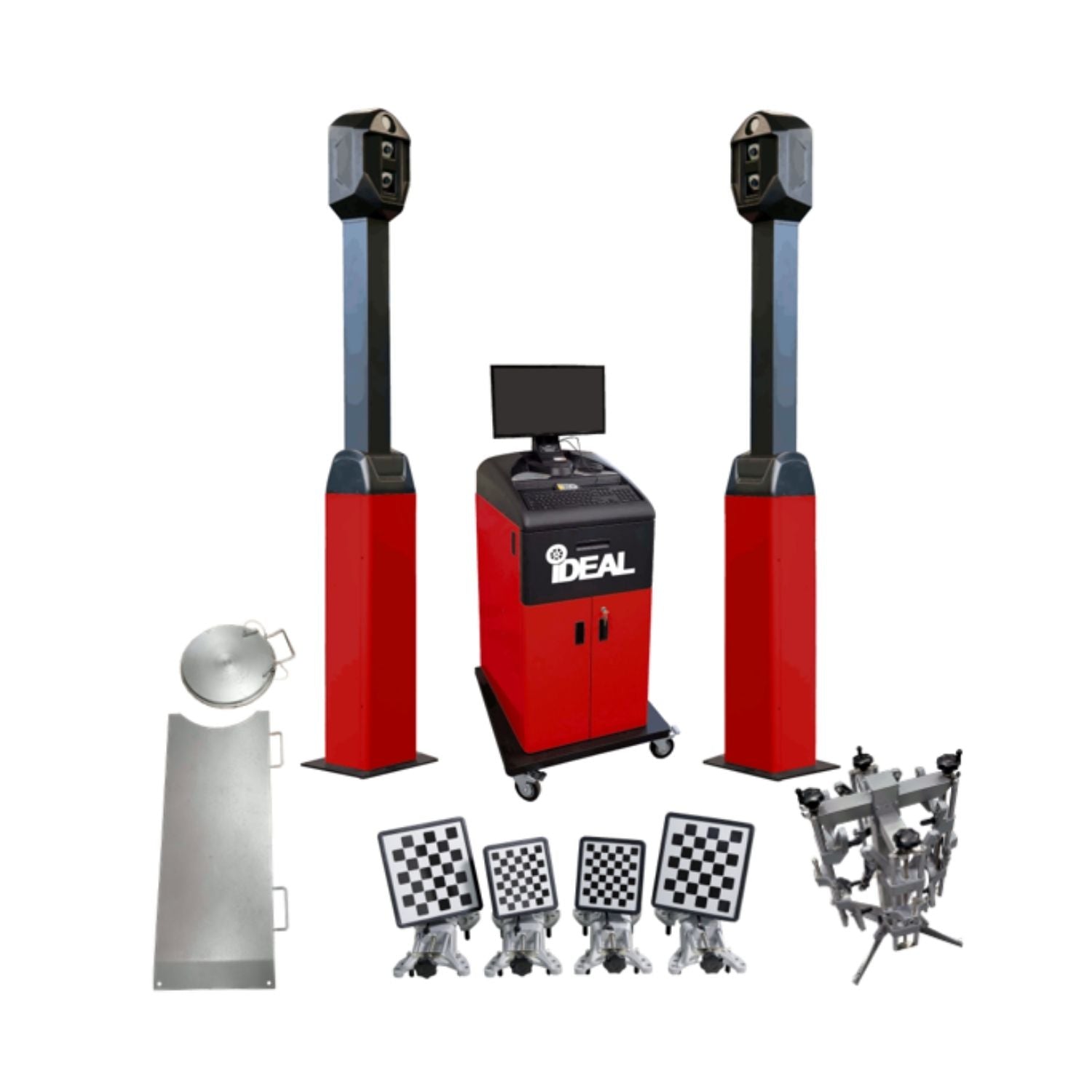

High-resolution, extended-range 3D tower cameras measure up to four axles at once, with an integrated quick-reference vehicle database built for commercial vehicles. The kit includes HD turntables and drive-on floor ramp sets for quick front-end alignments, plus drive-over cable plates for a drive-thru configuration. A dynamic LED tower guide changes shape to walk the technician through positioning, and dual towers give a working view range up to 50 ft.
It's built for commercial/fleet alignment shops, heavy-duty truck and trailer service centers, and any facility that needs to align long-wheelbase vehicles without a dedicated alignment lift.
Who It's Built For
- ✅ Commercial and fleet alignment shops servicing medium/heavy-duty trucks and trailers
- ✅ Facilities needing multi-axle (up to 4 axles) alignment measurement in one pass
- ✅ Shops that need floor-based alignment without a dedicated alignment lift
What It's NOT Built For
- ❌ Passenger car/light-truck-only shops wanting a portable multi-bay system — see the IWA-60-2000T-K instead
- ❌ Facilities without a long, level floor lane for drive-thru or dead-end setup
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the IWA-60-8500-HD-K Different
Multi-Axle Floor Alignment — No Vehicle Lift Required
Designed to measure long vehicles and vehicles with trailers directly on the shop floor, with high-resolution extended-range 3D tower cameras measuring up to four axles at once.
Included Turntables & Ramp Sets
HD turntables and drive-on floor ramp sets are included for quick, easy front-end alignments, along with drive-over cable plates for a drive-thru configuration.
Dynamic LED Tower Guide & Dual-Tower Range
A dynamic LED tower guide changes shape to guide the technician, and dual towers provide a maximum view range up to 50 ft. Wireless remote control operation is available when you can't reach the cabinet and keyboard.
Wheel Clamps & Targets
Includes 8 compact lightweight targets and 8 adjustable wheel clamps (15 in–27 in range) fitting most standard rim sizes, with convenient storage stands.
Mobile Cabinet & Included Electronics
The mobile cabinet allows side or front-centered placement for drive-thru or dead-end setup configurations. Computer, monitor, keyboard, mouse, and color printer are included, along with a steering wheel holder, brake depressor, and wheel chocks.
✅ Best For
- ✅ Medium/heavy-duty truck and trailer alignment shops
- ✅ Facilities needing to measure up to 4 axles in one alignment pass
- ✅ Shops that need drive-thru or dead-end floor alignment setup without a lift
❌ Not Ideal For
- ❌ Shops focused solely on passenger cars wanting a lighter, portable multi-bay aligner
- ❌ Facilities without adequate floor lane length for a drive-thru or dead-end configuration
IWA-60-8500-HD-K vs. iDEAL IWA-60-2000T-K — Which Wheel Aligner Fits Your Shop?
| Decision Point | IWA-60-8500-HD-K | IWA-60-2000T-K |
| Vehicle class | Medium/heavy-duty trucks & trailers | Passenger cars & light trucks |
| Setup type | Multi-axle floor system, no lift required | Portable multi-bay system |
| Ship weight | 1,300 lb | 465 lb |
| Best fit | Commercial/fleet truck & trailer shops | General automotive alignment bays |
Choose the IWA-60-8500-HD-K for medium/heavy-duty commercial vehicle alignment. Choose the IWA-60-2000T-K for passenger car and light-truck alignment work. Call (817) 865-3707 — we'll help you pick.
Full Specifications — IWA-60-8500-HD-K
| Model / Part Number | IWA-60-8500-HD-K |
| System Type | 3D HD multi-axle floor alignment system |
| Vehicle Class | Medium/heavy-duty trucks and trailers |
| Vehicle Lift Required | No |
| Camera View Range | Up to 50 ft (dual towers) |
| Axles Measured | Up to 4 at once |
| Wheel Clamps | 8 adjustable, 15 in–27 in range |
| Targets | 8 compact lightweight targets |
| Included Equipment | HD turntables, drive-on floor ramp sets, drive-over cable plates, wireless remote, steering wheel holder, brake depressor, wheel chocks, computer, monitor, keyboard, mouse, color printer |
| Setup Configurations | Drive-thru or dead-end via mobile cabinet |
| Software Updates | Optional yearly vehicle spec updates |
| Ship Weight | 1,300 lb |
⚠️ Installation Requirements
- Floor: Long, level floor lane sized for your drive-thru or dead-end configuration.
- Power: Standard shop electrical service for the cabinet, computer, monitor, and printer.
- Calibration: Initial setup and calibration should be performed per the installation manual; free technical video/phone support is available.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate setup.
iDEAL Warranty — IWA-60-8500-HD-K
The IWA-60-8500-HD-K carries the manufacturer's limited warranty as published by iDEAL/Tuxedo Distributors for this alignment system.
| Component | Coverage Term |
|---|---|
| Parts & labor (original purchase) | 1 year, limited |
| Initial setup / operational instructions | Free technical video and phone support |
| Software updates | Available on an annual basis |
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — IWA-60-8500-HD-K
Does the IWA-60-8500-HD-K price include shipping?
Yes. The advertised price includes delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Do I need a vehicle lift to use this aligner?
No — it's a multi-axle floor alignment system designed to measure long vehicles and vehicles with trailers without a lift.
How many axles can it measure at once?
Up to four axles at once, using high-resolution extended-range 3D tower cameras.
What is the warranty on the IWA-60-8500-HD-K?
1 year limited parts and labor, per the manufacturer's published warranty for this system.
Why Buy the IWA-60-8500-HD-K from Alamo Equipment & Service?
- Freight is included. The advertised price includes delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate installation and calibration of your aligner.
- We service it. Questions after delivery? Call (817) 865-3707.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
