iDEAL Low-Rise TL Pad Lift, 10,000 lb. Cap. #LR-10K-TLPAD
| Model / Part Number | LR-10K-TLPAD |
| Capacity | 10,000 lb |
| Type | Low-rise commercial pad lift (scissor) |
| Overall Length | 91 in |
| Overall Width | 88-5/8 in |
| Max Rise Height | 22-1/2 in (30-3/4 in w/ tall adapter) |
| Min Lift Height | 4-1/4 in |
| Power | 115V/220V, 20A, 1PH |
| Ship Weight | 1,262 lb |
- Solid, level concrete floor, max 2° slope, min 4-1/4 in thick, 3,000 PSI, steel reinforced
- No asphalt, wood, or other unstable surfaces — anchoring requires a proper concrete slab
- Minimum 6 in from any slab edge or seam; 6-1/2 in minimum hole-to-hole anchor spacing
- 115V or 220V, 20A, 1PH circuit for the power unit (220V option for faster lift speed)
- Power unit is not waterproof — indoor use only unless weatherproofed
- Confirm 91 in x 88-5/8 in surface-mount footprint clears your bay
- Leave a minimum 3 ft (1 m) clearance around the lift's outer perimeter
- Operating temp range 41°F–104°F (5°C–40°C)
iDEAL LR-10K-TLPAD — 10,000 lb Commercial Low-Rise Pad Lift

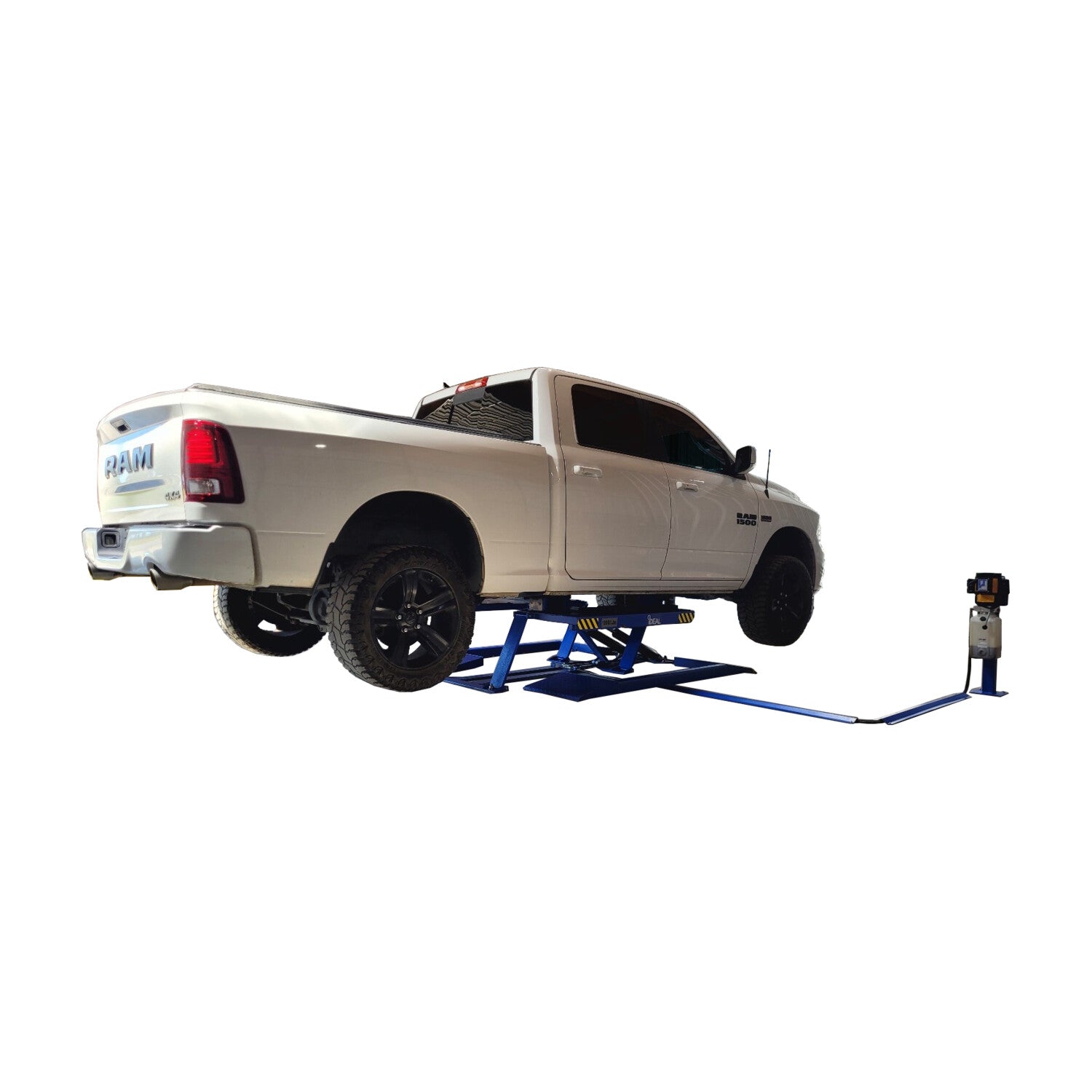

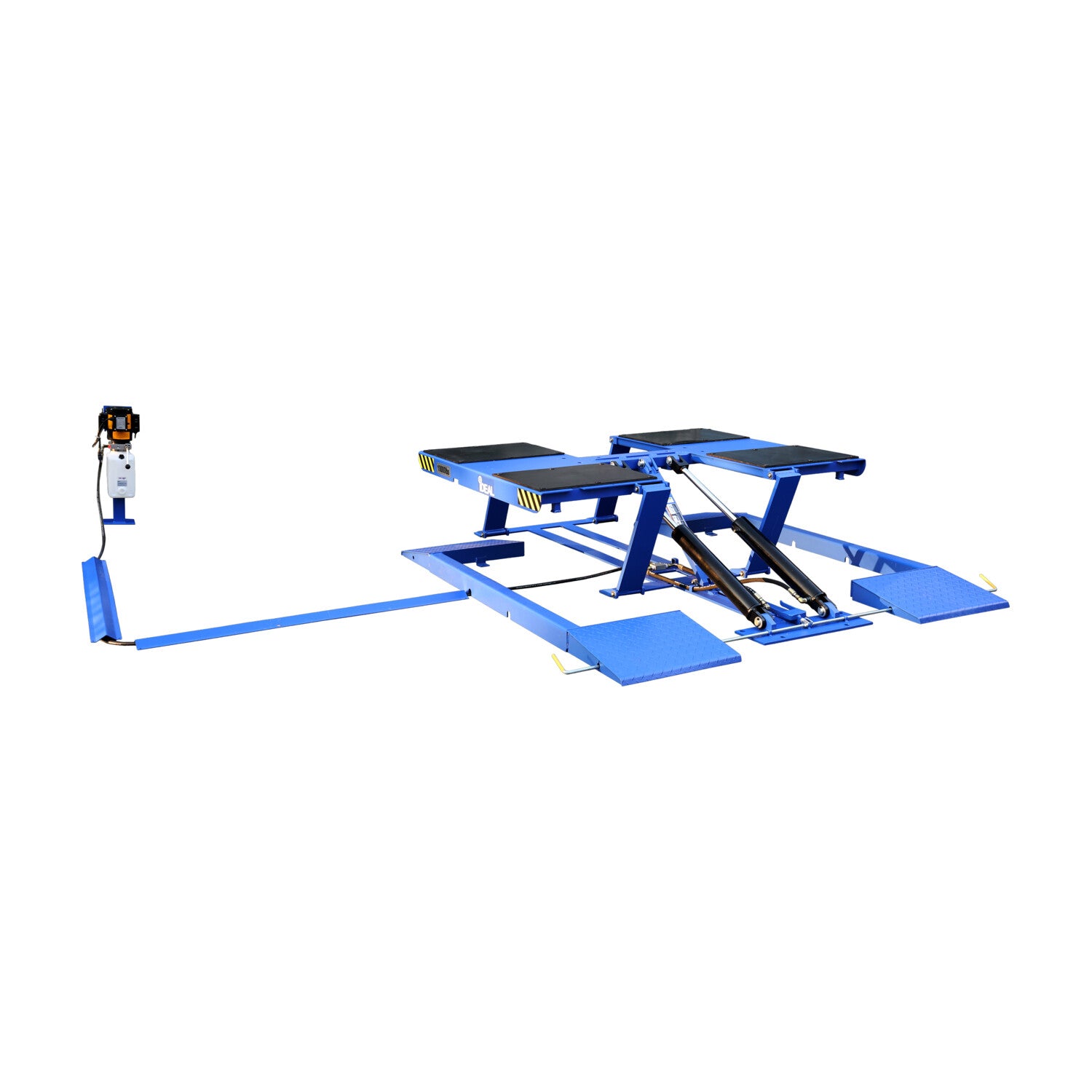

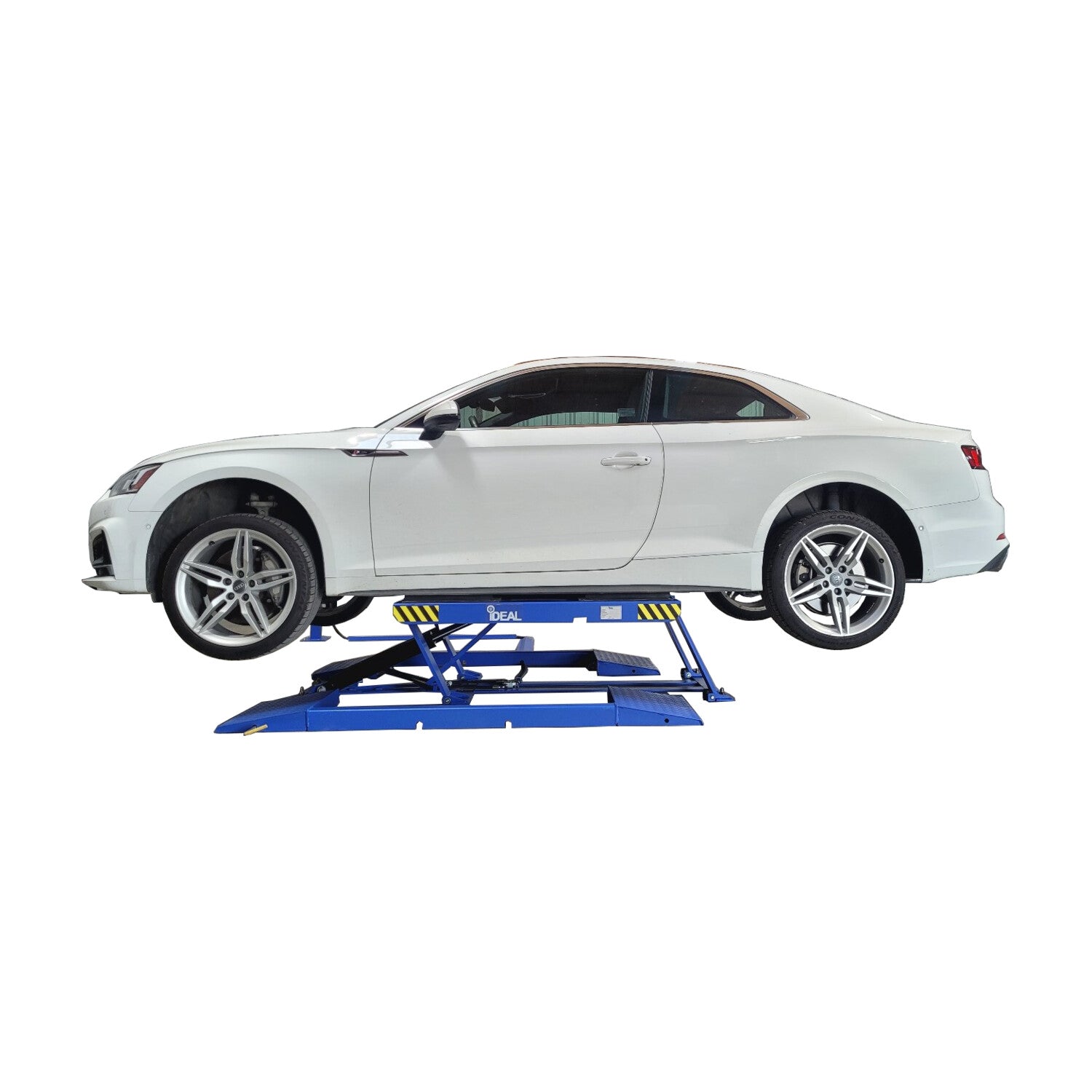

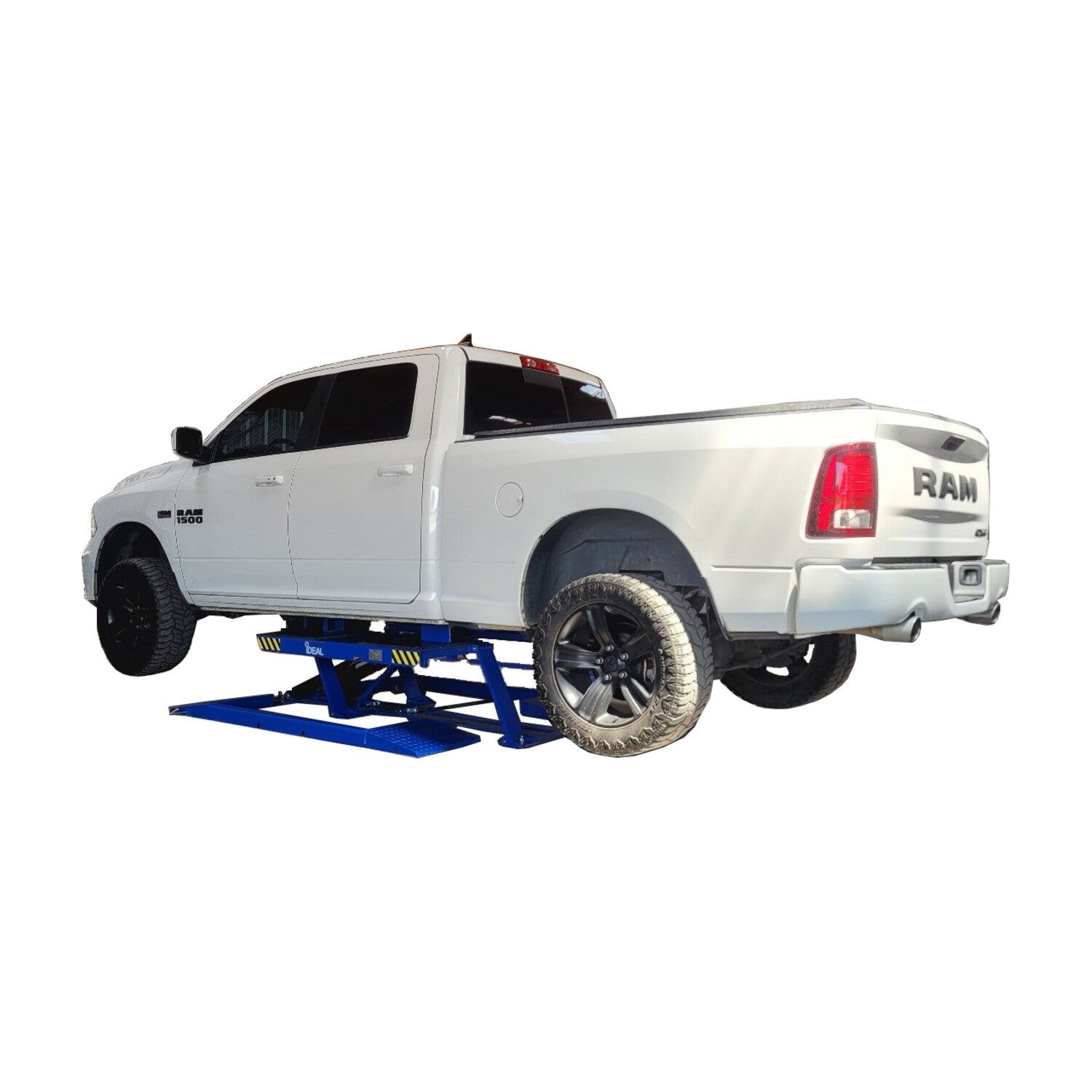

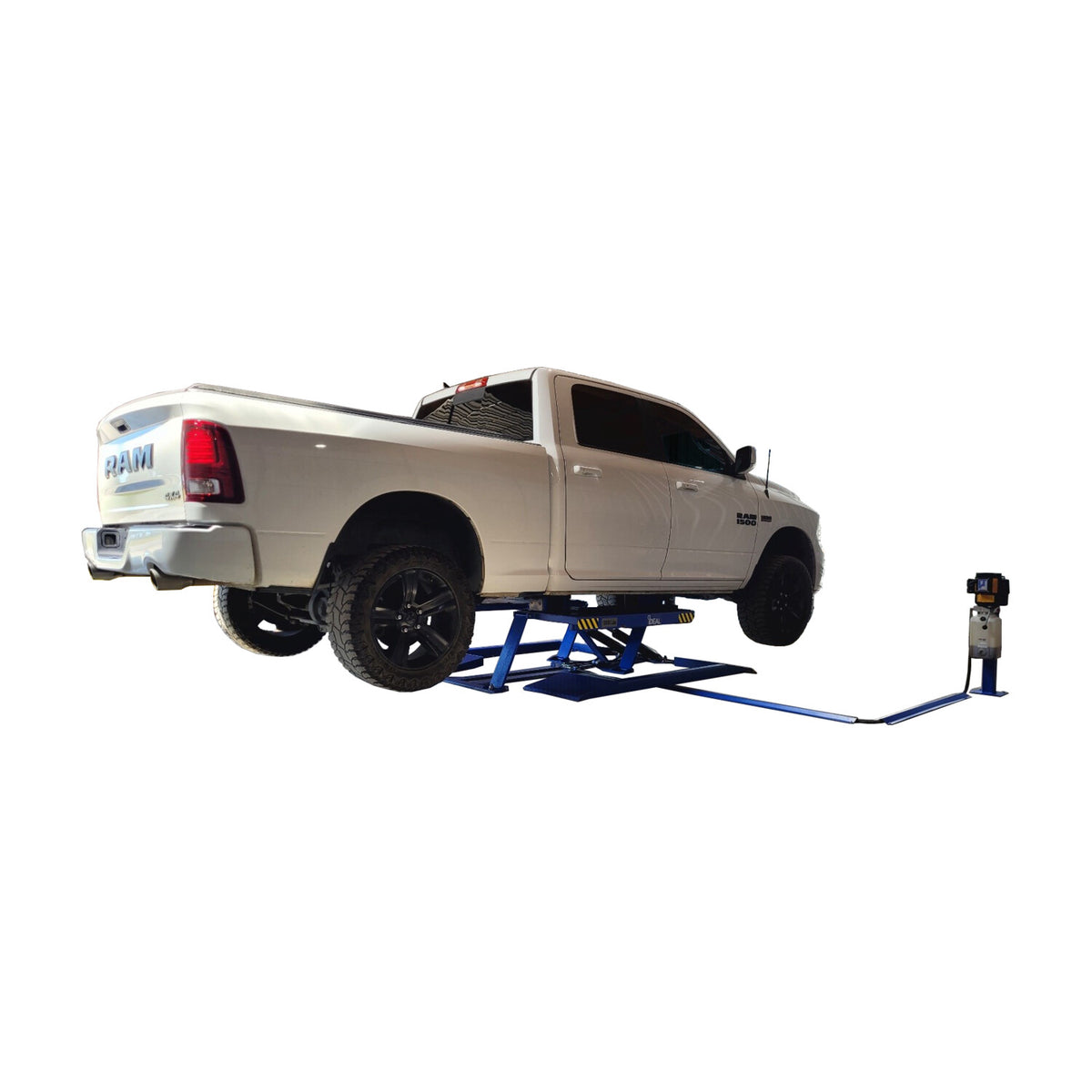

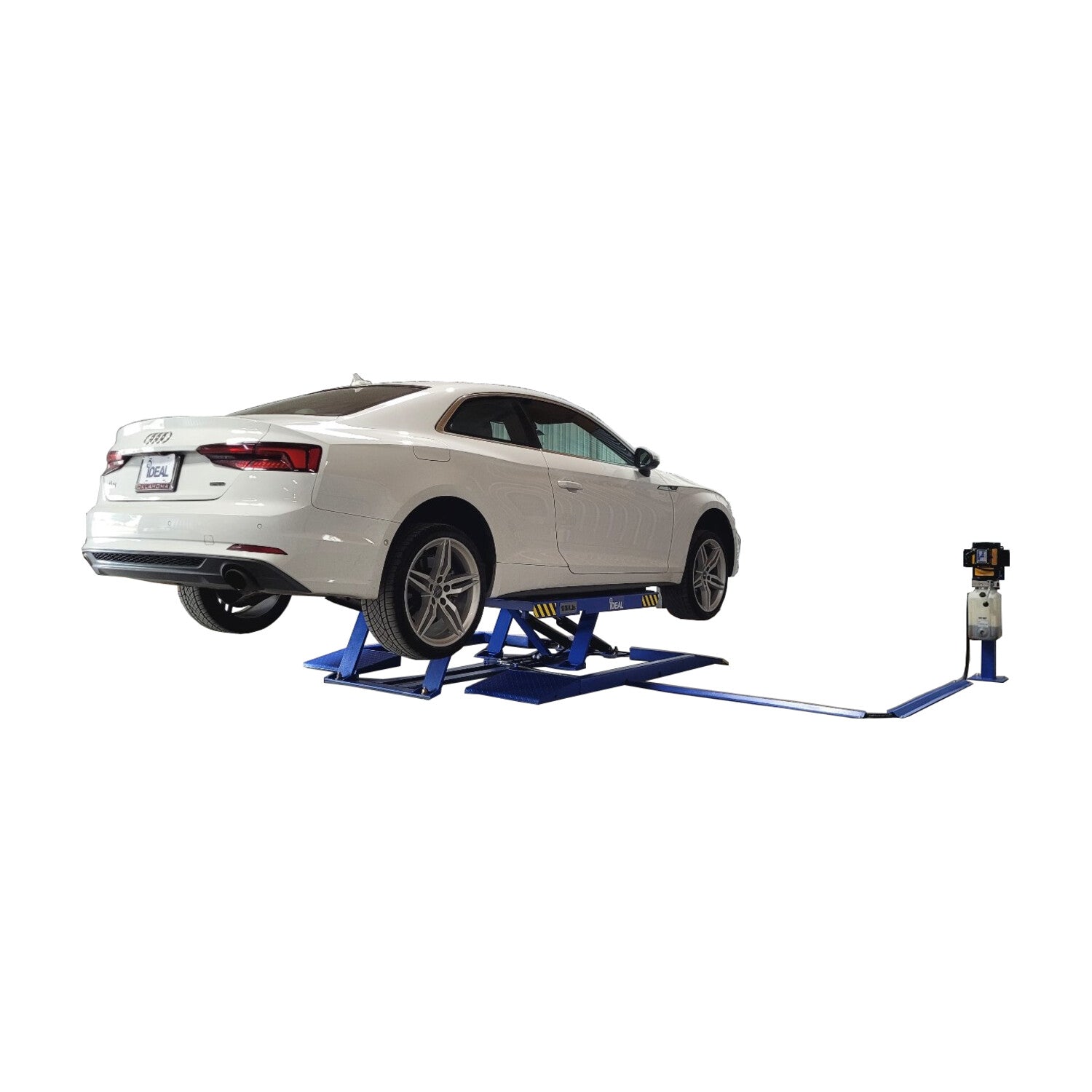

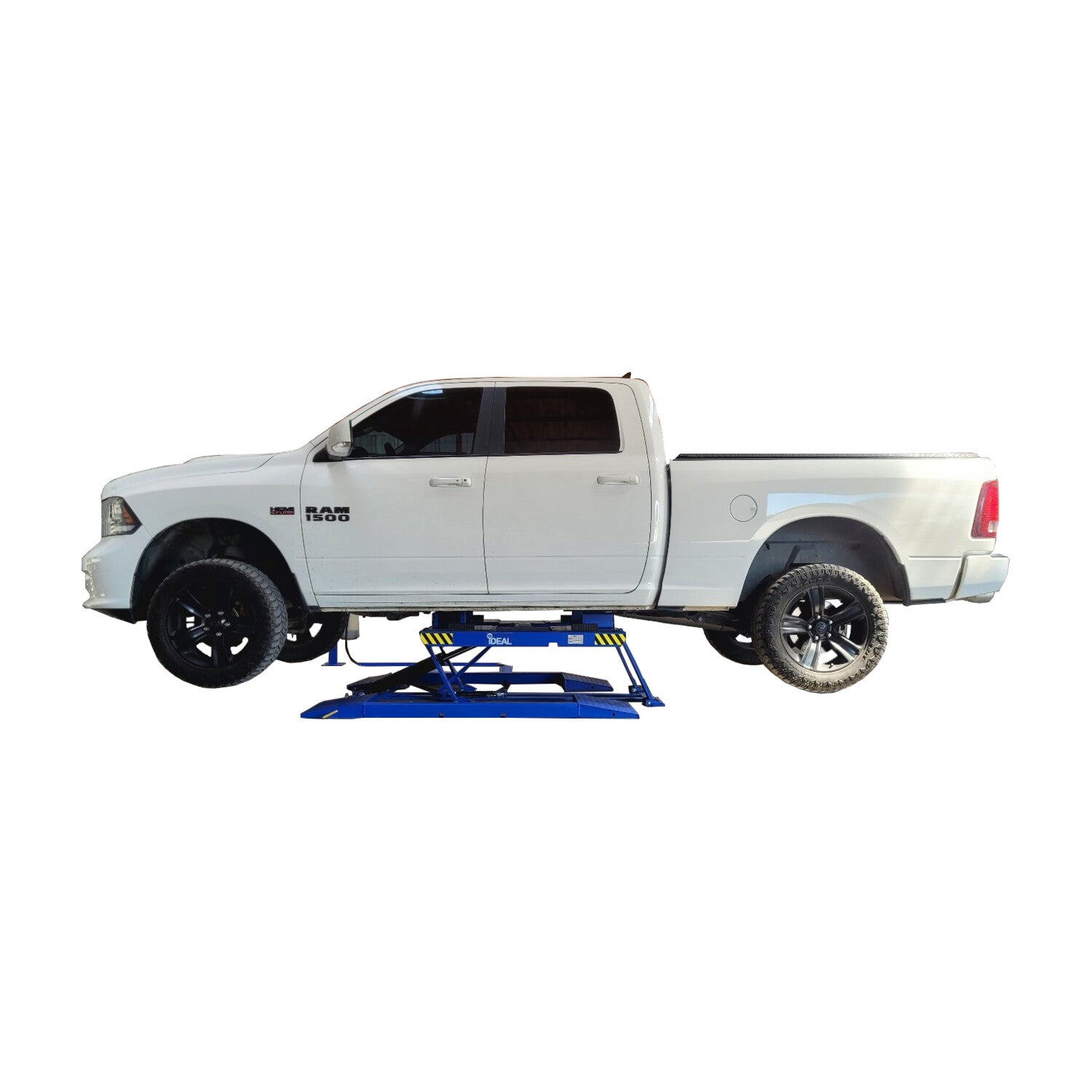

The iDEAL LR-10K-TLPAD is a 10,000 lb commercial-grade low-rise pad lift built for express tire and wheel service where speed and drive-on clearance matter more than full-vehicle lift height. It's a surface-mount install — no in-ground pit required — with an integrated outer frame and diamond-plate ramps that give drive-on/off clearance for wide vehicles.
Dual hydraulic lift cylinders raise the platform to a 22-1/2 in maximum rise (30-3/4 in with the optional tall adapter), locking at 13.5 in, 17.25 in, or 21.5 in. Latch release handles on each side let a tech release the lock from either side of the vehicle.
It ships standard with (4) HD multi-position height adapters, (4) 1.5 in rubber pads, metal hose covers, and a power unit pedestal stand; an optional 220V power unit is available for a faster lift cycle.
Who It's Built For
- ✅ Express tire and wheel service bays that need fast, repeatable low-rise lifting
- ✅ Shops that want a surface-mount lift without pouring a pit
- ✅ Wide-track vehicles needing the integrated ramp/frame clearance
What It's NOT Built For
- ❌ Loads over 10,000 lb
- ❌ Full-vehicle undercarriage service needing more than 30-3/4 in of rise — see a full-rise scissor or four-post lift instead
- ❌ Outdoor installation without weatherproofing the power unit
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the LR-10K-TLPAD Different
Surface Mount — No Pit Required
The LR-10K-TLPAD installs directly on a properly prepped concrete surface with anchors — no excavation or in-ground pit, which keeps installation cost and downtime lower than a recessed lift.
Built for Wide Vehicles

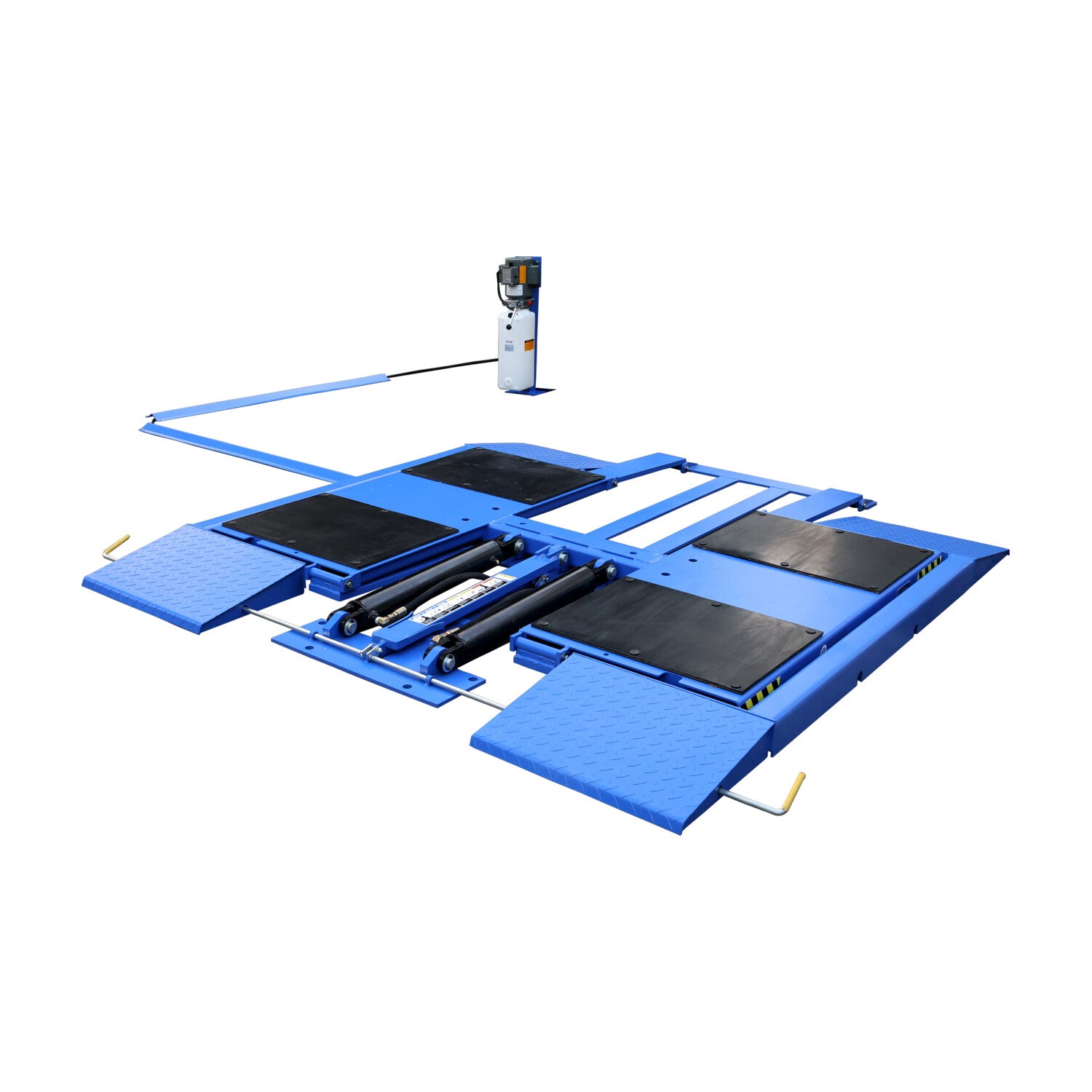

The integrated outer frame and diamond-plate ramps are sized to give drive-on and drive-off clearance for wide-track vehicles that can be tight to position on a narrower pad lift.
Latch Release from Either Side
Latch release handles on each side of the lift mean a tech doesn't have to walk around the vehicle to release the lock — useful in a fast-paced express-service bay.
Height Adapters Included
Standard (4) HD multi-position height adapters and (4) 1.5 in rubber pads are included, so you're not buying adapters separately to reach different pinch-weld or frame heights.
✅ Best For
- ✅ Express tire/wheel shops running high vehicle volume through a low-rise bay
- ✅ Shops that want to avoid the cost/downtime of pouring a lift pit
❌ Not Ideal For
- ❌ General service work needing full undercarriage access — a two-post or four-post lift gives more working height
- ❌ Outdoor bays without weatherproofing for the power unit
Full Specifications — LR-10K-TLPAD
| Model / Part Number | LR-10K-TLPAD |
| Capacity | 10,000 lb |
| Overall Length | 91 in |
| Overall Width | 88-5/8 in |
| Max Rise Height | 22-1/2 in |
| Min Lift Height | 4-1/4 in |
| Max Lift Height w/ Tall Adapter | 30-3/4 in |
| Platform Pad Length | 51-1/4 in |
| Platform Pad Width | 24 in |
| Platforms Outer Width | 70-3/4 in |
| Platforms Forward Movement | 15 in |
| Platform Locking Heights | 13.5 in, 17.25 in, 21.5 in |
| Lift Speed (115V / 220V) | 60 sec / 36 sec |
| Power | 115V or 220V, 20A, 1PH |
| Ship Weight | 1,262 lb |
| Included | (4) HD multi-position height adapters, (4) 1.5 in rubber pads, metal hose covers (2 x 55 in), power unit pedestal stand |
⚠️ Installation Requirements
- Floor: Solid, level concrete, max 2° slope, min 4-1/4 in thick, 3,000 PSI, steel reinforced. No asphalt or wood.
- Anchoring: Min 3-1/4 in anchor embedment, min 6 in from any slab edge/seam, min 6-1/2 in hole-to-hole spacing, anchors torqued to 130 ft-lbs.
- Electrical: 115V or 220V, 20A, 1PH circuit (220V option gives a faster lift cycle).
- Clearance: Minimum 3 ft (1 m) clearance around the lift's outer perimeter.
- Environment: Indoor use only unless weatherproofed — the power unit is not waterproof. Operating range 41°F–104°F (5°C–40°C).
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — LR-10K-TLPAD
The LR-10K-TLPAD is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (columns, legs, tracks, arms, carriages, cross rails, uprights, overhead beam, top rail beam, swivel pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — LR-10K-TLPAD
Does the LR-10K-TLPAD price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Does the LR-10K-TLPAD need a pit?
No — it's a surface-mount lift that anchors directly to a properly prepped concrete floor. No in-ground pit is required.
What's the maximum rise height?
22-1/2 in standard, or 30-3/4 in with the optional tall height adapter.
What is the LR-10K-TLPAD's warranty?
Tuxedo backs the LR-10K-TLPAD with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
