iDEAL Lift Table, Power Train / Air Hydraulic, 2,500 lbs #LT-PT2500AH-X
| Model / Part Number | LT-PT2500AH-X |
| Capacity | 2,500 lb |
| Type | Powertrain lift table (air/hydraulic) |
| Overall Length | 71.3 in |
| Overall Width | 33.5 in |
| Max Platform Height | 72 in |
| Min Platform Height | 35 in |
| Power | 90–125 PSI compressed air |
| Ship Weight | 798 lb |
- Portable unit on locking casters — no anchoring or dedicated slab required
- Level indoor shop floor rated for a loaded 798 lb+ unit
- Indoor use only
- Shop compressed air line, 90–125 PSI (6–9 bar)
- Confirm your compressor keeps up with the air-hydraulic pump under load
- Confirm 71.3 in x 33.5 in footprint clears your aisle/bay
- Allow room for the 5.2 in platform length extension and tilt swing
- Ships via LTL freight, crated
iDEAL LT-PT2500AH-X — 2,500 lb Powertrain Lift Table
The iDEAL LT-PT2500AH-X is a 2,500 lb portable, high-rise powertrain lift table built to safely remove, replace, or service heavy vehicle powertrain components — engines, transmissions, drive-axle and transaxle assemblies — without a shop crane. The multi-adjustable powertrain platform extends from 31.5 in to 36.7 in and tilts 6° to 8° to line components up with the vehicle for reinstall.

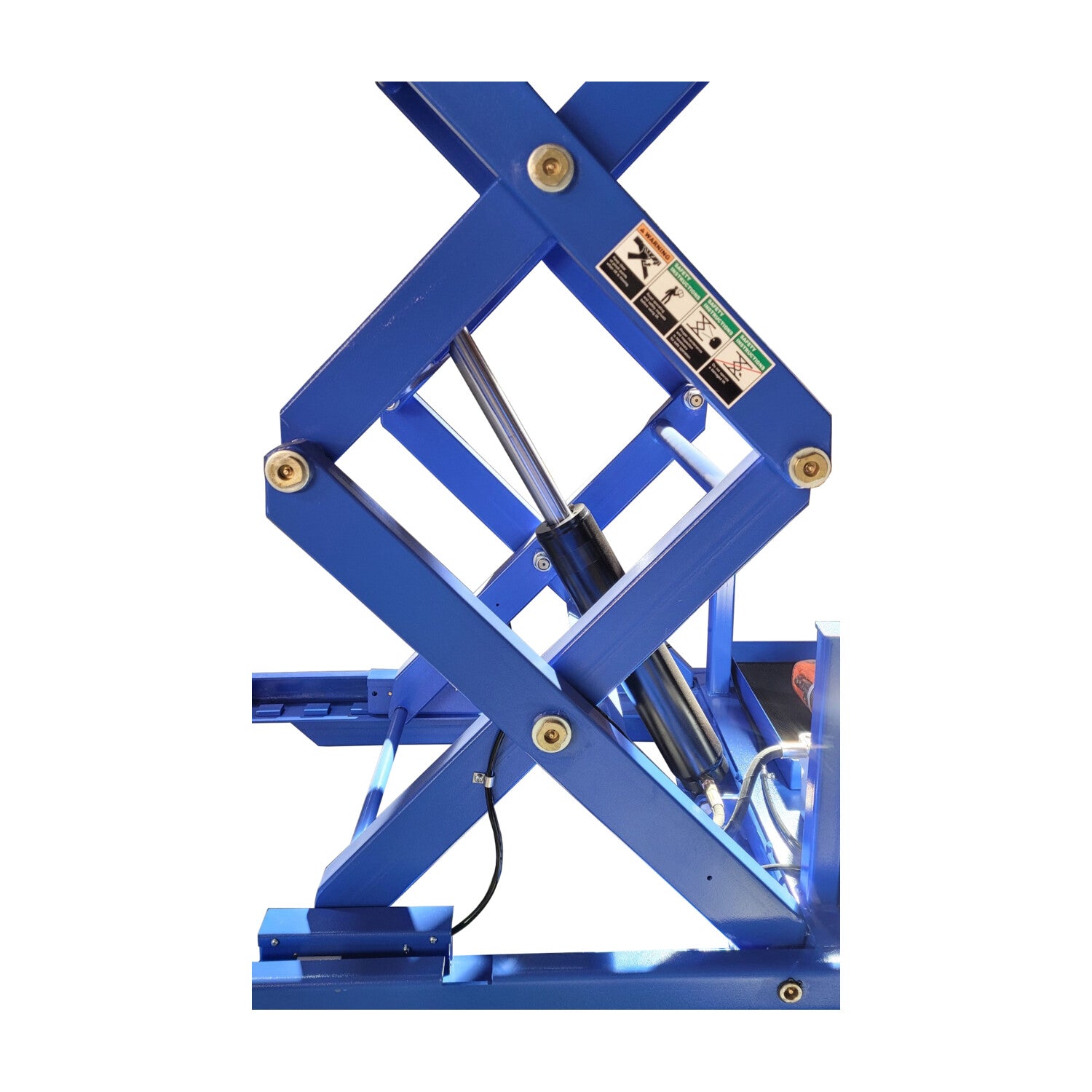

Power comes from a shop air line (90–125 PSI) driving a double-scissor hydraulic lift, controlled through a fully operational pneumatic hand-operated stainless-steel control panel with an integrated air gauge and water separator. The platform locks at 49 in, 61 in, or 68 in, with a 72 in maximum and 35 in minimum height.
It ships standard with locking swivel/directional poly casters, a tool tray, a removable hand bar, tie-down anchors, and a heavy-duty ratchet strap — everything needed to roll a heavy component into place, lock it, and work safely underneath.
Who It's Built For
- ✅ Shops already running compressed air who want a portable powertrain table without adding electrical infrastructure
- ✅ Techs pulling/reinstalling engines, transmissions, transaxles, or drive-axle assemblies
- ✅ Shops needing tilt + extendable-length platform adjustment to line components up precisely
What It's NOT Built For
- ❌ Loads over 2,500 lb
- ❌ Shops without a compressed air line — see the 12VDC battery-powered LT-PT3300DC-X instead
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the LT-PT2500AH-X Different
Multi-Adjustable Powertrain Platform

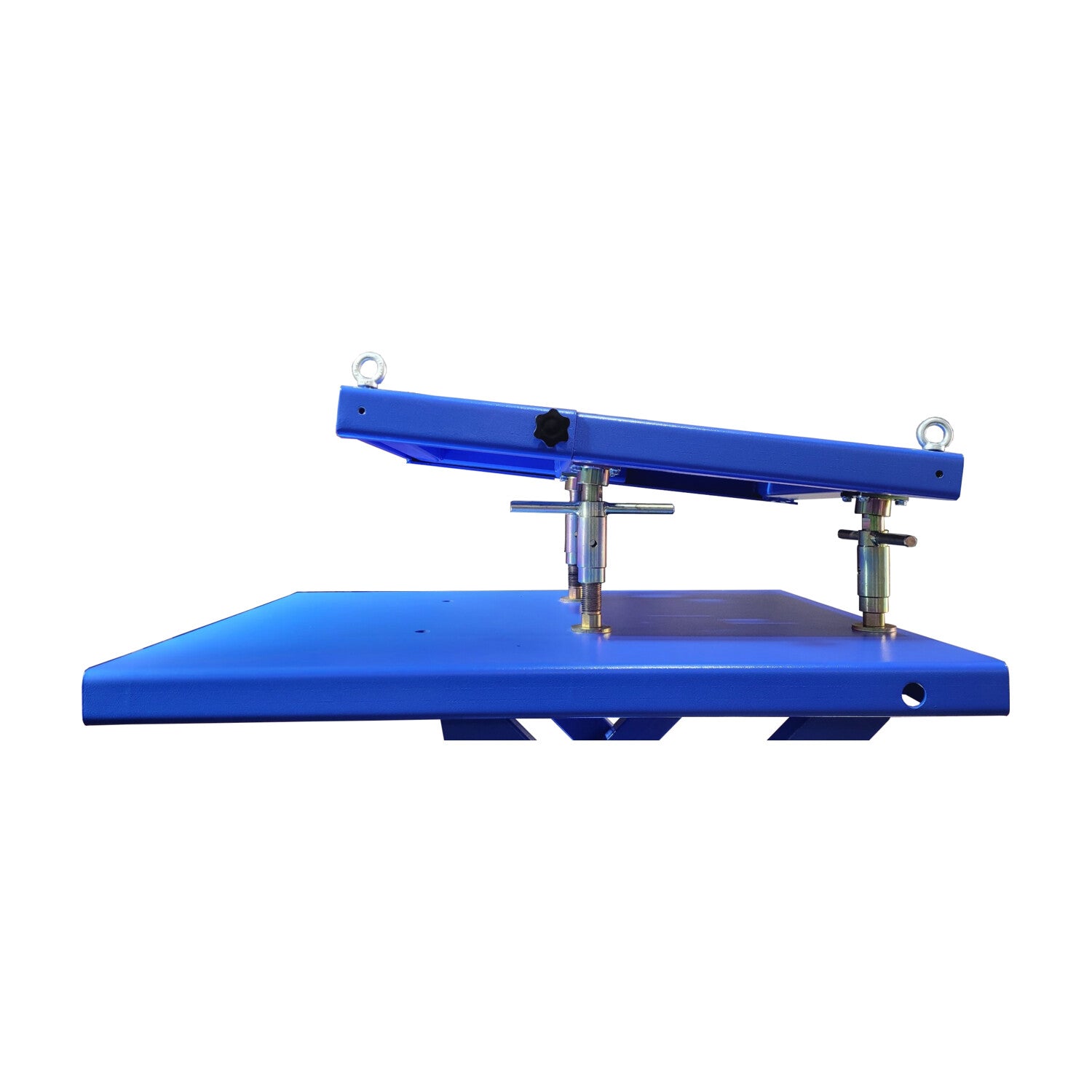

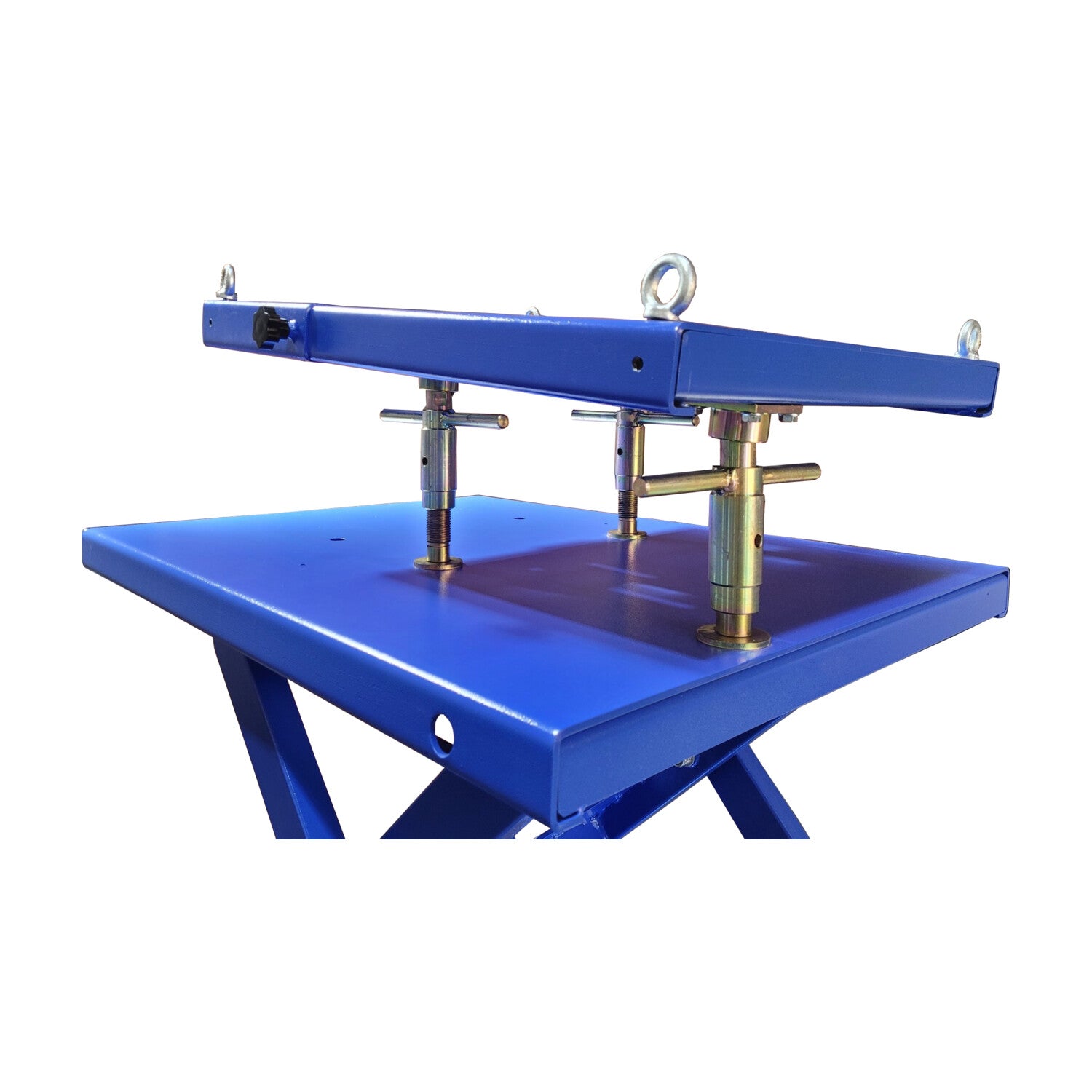

The platform extends from 31.5 in to 36.7 in (5.2 in of adjustment) and tilts 6° to 8° via heavy-duty jack screws, so you can angle a transmission or transaxle to match the vehicle's mounting angle instead of fighting it level.
Pneumatic Control with Integrated Water Separator

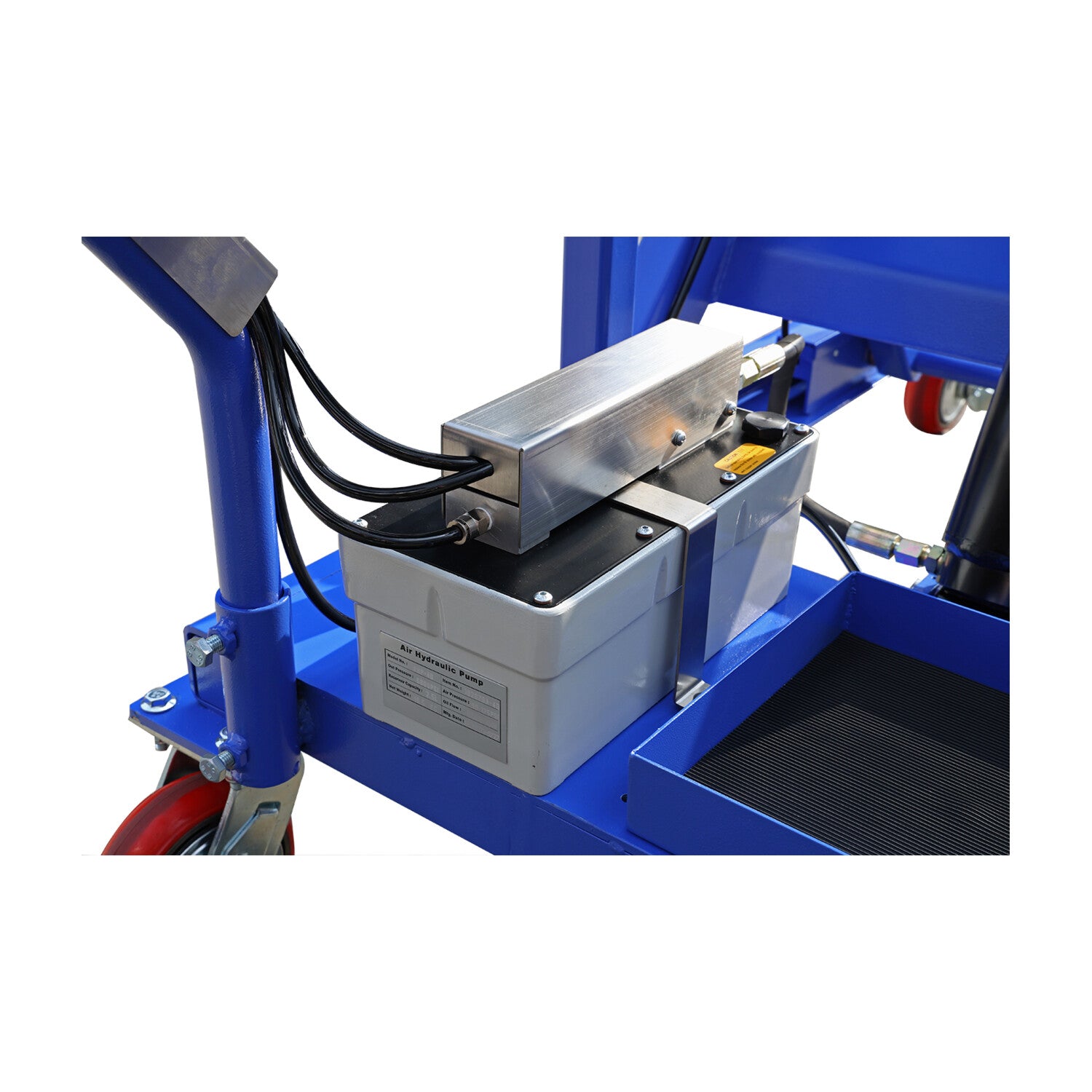

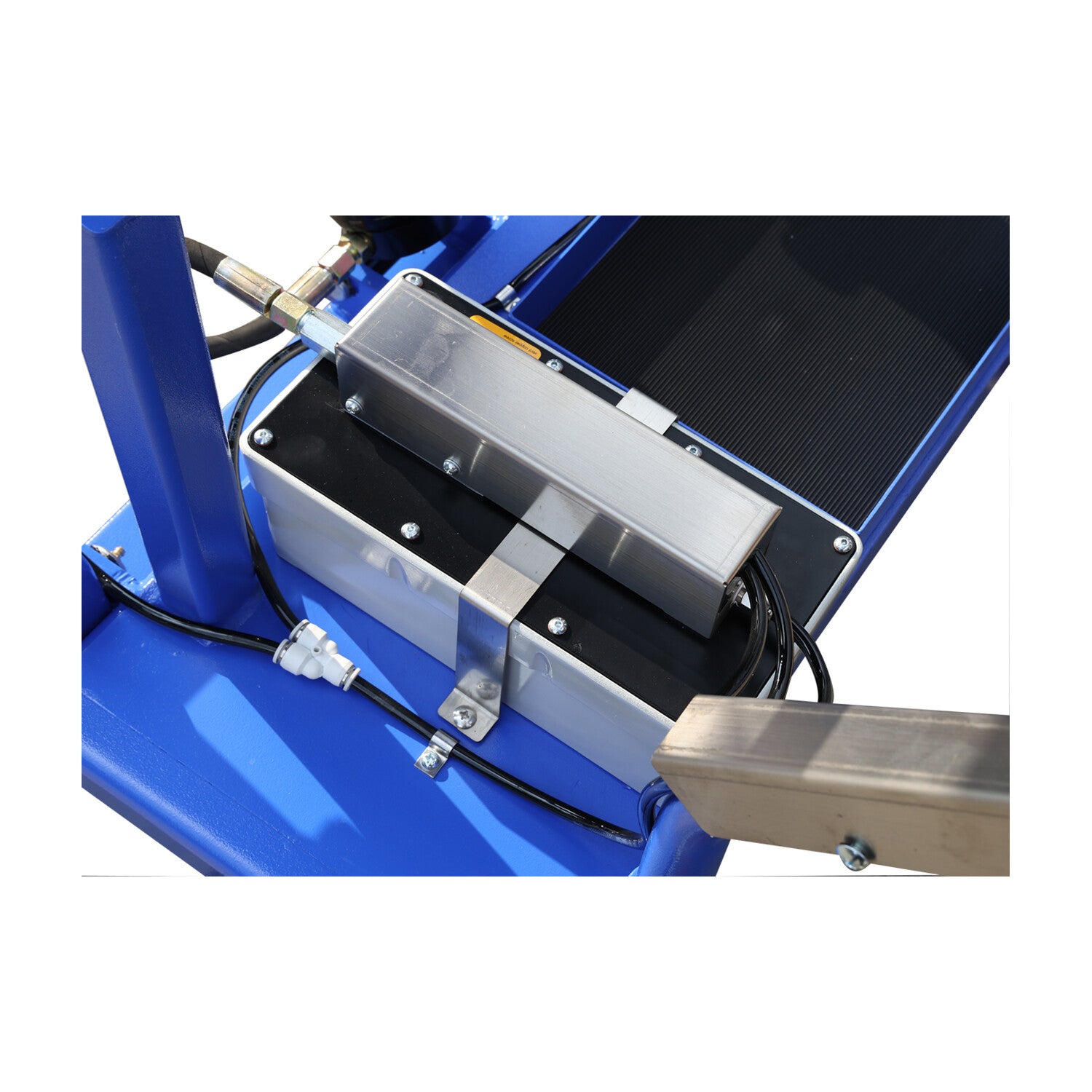

The stainless-steel control panel gives full hand control over lifting, locking, and lowering, with an integrated air gauge and water separator to keep moisture out of the hydraulic circuit.
Three Locking Heights, No Guessing
Mechanical locks at 49 in, 61 in, and 68 in hold the platform securely at a working height — you're not relying on hydraulic pressure alone to hold a heavy component in place.
Rolls Where You Need It

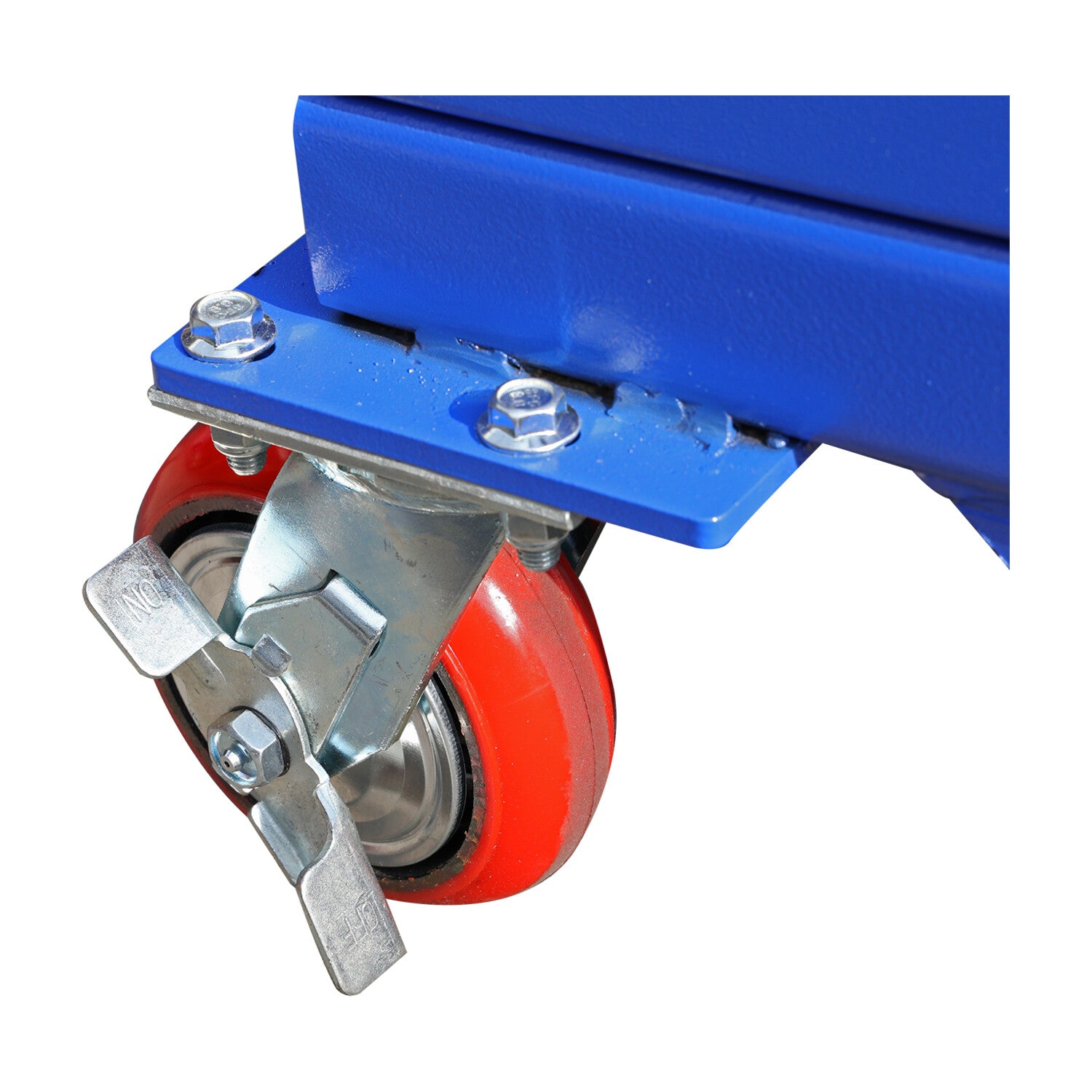

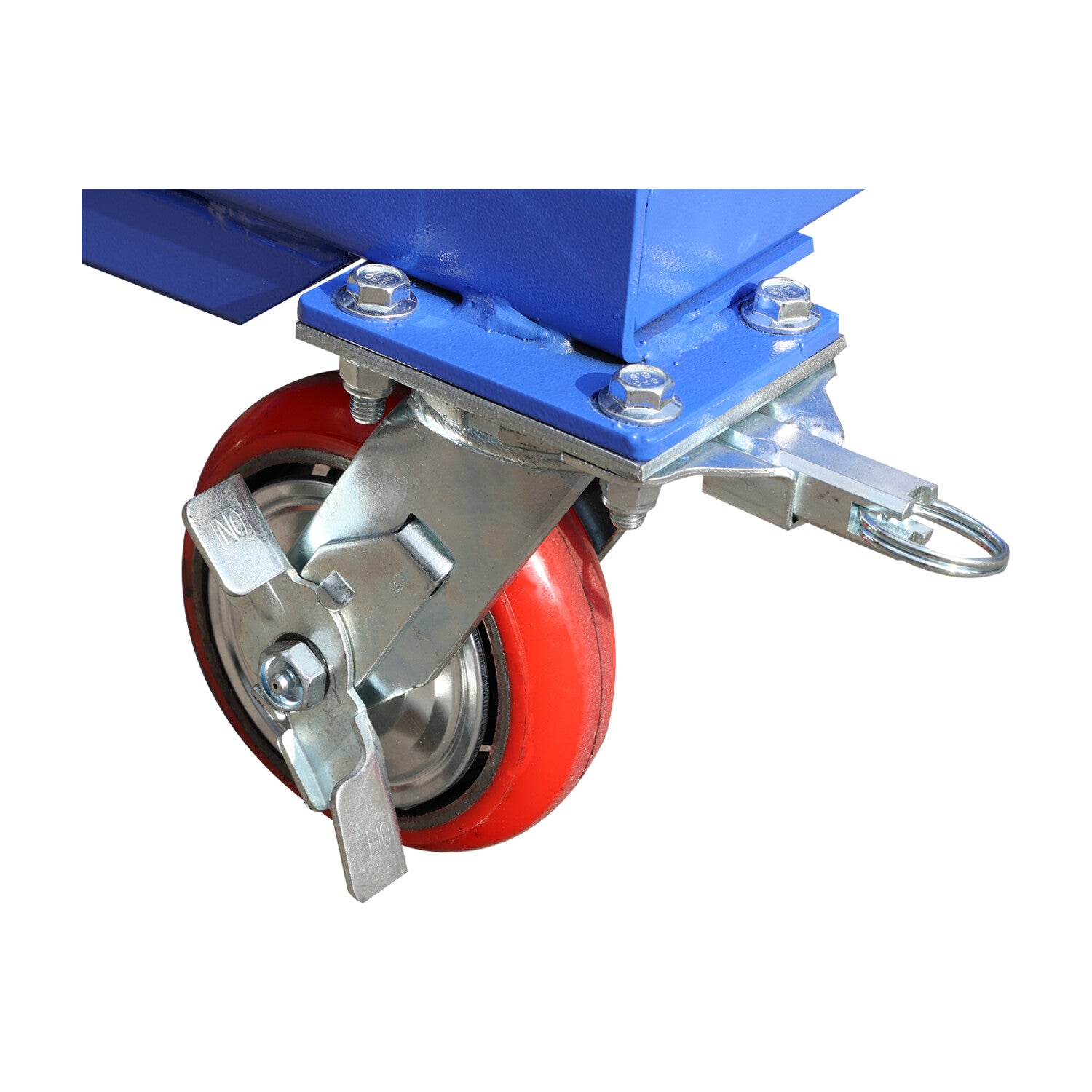

Locking swivel and directional poly casters let you position the loaded platform precisely under the vehicle, then lock it down before you start work.
LT-PT2500AH-X vs. LT-PT3300DC-X — Air or Battery Power?
Same powertrain-platform concept, genuinely different power source and capacity.
| Decision Point | LT-PT2500AH-X (this product) | LT-PT3300DC-X |
|---|---|---|
| Capacity | 2,500 lb | 3,300 lb |
| Power source | 90–125 PSI compressed air | 12VDC deep-cycle battery + electric-hydraulic |
| Lift / lower rate | 72s / 33s | 20s / 22s (faster, DC electric) |
| Mobility base | Locking swivel/directional poly casters | Pallet-jack dolly with poly casters |
| Ship weight | 798 lb | 908 lb |
Choose the LT-PT2500AH-X if your shop already runs compressed air. Choose the LT-PT3300DC-X if you want cordless/hose-less operation, higher capacity, and faster lift speed. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — LT-PT2500AH-X
| Model / Part Number | LT-PT2500AH-X |
| Capacity | 2,500 lb |
| Overall Length | 71.3 in |
| Overall Width | 33.5 in |
| Max Platform Height | 72 in |
| Min Platform Height | 35 in |
| Hand Bar Height | 39.2 in |
| Platform Adjustable Size (L x W) | 31.5 in – 36.7 in x 23.6 in |
| Platform Tilt Angle | 6° to 8° |
| Platform Locking Heights | 49 in, 61 in, 68 in |
| Lifting / Lowering Rate | 72 sec / 33 sec |
| Power Supply | 90–125 PSI compressed air (6–9 bar) |
| Ship Weight | 798 lb |
| Included | Locking swivel/directional poly casters, tool tray, removable hand bar, tie-down anchors, heavy-duty ratchet strap |
⚠️ Installation Requirements
- Floor: Level indoor shop floor rated for a loaded unit — this is a portable, caster-mounted table, no anchoring required.
- Air supply: Shop compressed air line, 90–125 PSI (6–9 bar).
- Bay footprint: Confirm 71.3 in x 33.5 in footprint plus room for the platform's tilt and length extension.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — LT-PT2500AH-X
The LT-PT2500AH-X is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (columns, legs, tracks, arms, carriages, cross rails, uprights, overhead beam, top rail beam, swivel pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — LT-PT2500AH-X
Does the LT-PT2500AH-X price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Does the LT-PT2500AH-X need shop compressed air?
Yes — it runs on 90–125 PSI shop air through a pneumatic hand-operated control panel with an integrated air gauge and water separator. If you don't have shop air, the 12VDC battery-powered LT-PT3300DC-X doesn't need it.
What's the difference between the LT-PT2500AH-X and LT-PT3300DC-X?
The LT-PT3300DC-X is a higher-capacity (3,300 lb) 12VDC battery/electric-hydraulic version with a pallet-jack dolly base and a faster 20s/22s lift/lower rate. The LT-PT2500AH-X runs on 90–125 PSI shop air at 2,500 lb capacity.
What is the LT-PT2500AH-X's warranty?
Tuxedo backs the LT-PT2500AH-X with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
