iDEAL Lift Table, Power Train / DC Battery, 3,300 lbs #LT-PT3300DC-X
| Model / Part Number | LT-PT3300DC-X |
| Capacity | 3,300 lb |
| Type | Powertrain lift table (12VDC battery / electric-hydraulic) |
| Overall Length | 65.2 in |
| Overall Width | 33.5 in |
| Max Platform Height | 72 in |
| Min Platform Height | 35 in |
| Power | 12VDC battery, 110VAC charger |
| Ship Weight | 908 lb |
- Portable unit on a pallet-jack dolly base — no anchoring or dedicated slab required
- Level indoor shop floor rated for a loaded 908 lb+ unit
- Indoor use only — not rated for explosion-hazard areas or spaces
- 12VDC deep-cycle sealed battery with integrated charger — no shop air needed
- 110VAC, 1.5A, 1PH outlet for recharging the battery charger
- Confirm 65.2 in x 33.5 in footprint clears your aisle/bay
- Allow room for the 5.2 in platform length extension and tilt swing
- Ships via LTL freight, crated

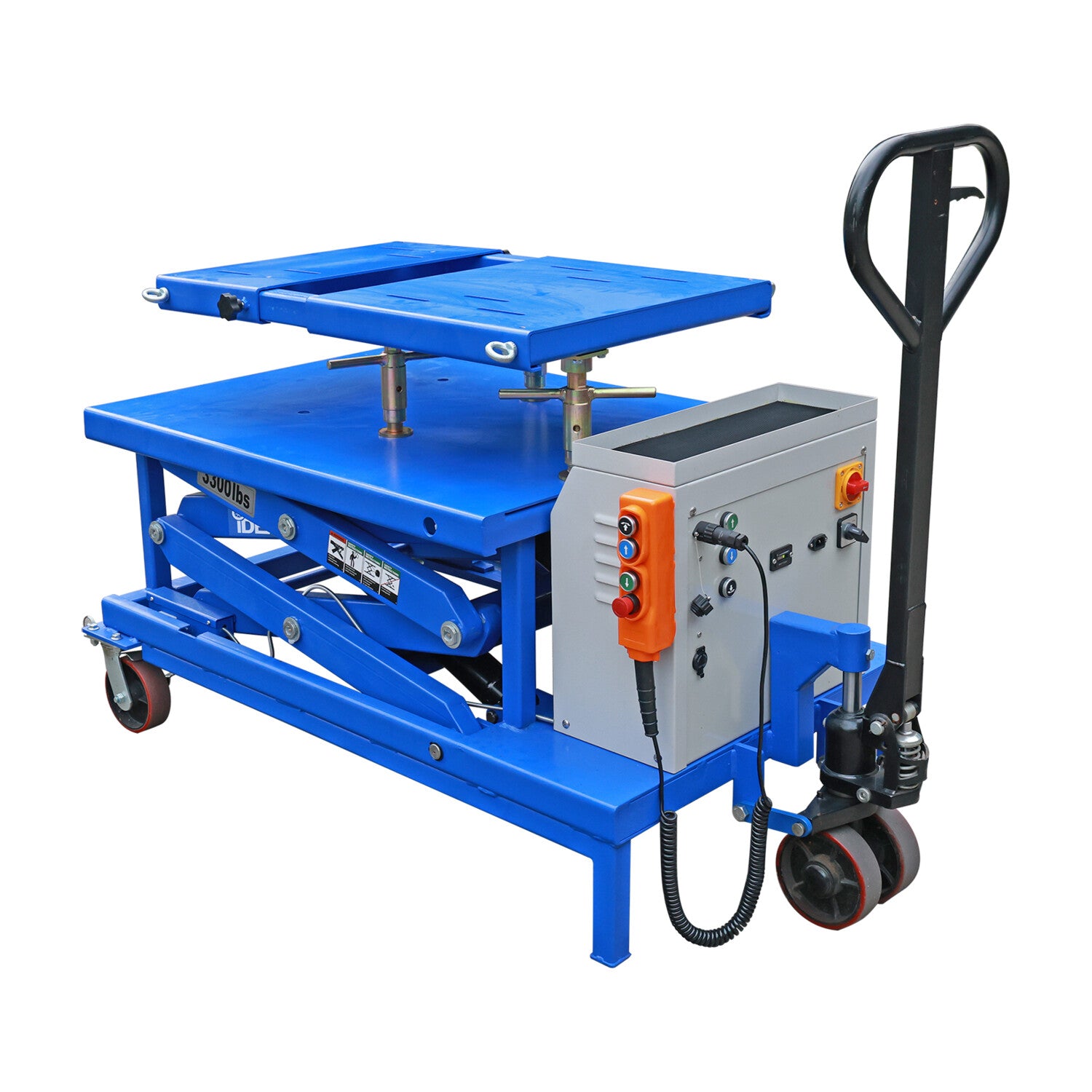

iDEAL LT-PT3300DC-X — 3,300 lb Powertrain Lift Table
The iDEAL LT-PT3300DC-X is a 3,300 lb portable, high-rise powertrain lift table powered by a 12VDC deep-cycle battery instead of shop air or a wall outlet — no compressor and no dedicated 110V circuit required at the point of use. It's built for the same job as the LT-PT2500AH-X (safely removing, replacing, or servicing heavy engines, transmissions, drive-axles, and transaxles) at a higher capacity and with faster, DC-electric lift/lower speeds.

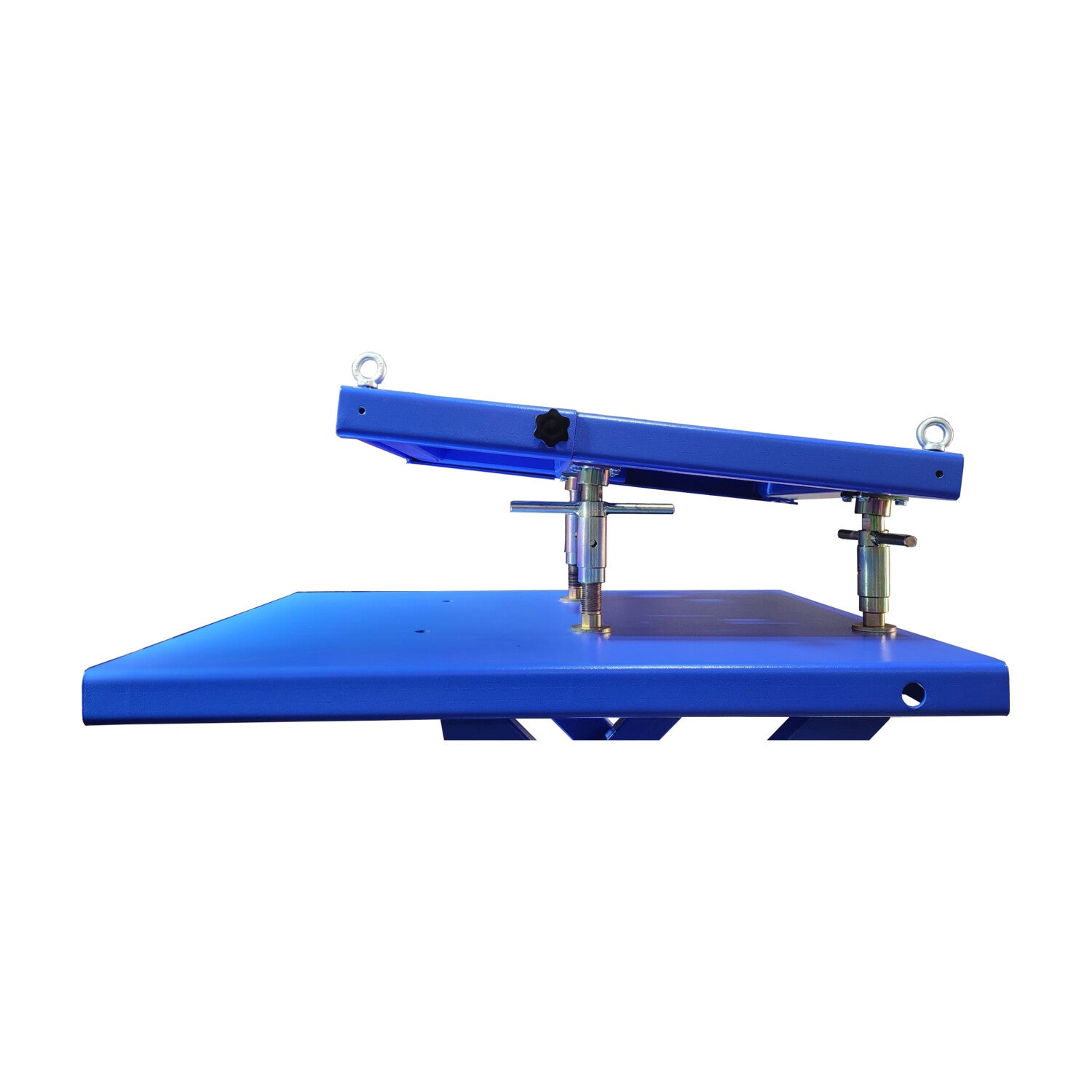

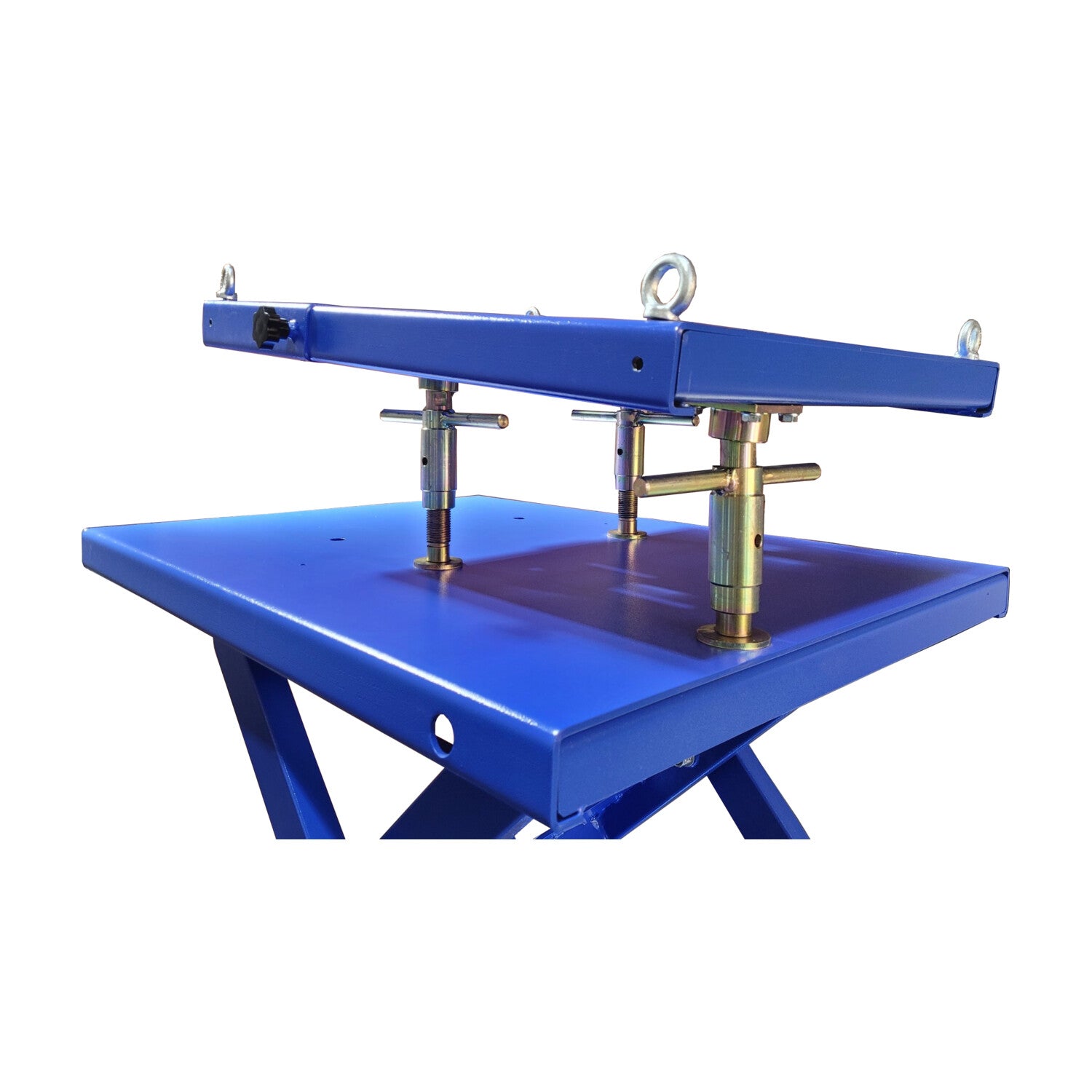

The multi-adjustable powertrain platform extends from 31.5 in to 36.7 in and tilts 6° to 8°, locking at 49 in, 61 in, or 68 in. A fully operational remote hand controller plus control-box panel buttons give dual points of control while you're positioning a component.
It ships standard on a pallet-jack dolly base with multi-directional poly casters, front locking swivel casters, leg support stands, a tool tray, tie-down anchors, and a heavy-duty ratchet strap, plus the integrated 12VDC battery, charger, and auxiliary outlet port.
Who It's Built For
- ✅ Shops without a compressed air line who still want a powered powertrain table (no manual pumping)
- ✅ Mobile techs or shops that move the table between bays without hoses or cords in the way
- ✅ Heavier engine/transmission R&R jobs up to 3,300 lb
What It's NOT Built For
- ❌ Loads over 3,300 lb
- ❌ Explosion-hazard areas or spaces — not rated for that use per the manufacturer's manual
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the LT-PT3300DC-X Different
Cordless, Hoseless Operation
A 12VDC deep-cycle sealed battery with an integrated charger and auxiliary outlet port means no compressed air line and no wall cord to route or trip over while you're maneuvering a heavy component.
Faster Lift and Lower
The DC electric motor and hydraulic pump lift and lower at 20 seconds / 22 seconds — noticeably faster than the LT-PT2500AH-X's air-hydraulic 72s/33s cycle, since you're not waiting on shop air volume.
Pallet-Jack Dolly Mobility

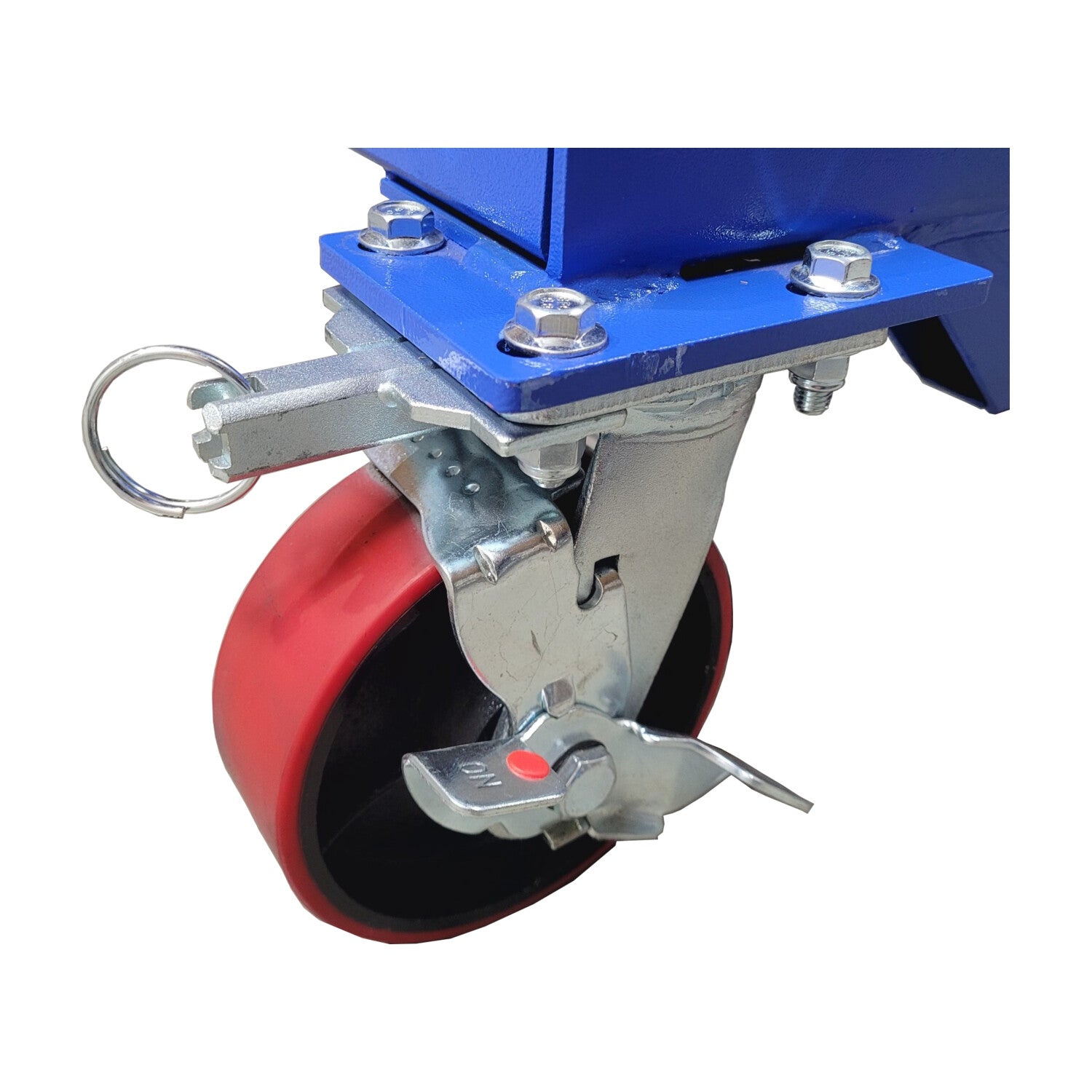

The pallet-jack dolly base with multi-directional poly casters and front locking swivel/directional casters makes it easier to roll a heavy loaded platform into precise position, then lock it down.
Dual Control Points

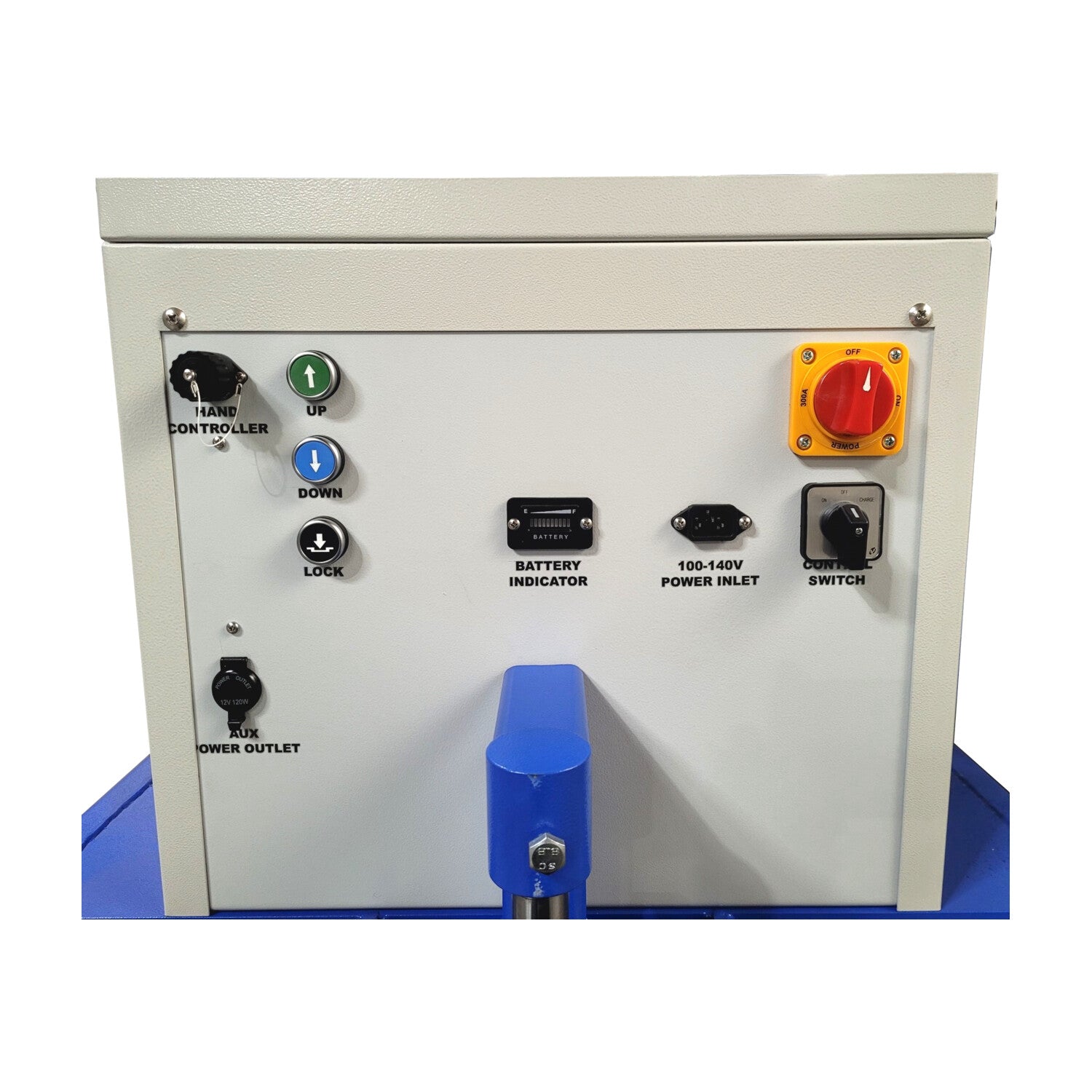

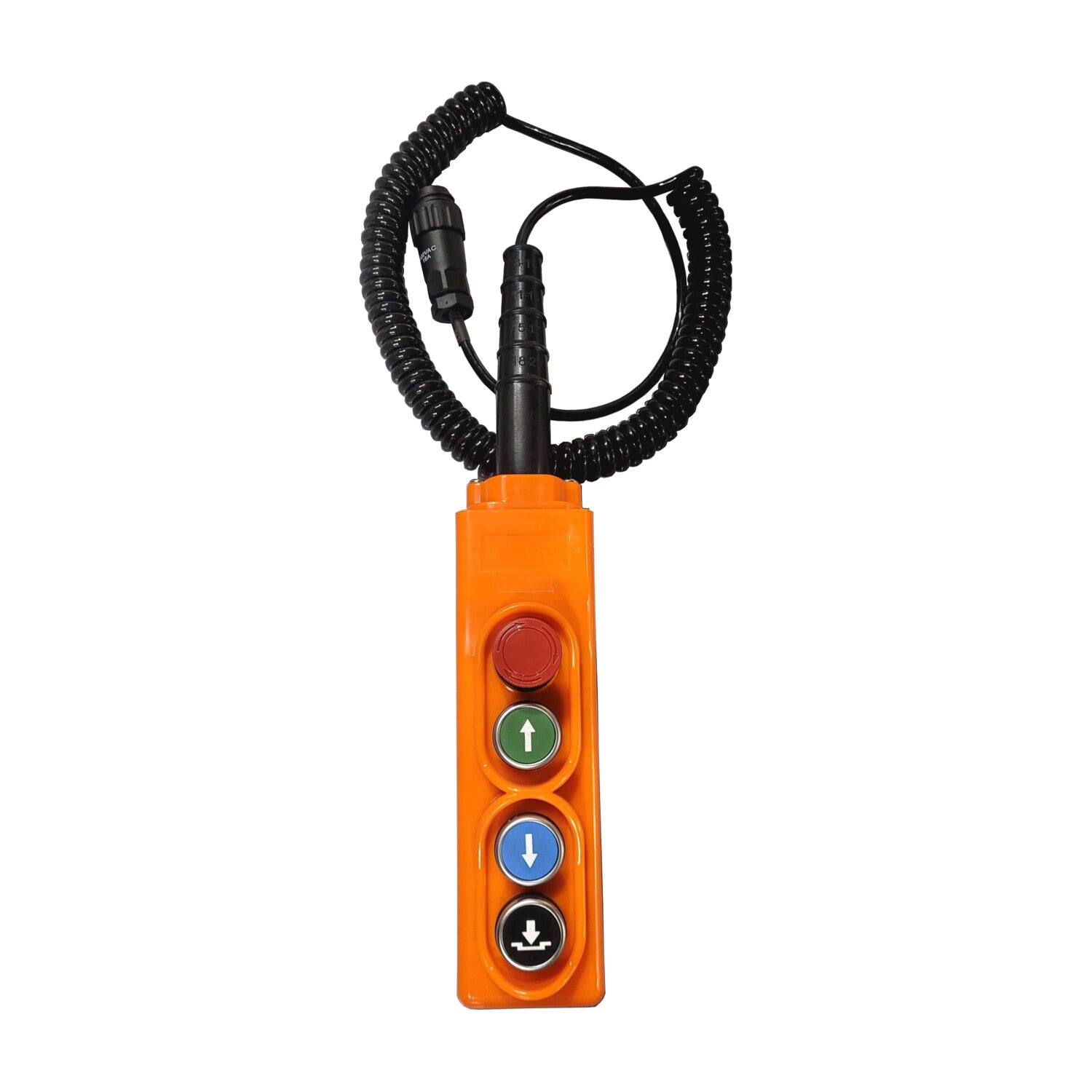

A remote hand controller plus control-box panel buttons give you a choice of control location depending on where you're standing during the lift.
✅ Best For
- ✅ Shops without compressed air who want cordless, battery-powered lifting
- ✅ Heavier jobs up to 3,300 lb needing faster cycle times
❌ Not Ideal For
- ❌ Shops that prefer to avoid battery maintenance/charging — the air-hydraulic LT-PT2500AH-X needs no battery
- ❌ Explosion-hazard areas or spaces
LT-PT3300DC-X vs. LT-PT2500AH-X — Battery or Air Power?
Same powertrain-platform concept, genuinely different power source and capacity.
| Decision Point | LT-PT3300DC-X (this product) | LT-PT2500AH-X |
|---|---|---|
| Capacity | 3,300 lb | 2,500 lb |
| Power source | 12VDC deep-cycle battery + electric-hydraulic | 90–125 PSI compressed air |
| Lift / lower rate | 20s / 22s (faster, DC electric) | 72s / 33s |
| Mobility base | Pallet-jack dolly with poly casters | Locking swivel/directional poly casters |
| Ship weight | 908 lb | 798 lb |
Choose the LT-PT3300DC-X if you want cordless/hoseless operation, higher capacity, and faster lift speed. Choose the LT-PT2500AH-X if your shop already runs compressed air. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — LT-PT3300DC-X
| Model / Part Number | LT-PT3300DC-X |
| Capacity | 3,300 lb |
| Overall Length | 65.2 in |
| Overall Width | 33.5 in |
| Max Platform Height | 72 in |
| Min Platform Height | 35 in |
| Dolly Hand Bar Height | 47.2 in |
| Platform Adjustable Size (L x W) | 31.5 in – 36.7 in x 23.6 in |
| Platform Tilt Angle | 6° to 8° |
| Platform Locking Heights | 49 in, 61 in, 68 in |
| Lifting / Lowering Rate | 20 sec / 22 sec |
| Power Supply (Battery Charger) | 110VAC, 1.5A, 1PH |
| DC Power Unit | 12VDC, 120A, 2.15HP |
| Ship Weight | 908 lb |
| Included | Pallet jack dolly w/ poly casters, leg support stands, tool tray, remote hand controller, tie-down anchors, heavy-duty ratchet strap, integrated battery + charger |
⚠️ Installation Requirements
- Floor: Level indoor shop floor rated for a loaded unit — this is a portable, dolly-mounted table, no anchoring required.
- Power: 110VAC, 1.5A, 1PH outlet to recharge the integrated 12VDC battery.
- Bay footprint: Confirm 65.2 in x 33.5 in footprint plus room for the platform's tilt and length extension.
- Use restriction: Not permitted in explosion-hazard areas or spaces per the manufacturer's manual.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — LT-PT3300DC-X
The LT-PT3300DC-X is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (columns, legs, tracks, arms, carriages, cross rails, uprights, overhead beam, top rail beam, swivel pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — LT-PT3300DC-X
Does the LT-PT3300DC-X price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Does the LT-PT3300DC-X need shop compressed air?
No — it runs entirely on a 12VDC deep-cycle battery with an integrated charger. You only need a standard 110VAC outlet to recharge it.
What's the difference between the LT-PT3300DC-X and LT-PT2500AH-X?
The LT-PT2500AH-X is a 2,500 lb air-hydraulic version that runs on 90–125 PSI shop air. The LT-PT3300DC-X is a higher-capacity (3,300 lb) 12VDC battery-powered version with a pallet-jack dolly base and a faster 20s/22s lift/lower rate.
What is the LT-PT3300DC-X's warranty?
Tuxedo backs the LT-PT3300DC-X with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
