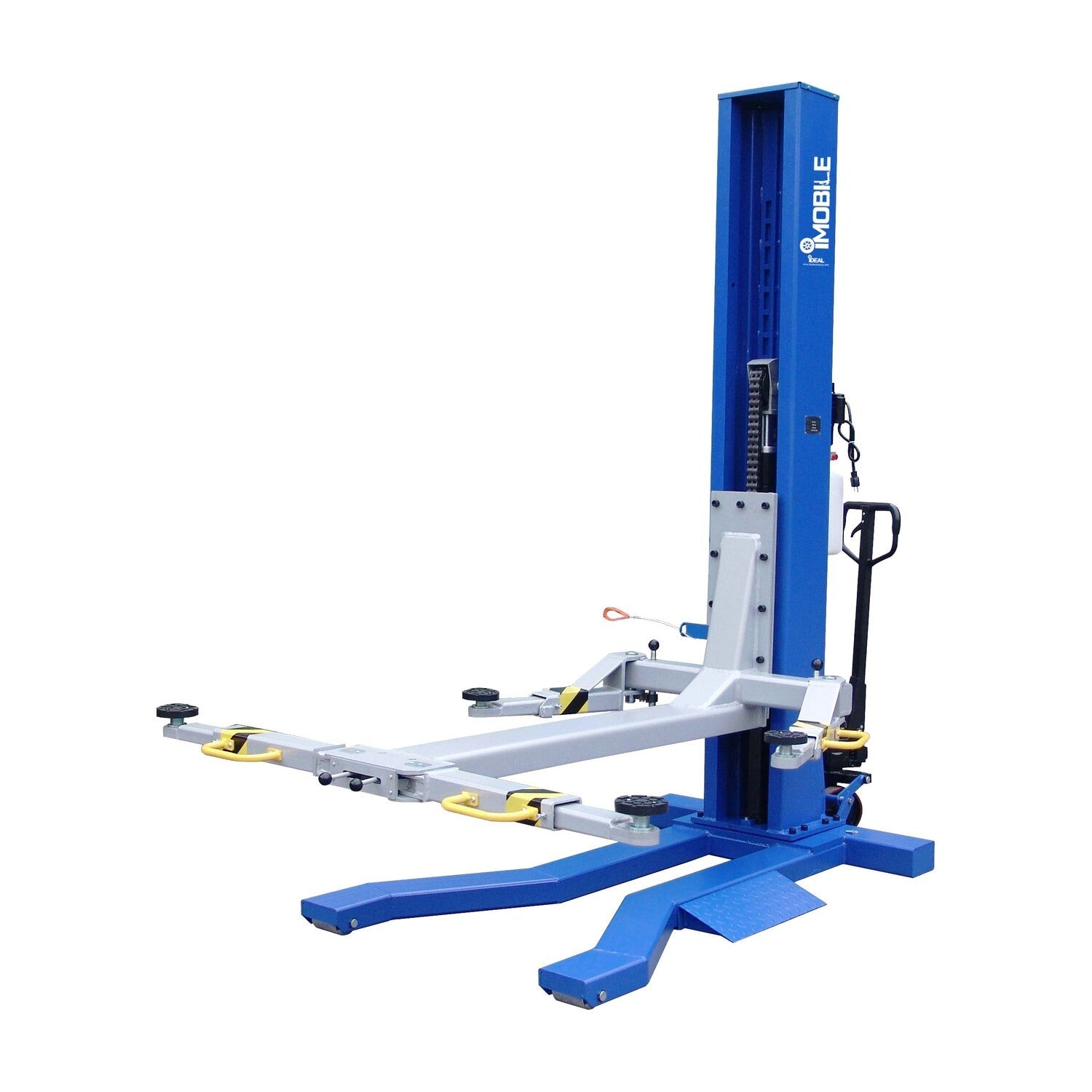

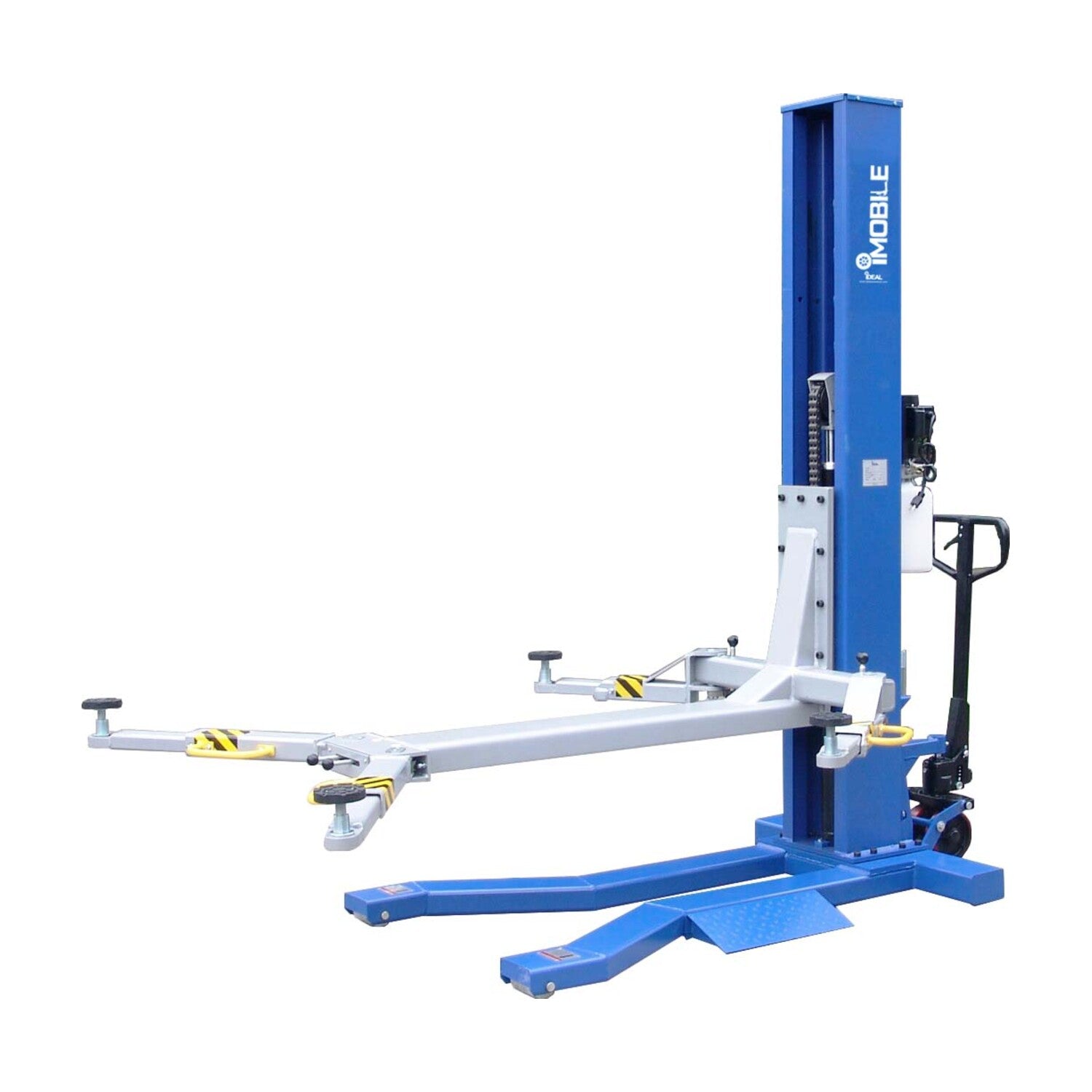

Tuxedo 6,000 lb Mobile Single Column Lift - Low Profile #MSC-6KLP
| Model / Part Number | MSC-6KLP |
| Capacity | 6,000 lb |
| Type | iMOBILE mobile single column lift, low profile |
| Lift Rise Height | 72 in |
| Drive-Over Height | 3-15/16 in |
| Minimum Ceiling Height | 9 ft |
| Power | 115V, 15A, single-phase |
| Ship Weight | 1,850 lb |
- Level, load-rated shop floor
- Mobile design — no permanent anchoring required
- Indoor use, minimum 9 ft ceiling clearance at full rise
- 115V, 15A, single-phase electrical service
- Have a qualified electrician confirm circuit capacity if running multiple units
- Drive-over ramps at 3-15/16 in height allow drive-over vehicle loading
- Pallet-jack feature allows positioning the lift under the vehicle for loading
- Ships via LTL freight
iDEAL iMOBILE MSC-6KLP — 6,000 lb Low-Profile Mobile Single Column Lift
The Tuxedo MSC-6KLP is a 6,000 lb iMOBILE mobile single-column lift with a low-profile design built for limited space and situations where lift portability matters. The low drive-over ramp height (3-15/16 in) allows drive-over vehicle loading, while a pallet-jack feature also lets the lift be positioned under the vehicle for loading.
It raises to a full rise height of 72 in, giving access to the underside of most vehicles for pre-service inspections or repair work, and requires a minimum ceiling height of 9 ft. Main-side arm reach is 19-11/16 in to 26 in and off-side arm reach is 24-5/8 in to 34 in, with an adjustable swivel pad height of 3-15/16 in to 6-5/16 in.
Due to its unique low-profile design and portability, the MSC-6KLP is a practical solution for a homeowner with limited garage space or a shop looking to add mobile lift capacity without a permanent two-post or four-post installation.
Who It's Built For
- ✅ Homeowners and shops with limited space needing a lift that can be moved and positioned as needed
- ✅ Facilities wanting drive-over or pallet-jack-style loading instead of driving onto fixed runways
- ✅ Shops needing underside access for pre-service inspection or repair without a permanent lift installation
What It's NOT Built For
- ❌ Vehicles or loads exceeding 6,000 lb
- ❌ Bays with less than 9 ft of ceiling clearance at full rise
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the MSC-6KLP Different
Low-Profile Drive-Over Design
A 3-15/16 in drive-over ramp height allows the vehicle to be driven directly onto the lift, while the pallet-jack feature also allows positioning under the vehicle for loading.
6,000 lb Capacity, 72 in Rise
Rated for 6,000 lb with a full rise height of 72 in, giving comfortable underside access for most vehicles.
Mobility
As an iMOBILE lift, the MSC-6KLP can be moved and repositioned as needed instead of being permanently anchored to one bay.
Adjustable Arm Reach
Main-side arm reach of 19-11/16 in–26 in and off-side arm reach of 24-5/8 in–34 in accommodate a range of vehicle configurations.
Footprint
45-3/16 in wide x 101-9/16 in deep x 102-3/8 in tall; confirm 9 ft minimum ceiling height before ordering.
✅ Best For
- ✅ Homeowners and shops with limited, non-dedicated lift space
- ✅ Facilities wanting drive-over loading without fixed runways
- ✅ Shops needing occasional underside access without a permanent lift installation
❌ Not Ideal For
- ❌ Vehicles over 6,000 lb
- ❌ Bays with less than 9 ft of ceiling clearance at full rise
MSC-6KLP vs. MSC-6KLP-BLK — Which Finish Is Right for Your Shop?
Same machine, same specs — the only difference is finish.
| Decision Point | MSC-6KLP | MSC-6KLP-BLK |
|---|---|---|
| Finish | Standard iDEAL finish | Black finish |
| Capacity | 6,000 lb | 6,000 lb |
| Lift rise height | 72 in | 72 in |
| Drive-over height | 3-15/16 in | 3-15/16 in |
Choose whichever finish suits your shop — there is no functional or capacity difference between the two. Call (817) 865-3707 with questions.
Full Specifications — MSC-6KLP
| Model / Part Number | MSC-6KLP |
| Capacity | 6,000 lb |
| Width Overall | 45-3/16 in |
| Height Overall | 102-3/8 in |
| Depth / Length Overall | 101-9/16 in |
| Lift Rise Height | 72 in |
| Minimum Ceiling Height | 9 ft |
| Swivel Pad Height (Adj.) | 3-15/16 in – 6-5/16 in |
| Main Side Arm Reach | 19-11/16 in – 26 in |
| Off Side Arm Reach | 24-5/8 in – 34 in |
| Drive-Over Height | 3-15/16 in |
| Power | 115V, 15A, single-phase |
| Ship Weight | 1,850 lb |
| Shipping Dimensions | 99 in L x 44 in W x 42 in H |
⚠️ Installation Requirements
- Floor: Level, load-rated shop floor; mobile design, no permanent anchoring required.
- Electrical: 115V, 15A, single-phase circuit.
- Ceiling height: Confirm at least 9 ft of clearance at full 72 in rise.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — MSC-6KLP
For exact warranty terms and coverage on the MSC-6KLP, please contact Alamo Equipment at (817) 865-3707.
❓ Frequently Asked Questions — MSC-6KLP
Does the MSC-6KLP price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
How is the MSC-6KLP loaded?
Drive-over ramps at 3-15/16 in height allow drive-over loading, and a pallet-jack feature also allows positioning the lift under the vehicle.
What's the maximum lift height?
72 in full rise height, requiring a minimum 9 ft ceiling clearance.
Is the MSC-6KLP portable?
Yes. As an iMOBILE lift, it can be moved and repositioned rather than permanently anchored to one location.
What's different from the black-finish MSC-6KLP-BLK?
Only the finish. All capacities, dimensions, and power requirements are identical.
