Tuxedo MSC Crossbeam 22,000 lbs.- 33,000 lbs #MSC18KX-CRSBM
| Part Number | MSC18KX-CRSBM |
| Type | Crossbeam adapter |
| Compatible Lift | MSC-18K-X (also works with MSC-13K-B) |
| Capacity | 22,000 - 33,000 lb max support |
| Min/Max Pad Width | 6-1/4 in - 110 in |
| Min/Max Pad Heights | 20 in - 25 in |
| Overall Length | 121 in |
| Overall Width | 53-1/4 in |
| Beam Width | 8 in |
| Certification | ALI Certified |
Tuxedo MSC Crossbeam, 22,000-33,000 lb, ALI Certified #MSC18KX-CRSBM

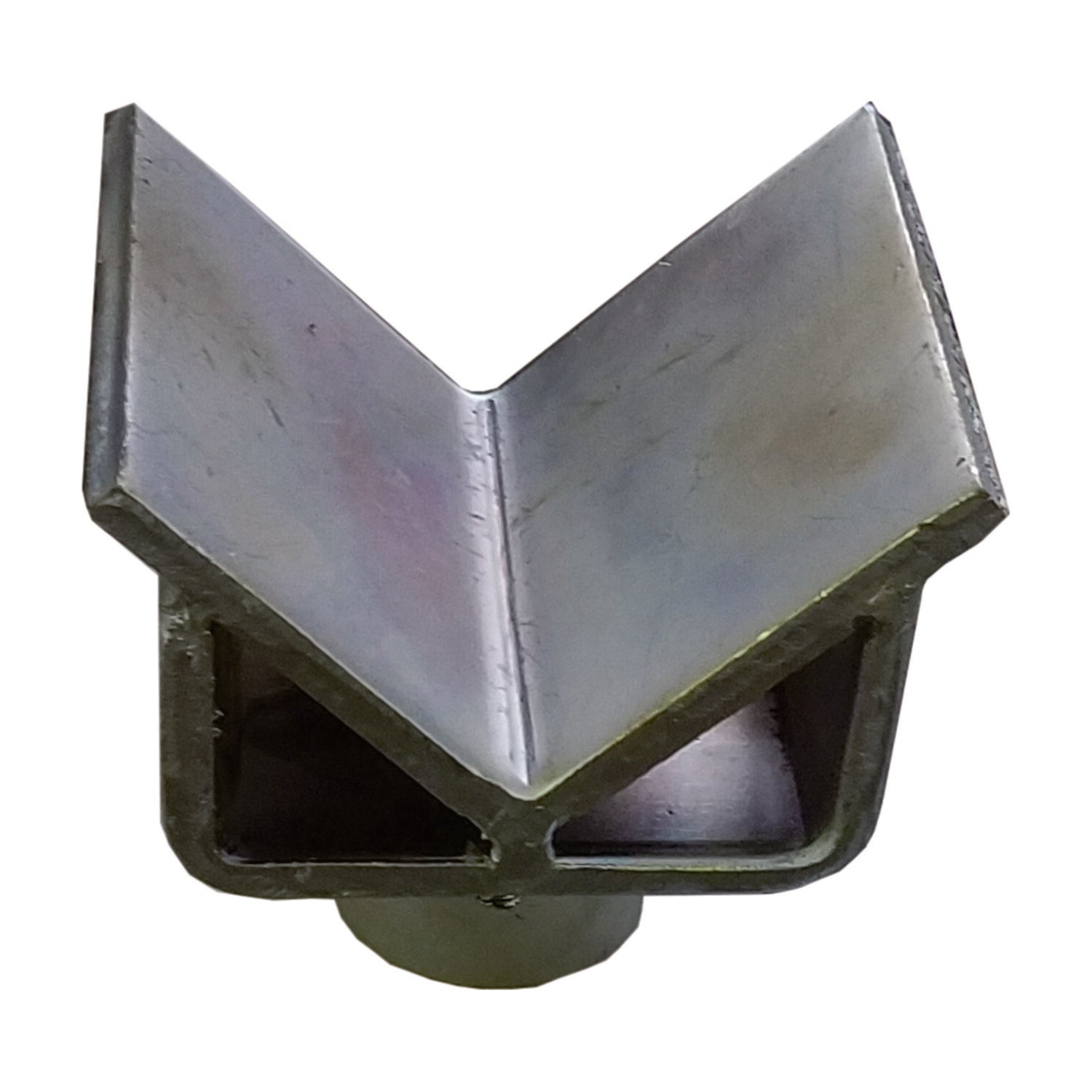

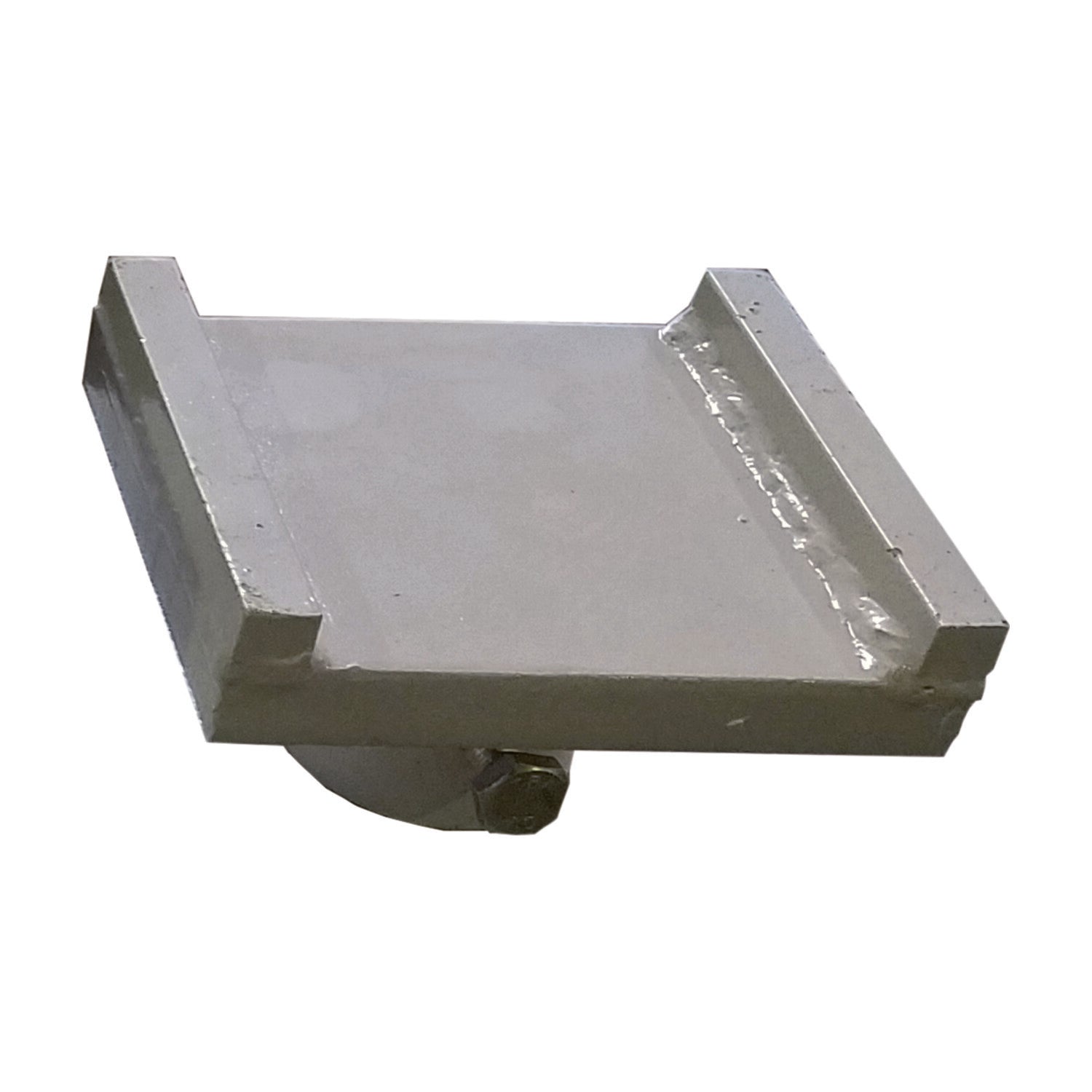

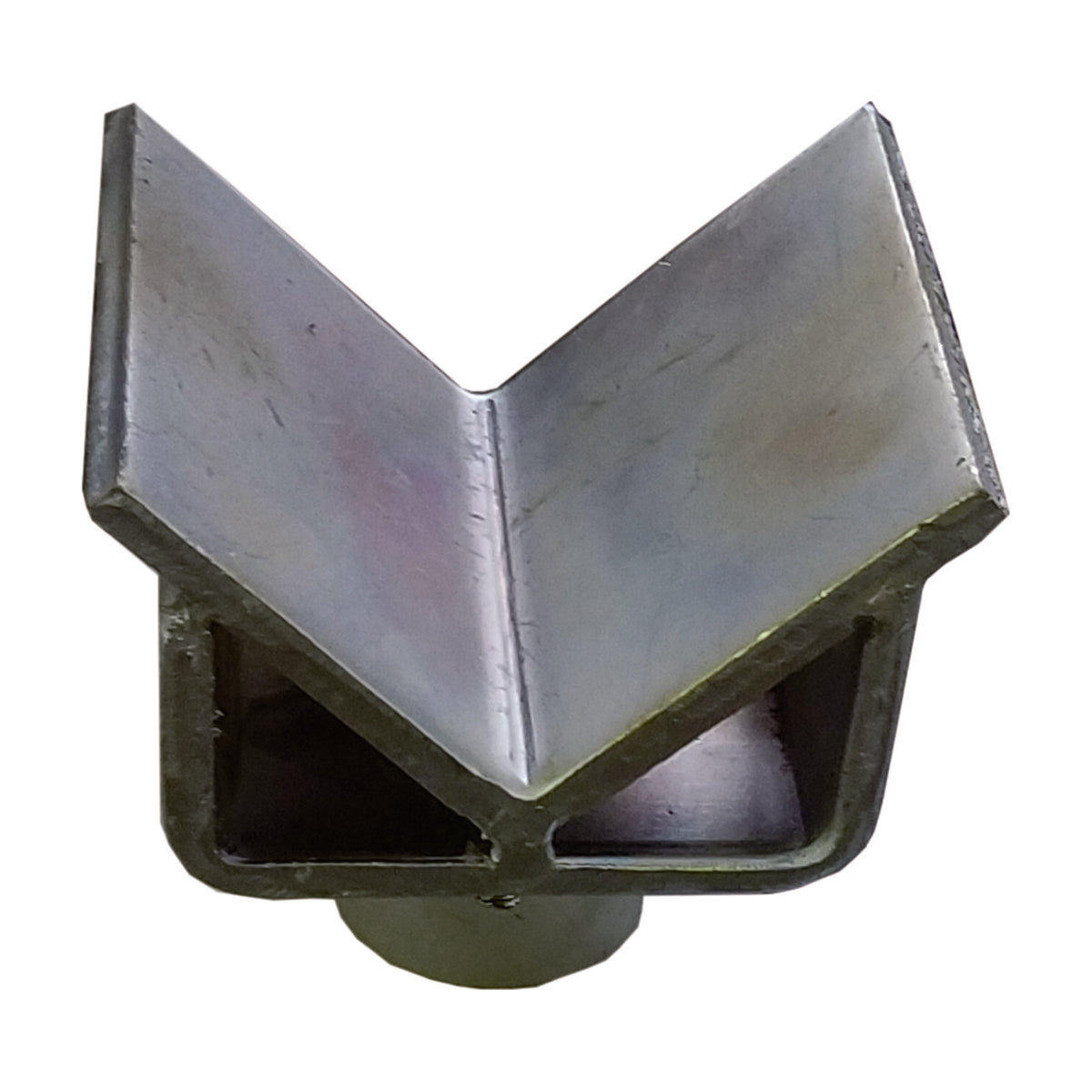

The Tuxedo MSC18KX-CRSBM Crossbeam is a wheels-free, frame-engaging lifting adapter for MSC-18K-X mobile column lifts, letting a two-column (or four/six-column) setup lift a vehicle by its frame instead of its wheels for undercarriage service. It ships standard with three pairs of different HD contact pad adapters, poly casters, and a tow bar for positioning.
The crossbeam's adjustable width and height pillar supports handle a wide range of vehicle frame widths (6-1/4 in to 110 in pad width) and heights (20 in to 25 in pad height), and it's rated for 22,000 to 33,000 lb depending on how many columns are engaged. It also works with the MSC-13K-B lift family.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
Requires two MSC-18K-X columns to operate (also compatible with MSC-13K-B). Used individually or in pairs with two or four column lift configurations. Not a standalone lift accessory -- must be paired with the mobile column lift itself.
Warranty
Tuxedo backs this equipment with its standard warranty against defects in material and workmanship. Contact Alamo for the specific warranty term applicable to your purchase.
