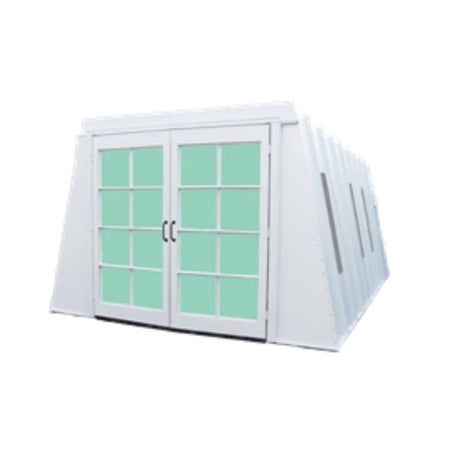

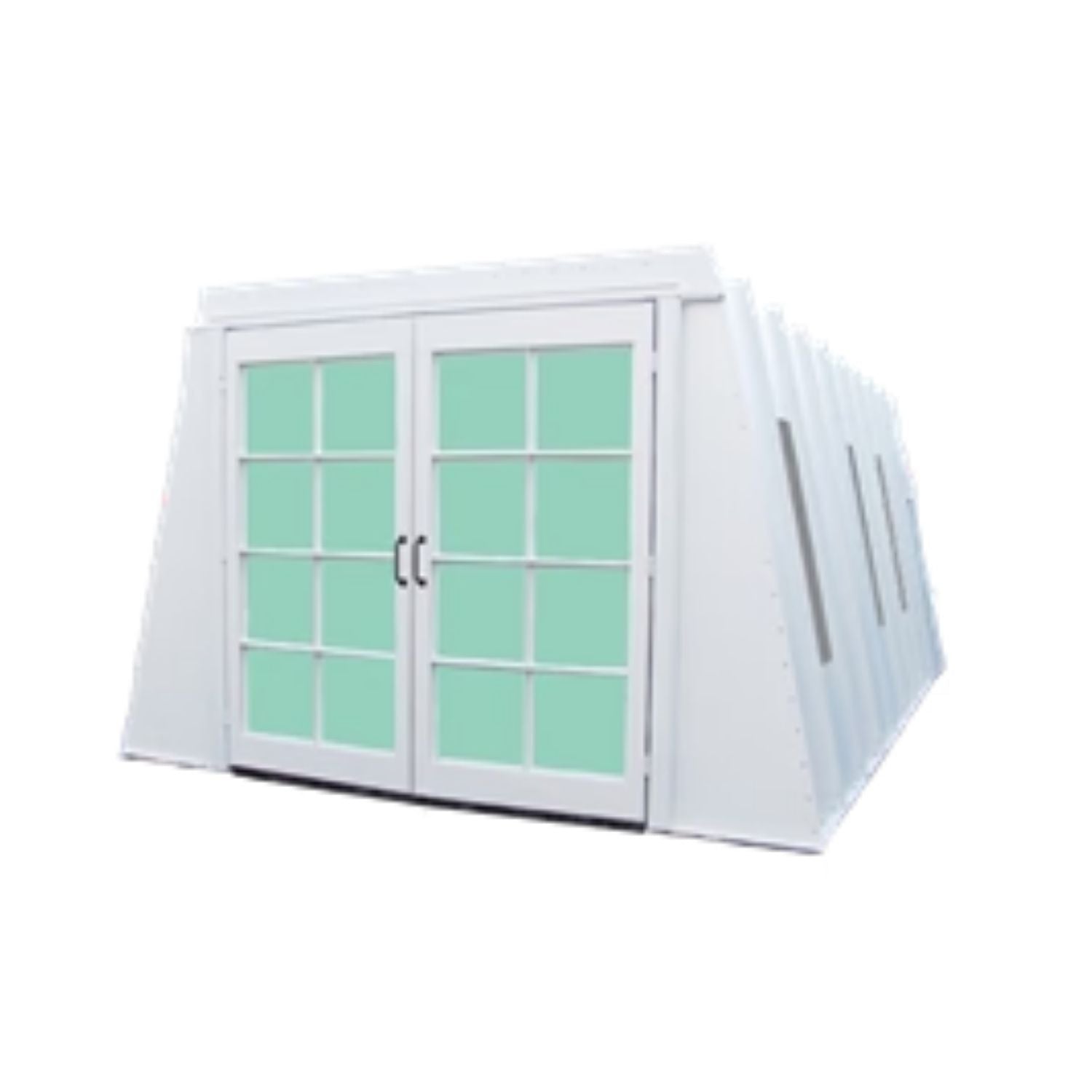

Tuxedo PSB AF CROSS FLOW-B (ASY) 22.6L-13W-8.6H #PSB-AFCF23B-1PH-230V-AK
| Model / Part Number | PSB-AFCF23B-1PH-230V-AK |
| Type | Paint spray booth |
| Inside Dimensions | 22'-6" L x 13' W x 8'-6" H |
| Outside Dimensions | 25'-4" L x 13'-4" W x 8'-10" H |
| Fan / Motor | (1ea) 24 in Tube Axial Fan, 3HP-3PH-230/460VAC-60Hz |
| CFM | 9,500 CFM @ 0.5 static pressure |
| Electrical Phase | 115V/230V, 1PH |
- Non-combustible, flat, level floor surface (manufacturer requirement, not optional)
- Mark the booth's dimensional outline on the floor before assembly
- 3 ft minimum clearance at all sides and sealed entryways; 10 ft minimum between this booth's exhaust stack and any other apparatus's intake
- Electrical installation should be performed by a licensed electrician familiar with national and local codes
- Booth is built to NFPA 33, UFC 45, and NEC 516 -- but permits and code compliance are the buyer's responsibility, not included
- A fire suppression system is not included but is typically required by local code -- normally supplied by a licensed local installer
- 10 ft minimum clearance between this booth's intake and any other apparatus's exhaust
- Ships via LTL freight, crated in multiple panel sections
iDEAL PSB-AFCF23B-1PH-230V-AK — Paint Spray Booth
The iDEAL "A-Frame" Cross Flow Paint Spray Booth (PSB-AFCF23B-AK) is an economical, commercial-grade booth designed to provide superior lighting with optimal cross-draft air flow for a high-quality paint finish in a safe, controlled, ventilated work area.
Its tilt-panel design gives optimal lighting coverage in a smaller, more economical footprint than the 26 ft downdraft booths — well suited to shops that don't need the largest work area but still want commercial-grade construction and airflow.
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the PSB-AFCF23B Different
Compact, Economical Footprint
At 22'-6" x 13' inside, this is the most compact of the three full enclosed spray booths in the iDEAL line, priced and sized for shops that don't need the largest work area.
Tilt-Panel Design for Lighting Coverage
The economical tilt-panel construction is specifically engineered for optimal lighting coverage across the cross-draft airflow pattern.
Double Entry Doors with Shutoff Switches
Double entry doors, each with a shutoff switch, plus a personnel door with a viewing window and its own shutoff switch, are included standard.
✅ Best For
- ✅ Shops that want a full enclosed spray booth without the size (and cost) of a 26 ft downdraft model
- ✅ Bays limited to roughly 25 ft x 13 ft
❌ Not Ideal For
- ❌ High-volume shops needing the 12,200-14,000 CFM of the SDD26B/SEMIDD26B models
Full Specifications — PSB-AFCF23B-1PH-230V-AK
| Model / Part Number | PSB-AFCF23B-1PH-230V-AK |
| Inside Dimensions | 22'-6" L x 13' W x 8'-6" H |
| Outside Dimensions | 25'-4" L x 13'-4" W x 8'-10" H |
| Fan / Motor | (1ea) 24 in Tube Axial Fan, 3HP-3PH-230/460VAC-60Hz |
| CFM | 9,500 CFM @ 0.5 static pressure |
| Lighting | 6ea T-8 / 4-bulb light fixtures (vertical), 24ea GE T8 32W 5000K lamps |
| Panel Construction | 18-gauge steel, precision punched |
| Finish | White powder coat, inside and outside |
| Duct Requirement | Requires (1) 25 in duct — not included |
| Included | Deluxe control panel, manometer, solenoid valve, hardware, sealant, double entry doors w/ shutoff switches |
⚠️ Installation Requirements
- Floor: Non-combustible, flat, level floor surface. Not optional per the manufacturer's manual.
- Codes: Built to NFPA 33, UFC 45, NEC 516 -- permits and local code compliance are the buyer's responsibility, not included.
- Clearance: 3 ft minimum at all sides/sealed entryways; 10 ft minimum between this unit's exhaust stack and any other apparatus's intake, and between its intake and any other apparatus's exhaust.
- Electrical: 115V/230V, 1PH service, installed by a licensed electrician.
- Fire suppression: Not included but typically required by local code -- coordinate with a licensed local installer.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — PSB-AFCF23B-1PH-230V-AK
iDEAL Paint Spray Booths (Tuxedo Distributors, LLC) carry a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's own installation manual.
| Coverage | Term |
|---|---|
| Parts & materials, free from defects under normal use | 1 year from date of shipment |
| Labor for part replacement | Not covered |
| Outbound replacement freight (defective part) | Paid by Tuxedo Distributors |
| Return freight (if defective part must be sent back) | Paid by Tuxedo Distributors; RGA required first |
This warranty does not cover accessories or components not supplied by Tuxedo Distributors, and is void if equipment is modified from its original design/specifications. Full terms are in the manufacturer's installation manual, linked above.
Note: some third-party resellers advertise a "5-year structural" tier for this booth family. Tuxedo's own installation manual states a 1-year parts/materials warranty only, with no separate structural tier -- the terms above reflect the manufacturer's own published manual.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — PSB-AFCF23B-1PH-230V-AK
Does the PSB-AFCF23B-1PH-230V-AK price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Is a fire suppression system included?
No — a fire suppression system is not included but is typically required by local fire code. This is normally supplied and installed by a licensed local fire-suppression installer.
Are permits included?
No. Permits and local code compliance are the responsibility of the buyer. The booth is manufactured to NFPA 33, UFC 45, and NEC 516, but local jurisdictions may have additional requirements.
Does it need a duct kit?
Yes — cross-flow paint booths require one 25 in duct, which is not included standard. An optional 8 ft exhaust duct kit (25 in diameter) is available.
What is the PSB-AFCF23B-1PH-230V-AK's warranty?
Tuxedo backs iDEAL Paint Spray Booths with a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's installation manual. Labor is not covered.
Why Buy the PSB-AFCF23B-1PH-230V-AK from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
