Tuxedo PSB MIXING ROOM (ASY) #PSB-PMR1088-1PH-230V-AK
| Model / Part Number | PSB-PMR1088-1PH-230V-AK |
| Type | Paint mixing room |
| Inside Dimensions | 10' L x 8' W x 8' H (or 8'x10'x8') |
| Outside Dimensions | 12'-6" L x 8'-4" W x 9'-4" H (or reversed) |
| Fan / Motor | (1ea) 12 in Tube Axial Fan, 1/2HP-3PH-208-230/460VAC-60Hz, Non-Spark, UL Listed |
| CFM | 1,429 CFM @ 0.5 static pressure |
| Electrical Phase | 115/230V, 1PH |
- Non-combustible, flat, level floor surface (manufacturer requirement, not optional)
- Mark the booth's dimensional outline on the floor before assembly
- 3 ft minimum clearance at all sides and sealed entryways; 10 ft minimum between this booth's exhaust stack and any other apparatus's intake
- Electrical installation should be performed by a licensed electrician familiar with national and local codes
- Booth is built to NFPA 33, UFC 45, and NEC 516 -- but permits and code compliance are the buyer's responsibility, not included
- A fire suppression system is not included but is typically required by local code -- normally supplied by a licensed local installer
- 10 ft minimum clearance between this booth's intake and any other apparatus's exhaust
- Ships via LTL freight, crated in multiple panel sections
iDEAL PSB-PMR1088-1PH-230V-AK — Paint Mixing Room
The iDEAL Paint Mixing Room (PSB-PMR1088-AK) is a commercial-grade enclosed room built to keep paint mixing and storage safely separate from the spray-application area — not a spray booth itself, but a dedicated, ventilated space that meets or exceeds applicable OSHA and NFPA 33 regulations.

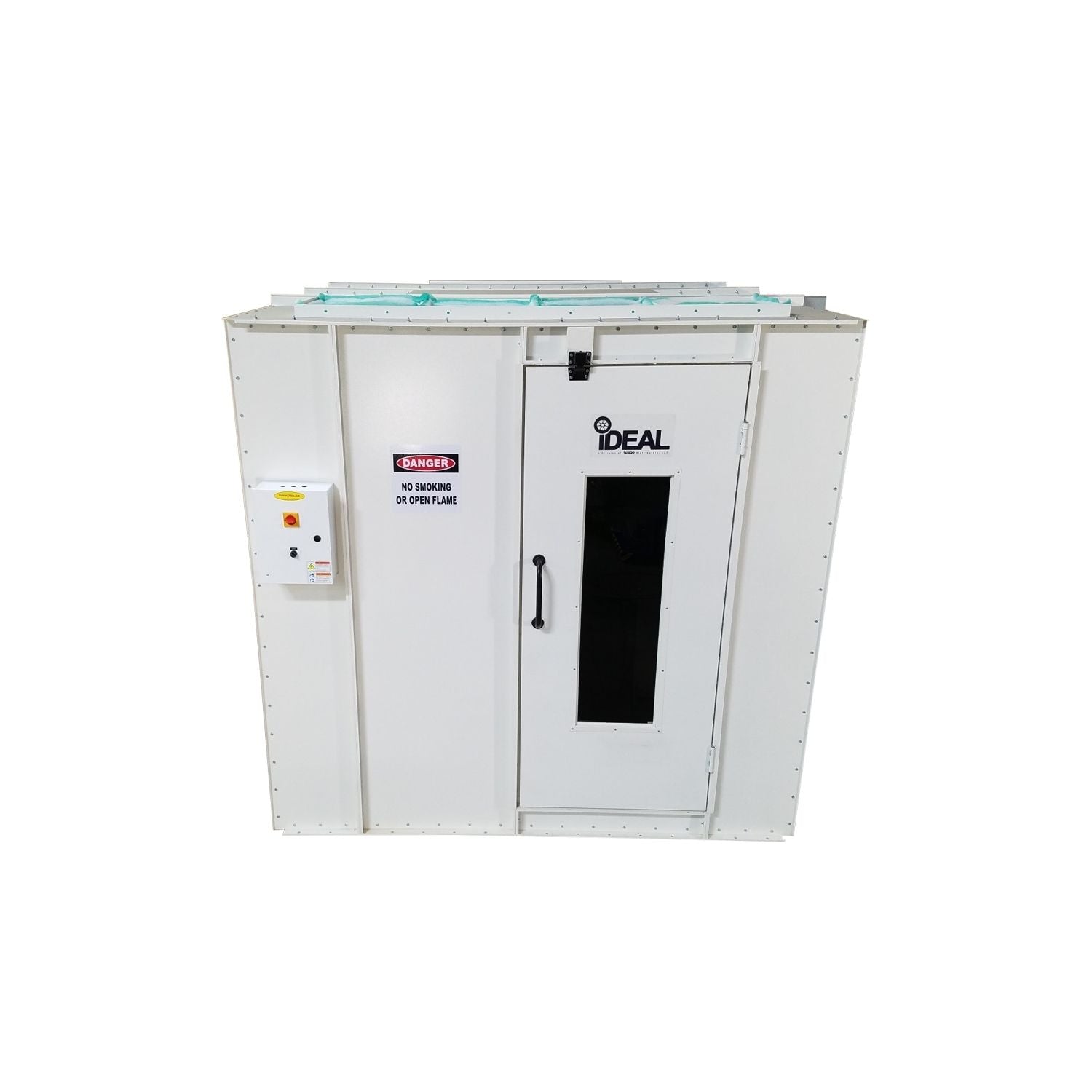

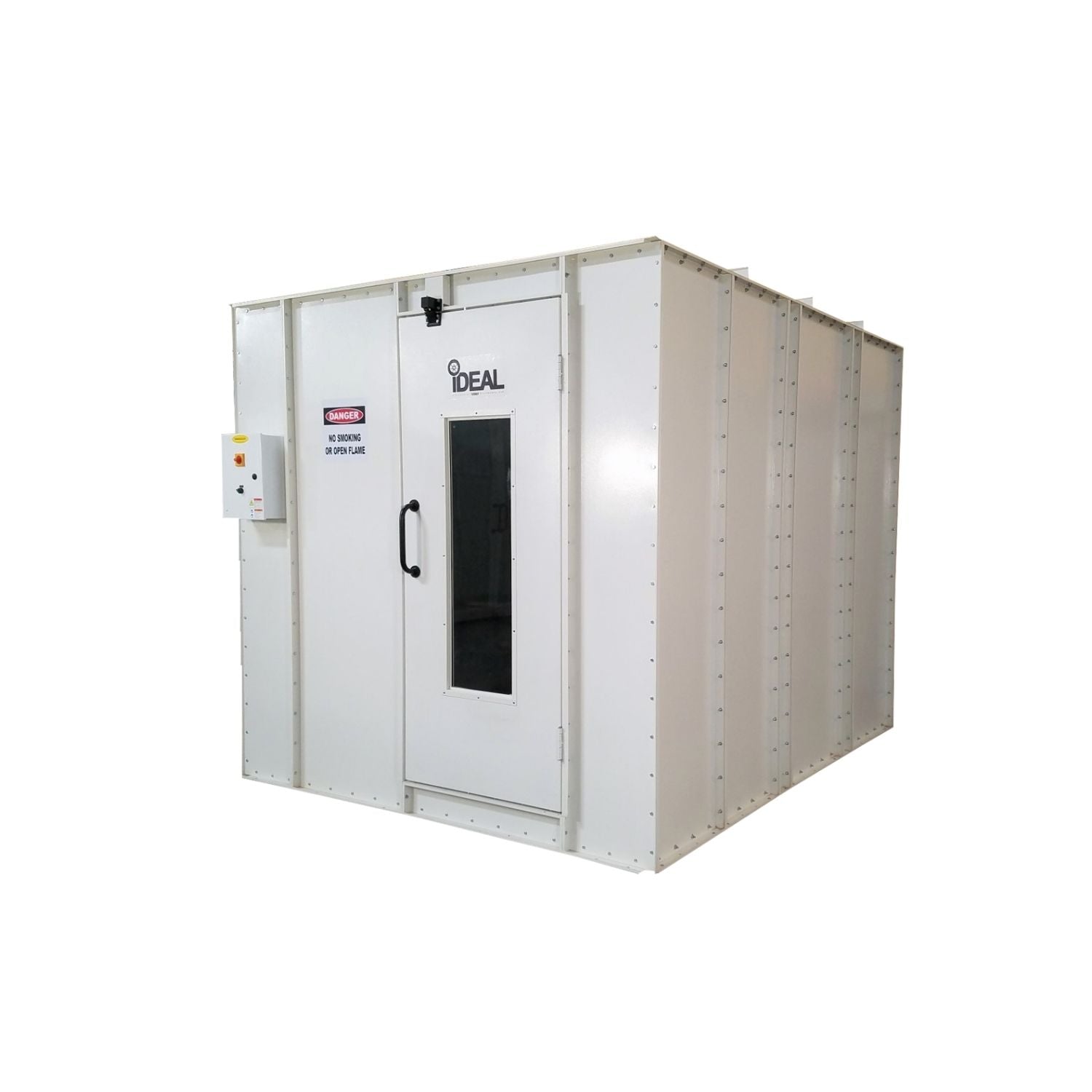

Configurable in either a 10' L x 8' W or 8' L x 10' W footprint (both 8' H), it includes a pre-hung 36 in personnel door with a viewing window, with optional door placement to the side or front of the room to fit your shop layout.
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the PSB-PMR1088 Different
Purpose-Built for Mixing, Not Spraying
A dedicated mixing room needs far less airflow than a spray booth — the 12 in fan and 1/2HP motor deliver 1,429 CFM, a fraction of a spray booth's 7,983-14,000 CFM, sized correctly for a mixing/storage function rather than overspray capture.
Configurable Footprint
Order it as 10' L x 8' W or flip it to 8' L x 10' W (both 8' H inside) — pick whichever orientation fits your available floor space.
Pre-Hung Personnel Door with Viewing Window
A 36 in pre-hung personnel door with a viewing window ships standard, with optional placement to the side or front of the room.
✅ Best For
- ✅ Body shops that need a code-compliant, separate mixing/storage space next to a spray booth
- ✅ Shops standardizing paint storage away from the spray-application area for safety
❌ Not Ideal For
- ❌ Spray application itself — this is a mixing/storage room, not a spray booth; pair it with a PSB-SDD26B, PSB-SEMIDD26B, PSB-AFCF23B, or PSB-AFOFB1388
Full Specifications — PSB-PMR1088-1PH-230V-AK
| Model / Part Number | PSB-PMR1088-1PH-230V-AK |
| Inside Dimensions | 10' L x 8' W x 8' H (or 8'x10'x8') |
| Outside Dimensions | 12'-6" L x 8'-4" W x 9'-4" H (or reversed) |
| Fan / Motor | (1ea) 12 in Tube Axial Fan, 1/2HP-3PH-208-230/460VAC-60Hz, Non-Spark, UL Listed |
| CFM | 1,429 CFM @ 0.5 static pressure |
| Lighting | (2ea) 48in 32W T8/4-bulb light fixtures, Cls1/Div2 rated, (8ea) T8 32W 5000K lamps |
| Panel Construction | 18-gauge steel, precision punched |
| Finish | White powder coat, inside and outside |
| Door | Pre-hung 36 in personnel door with viewing window; optional side or front placement |
| Duct Requirement | Optional 8 ft exhaust duct kit (13 in diameter) |
| Compliance | Meets/exceeds applicable OSHA and NFPA 33 regulations per manufacturer |
⚠️ Installation Requirements
- Floor: Non-combustible, flat, level floor surface. Not optional per the manufacturer's manual.
- Codes: Built to NFPA 33, UFC 45, NEC 516 -- permits and local code compliance are the buyer's responsibility, not included.
- Clearance: 3 ft minimum at all sides/sealed entryways; 10 ft minimum between this unit's exhaust stack and any other apparatus's intake, and between its intake and any other apparatus's exhaust.
- Electrical: 115/230V, 1PH service, installed by a licensed electrician.
- Fire suppression: Not included but typically required by local code -- coordinate with a licensed local installer.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — PSB-PMR1088-1PH-230V-AK
iDEAL Paint Spray Booths (Tuxedo Distributors, LLC) carry a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's own installation manual.
| Coverage | Term |
|---|---|
| Parts & materials, free from defects under normal use | 1 year from date of shipment |
| Labor for part replacement | Not covered |
| Outbound replacement freight (defective part) | Paid by Tuxedo Distributors |
| Return freight (if defective part must be sent back) | Paid by Tuxedo Distributors; RGA required first |
This warranty does not cover accessories or components not supplied by Tuxedo Distributors, and is void if equipment is modified from its original design/specifications. Full terms are in the manufacturer's installation manual, linked above.
Note: some third-party resellers advertise a "5-year structural" tier for this booth family. Tuxedo's own installation manual states a 1-year parts/materials warranty only, with no separate structural tier -- the terms above reflect the manufacturer's own published manual.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — PSB-PMR1088-1PH-230V-AK
Does the PSB-PMR1088-1PH-230V-AK price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Is a fire suppression system included?
No — a fire suppression system is not included but is typically required by local fire code. This is normally supplied and installed by a licensed local fire-suppression installer.
Are permits included?
No. Permits and local code compliance are the responsibility of the buyer. The booth is manufactured to NFPA 33, UFC 45, and NEC 516, but local jurisdictions may have additional requirements.
Is this a spray booth?
No — the PSB-PMR1088 is a mixing/storage room built to keep paint mixing separate from the spray-application area. It has much lower airflow (1,429 CFM) than a spray booth and is meant to be paired with one.
What is the PSB-PMR1088-1PH-230V-AK's warranty?
Tuxedo backs iDEAL Paint Spray Booths with a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's installation manual. Labor is not covered.
