Tuxedo PSB SIDE DOWNDRAFT-B (ASY) #PSB-SDD26B-3PH-230V-AK
| Model / Part Number | PSB-SDD26B-3PH-230V-AK |
| Type | Paint spray booth |
| Inside Dimensions | 26' L x 14' W x 9'-3" H |
| Outside Dimensions | 26'-4" L x 17'-8" W x 9'-5" H |
| Fan / Motor | (2ea) 24 in Tube Axial Fans, 2HP-3PH-230/460VAC-60Hz |
| CFM | 14,000 CFM @ 0.5 static pressure |
| Electrical Phase | 230/460VAC, 3PH |
- Non-combustible, flat, level floor surface (manufacturer requirement, not optional)
- Mark the booth's dimensional outline on the floor before assembly
- 3 ft minimum clearance at all sides and sealed entryways; 10 ft minimum between this booth's exhaust stack and any other apparatus's intake
- Electrical installation should be performed by a licensed electrician familiar with national and local codes
- Booth is built to NFPA 33, UFC 45, and NEC 516 -- but permits and code compliance are the buyer's responsibility, not included
- A fire suppression system is not included but is typically required by local code -- normally supplied by a licensed local installer
- 10 ft minimum clearance between this booth's intake and any other apparatus's exhaust
- Ships via LTL freight, crated in multiple panel sections
iDEAL PSB-SDD26B-3PH-230V-AK — Paint Spray Booth

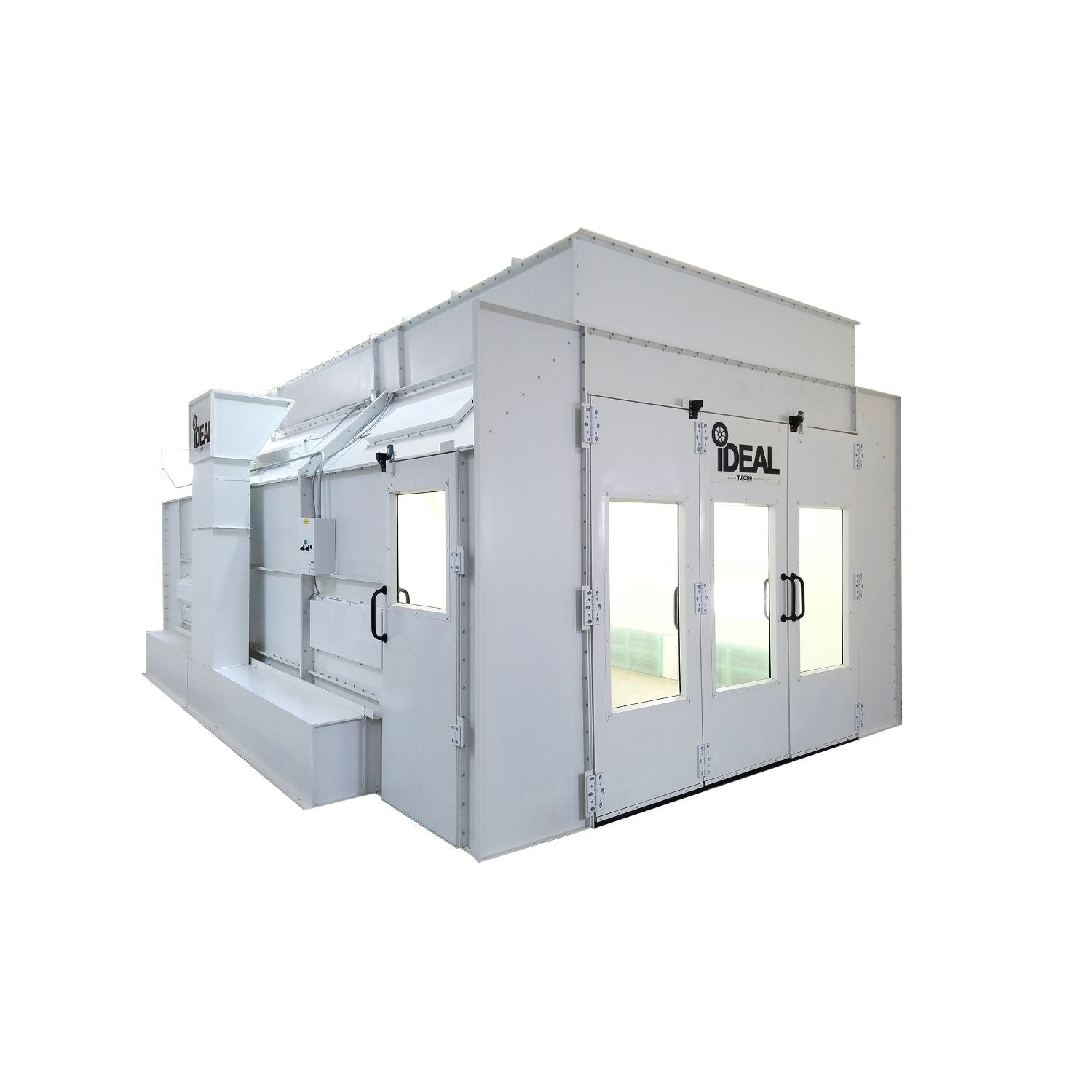

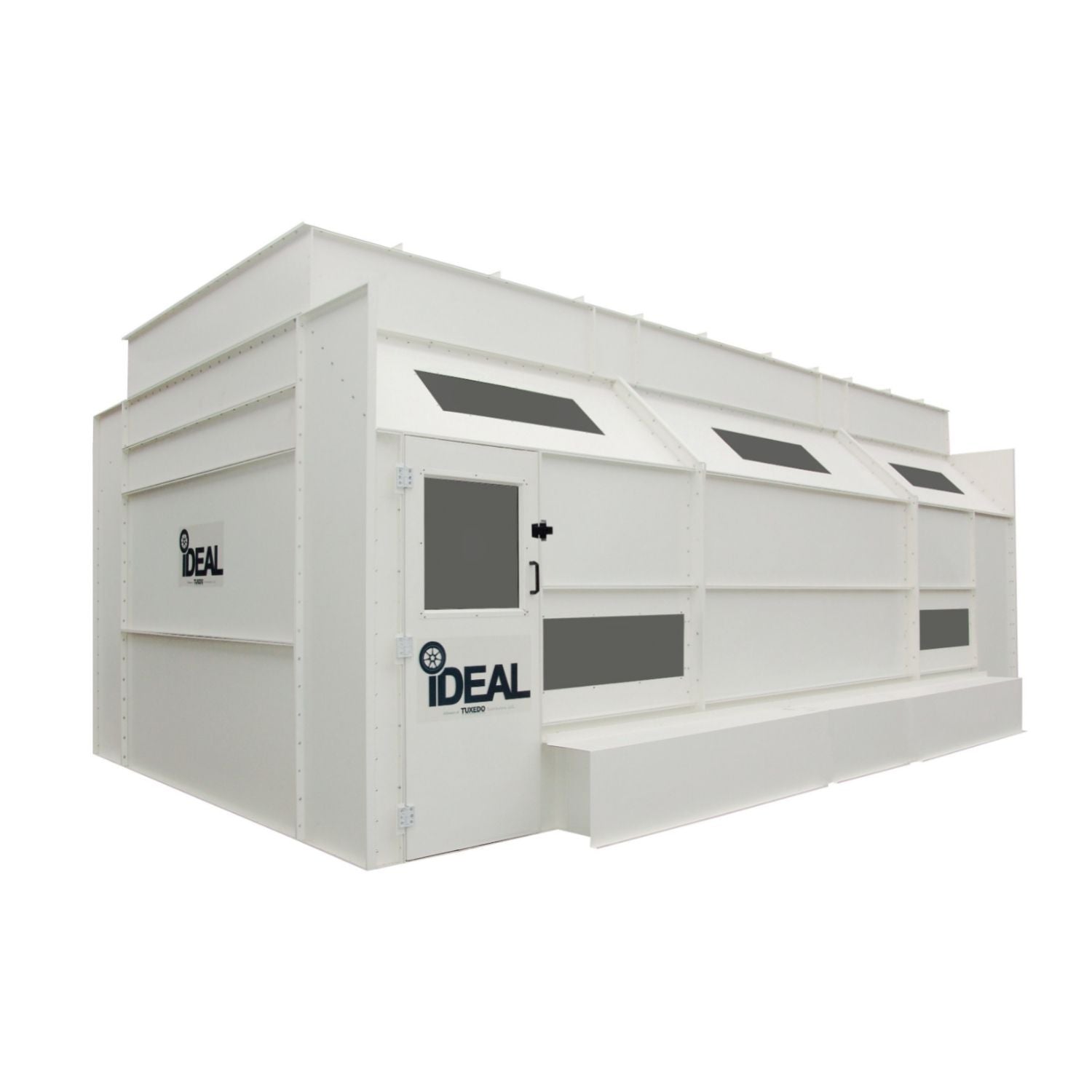

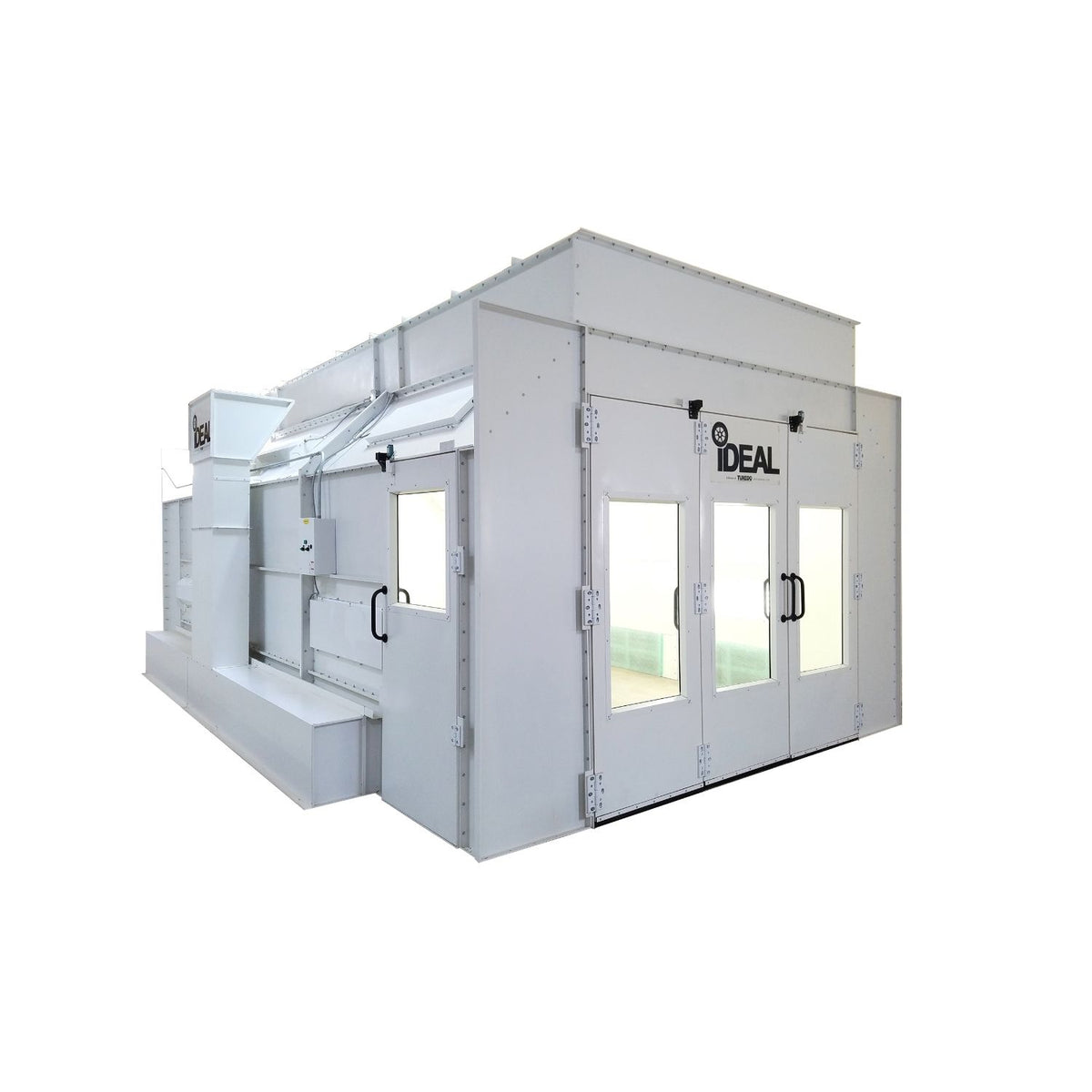

The iDEAL Side Downdraft Paint Spray Booth (PSB-SDD26B-AK) is a premium, commercial-grade booth designed for optimal side-downdraft air flow, producing a high-quality paint finish quickly and efficiently. It's built for automotive, industrial, and wood-finishing applications that need a safe, controlled, ventilated work area at high vehicle throughput.
The exhaust fans draw filtered air through front ceiling intake filters and down toward the rear of the booth into the filtered exhaust chamber, then discharge upward through the exhaust fans and ducting. Heavy-duty 18-gauge precision-punched panel construction with a bright white powder-coat finish (inside and out) stands up to daily shop use.
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the PSB-SDD26B Different
Dual 24" Exhaust Fans for High Airflow
Two 24 in tube-axial exhaust fans deliver 14,000 CFM @ 0.5 static pressure — the highest airflow of the iDEAL spray booth line — for fast overspray clearance on high-volume shops.
10 Horizontal Light Fixtures

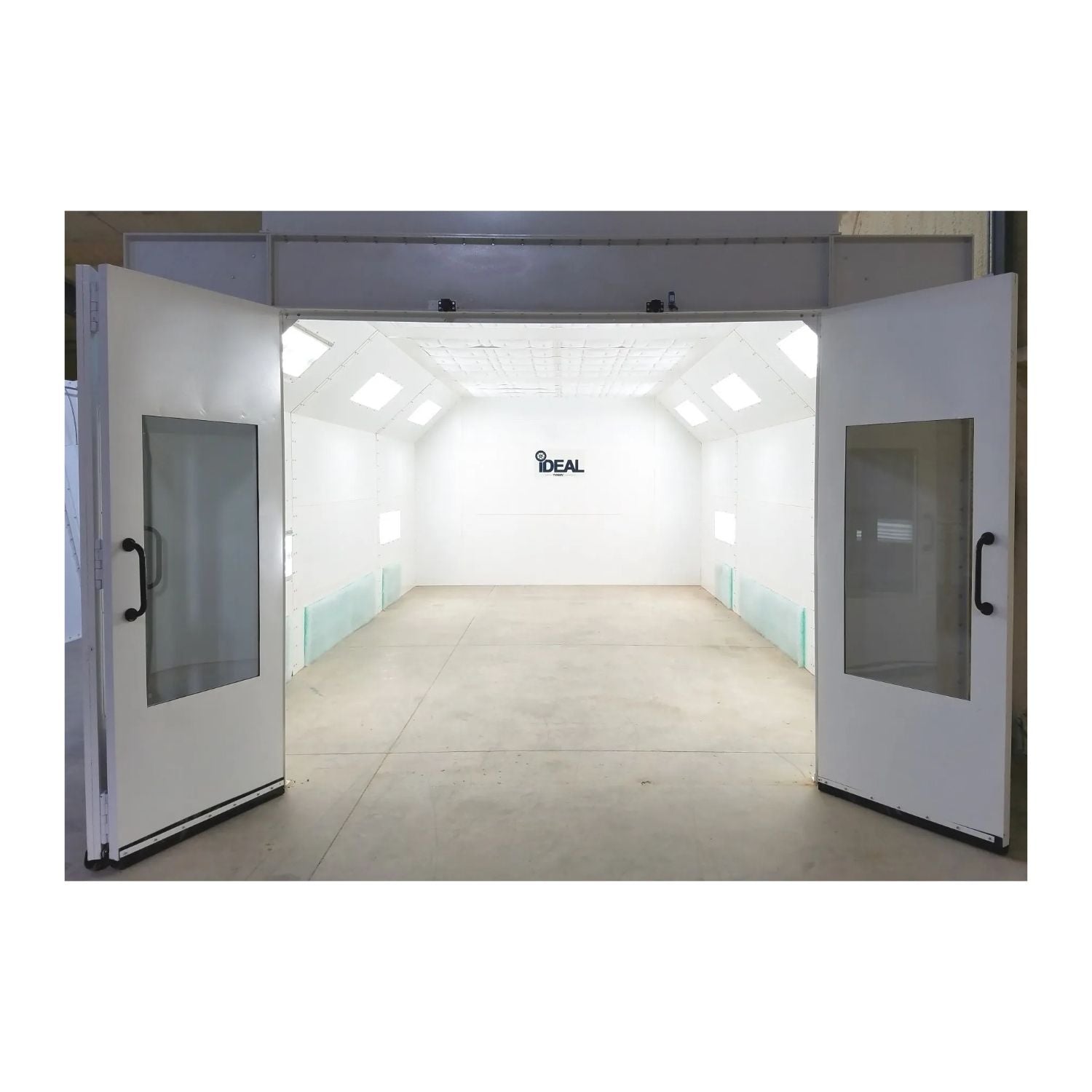

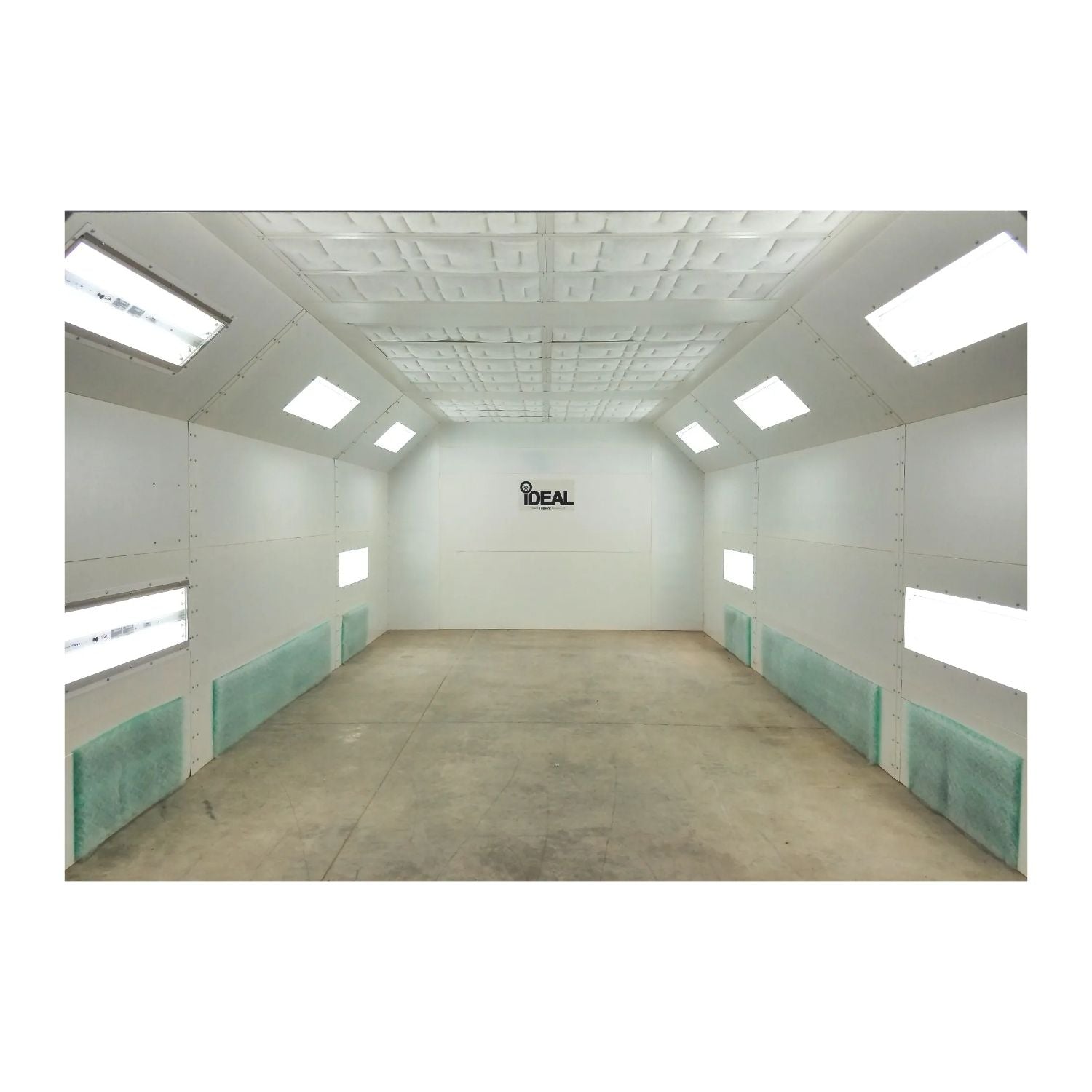

Ten T-8, 4-bulb LDPI industrial light fixtures (40 lamps total, true-daylight 5000K) in a horizontal layout give consistent, shadow-free lighting coverage across the full 26 ft x 14 ft work area.
Complete Deluxe Control Package

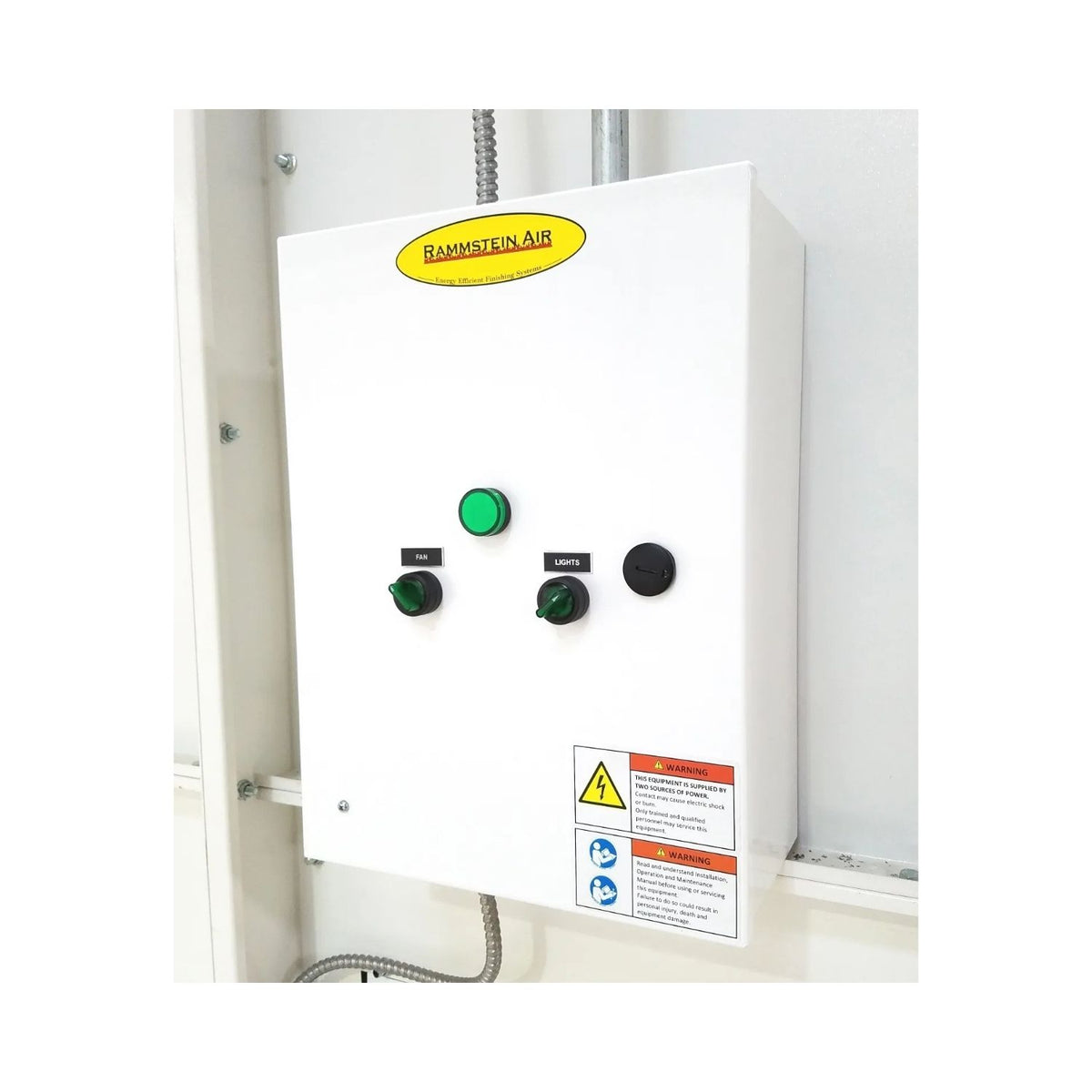

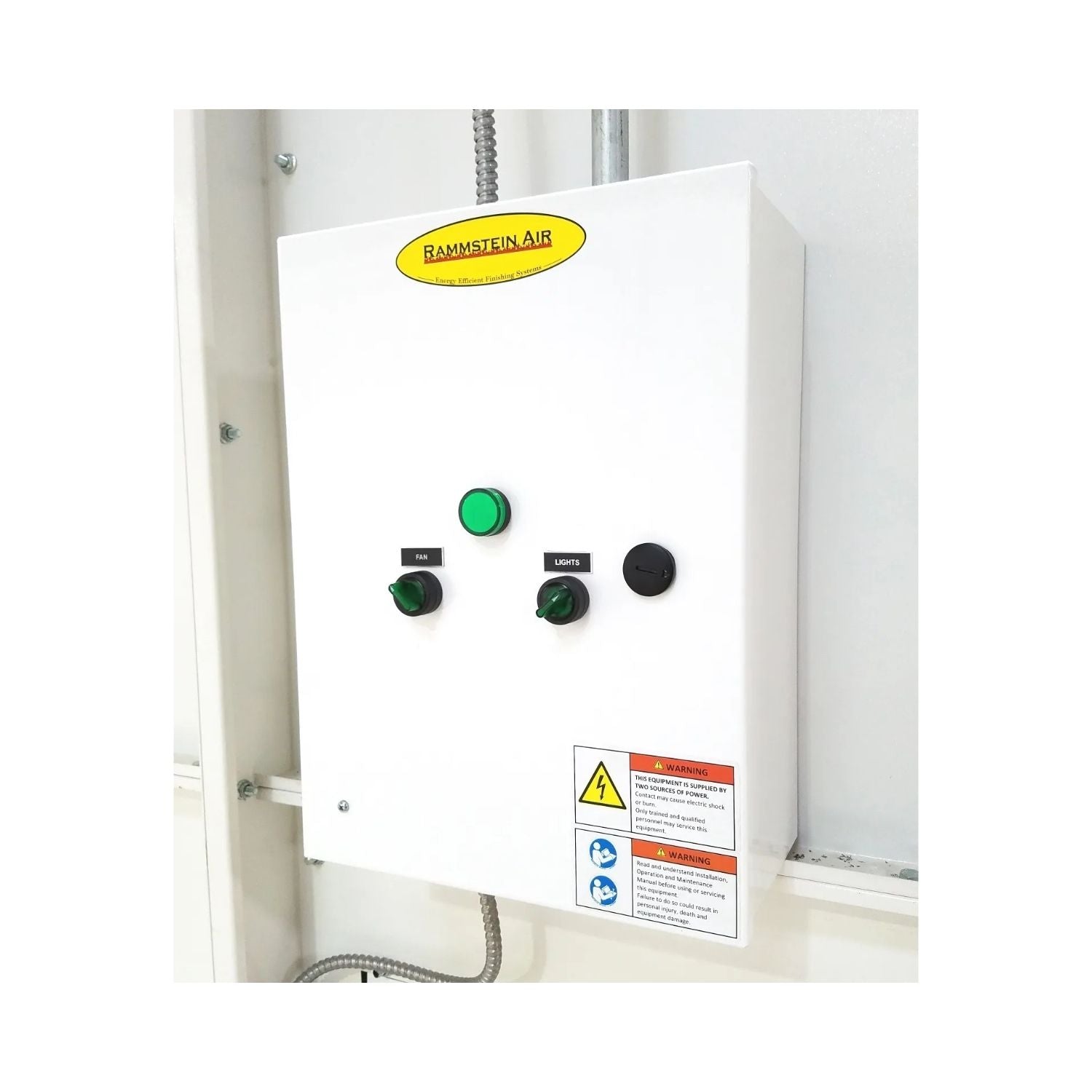

Deluxe control panel, manometer, solenoid valve, hardware, and sealant are all included — you're not sourcing separate control components after delivery.
✅ Best For
- ✅ High-volume body shops needing the fastest overspray clearance in the iDEAL lineup
- ✅ Shops standardizing on a full 26 ft x 14 ft downdraft booth
❌ Not Ideal For
- ❌ Smaller bays — see the PSB-AFCF23B (22'-6" x 13') or PSB-AFOFB1388 (13' x 7'-6") instead
PSB-SDD26B vs. PSB-SEMIDD26B — Side or Semi Downdraft?
Same 26' x 14' inside footprint, genuinely different airflow design.
| Decision Point | PSB-SDD26B (this product) | PSB-SEMIDD26B |
|---|---|---|
| Airflow | 14,000 CFM (2 x 24in fans) | 12,200 CFM (1 x 30in fan) |
| Motor | 2HP per fan (2 fans) | 3HP (single larger fan) |
| Lighting layout | 10 horizontal fixtures | 10 vertical fixtures |
| Outside footprint | 26'-4" L x 17'-8" W | 29'-4" L x 14'-4" W (longer, narrower) |
Both share the same 26' x 14' inside work area. Choose based on which outside footprint fits your building bay, and whether your shop prefers dual smaller fans or one larger fan. Call (817) 865-3707 if you're not sure which fits your building.
Full Specifications — PSB-SDD26B-3PH-230V-AK
| Model / Part Number | PSB-SDD26B-3PH-230V-AK |
| Inside Dimensions | 26' L x 14' W x 9'-3" H |
| Outside Dimensions | 26'-4" L x 17'-8" W x 9'-5" H |
| Fan / Motor | (2ea) 24 in Tube Axial Fans, 2HP-3PH-230/460VAC-60Hz |
| CFM | 14,000 CFM @ 0.5 static pressure |
| Lighting | 10ea T-8 / 4-bulb light fixtures (horizontal), 40ea GE T8 32W 5000K lamps |
| Panel Construction | 18-gauge steel, precision punched |
| Finish | White powder coat, inside and outside |
| Included | Deluxe control panel, manometer, solenoid valve, hardware, sealant, AFC intake/exhaust filters |
⚠️ Installation Requirements
- Floor: Non-combustible, flat, level floor surface. Not optional per the manufacturer's manual.
- Codes: Built to NFPA 33, UFC 45, NEC 516 -- permits and local code compliance are the buyer's responsibility, not included.
- Clearance: 3 ft minimum at all sides/sealed entryways; 10 ft minimum between this unit's exhaust stack and any other apparatus's intake, and between its intake and any other apparatus's exhaust.
- Electrical: 230/460VAC, 3PH service, installed by a licensed electrician.
- Fire suppression: Not included but typically required by local code -- coordinate with a licensed local installer.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — PSB-SDD26B-3PH-230V-AK
iDEAL Paint Spray Booths (Tuxedo Distributors, LLC) carry a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's own installation manual.
| Coverage | Term |
|---|---|
| Parts & materials, free from defects under normal use | 1 year from date of shipment |
| Labor for part replacement | Not covered |
| Outbound replacement freight (defective part) | Paid by Tuxedo Distributors |
| Return freight (if defective part must be sent back) | Paid by Tuxedo Distributors; RGA required first |
This warranty does not cover accessories or components not supplied by Tuxedo Distributors, and is void if equipment is modified from its original design/specifications. Full terms are in the manufacturer's installation manual, linked above.
Note: some third-party resellers advertise a "5-year structural" tier for this booth family. Tuxedo's own installation manual states a 1-year parts/materials warranty only, with no separate structural tier -- the terms above reflect the manufacturer's own published manual.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — PSB-SDD26B-3PH-230V-AK
Does the PSB-SDD26B-3PH-230V-AK price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Is a fire suppression system included?
No — a fire suppression system is not included but is typically required by local fire code. This is normally supplied and installed by a licensed local fire-suppression installer.
Are permits included?
No. Permits and local code compliance are the responsibility of the buyer. The booth is manufactured to NFPA 33, UFC 45, and NEC 516, but local jurisdictions may have additional requirements.
What is the PSB-SDD26B-3PH-230V-AK's warranty?
Tuxedo backs iDEAL Paint Spray Booths with a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's installation manual. Labor is not covered.
Why Buy the PSB-SDD26B-3PH-230V-AK from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
