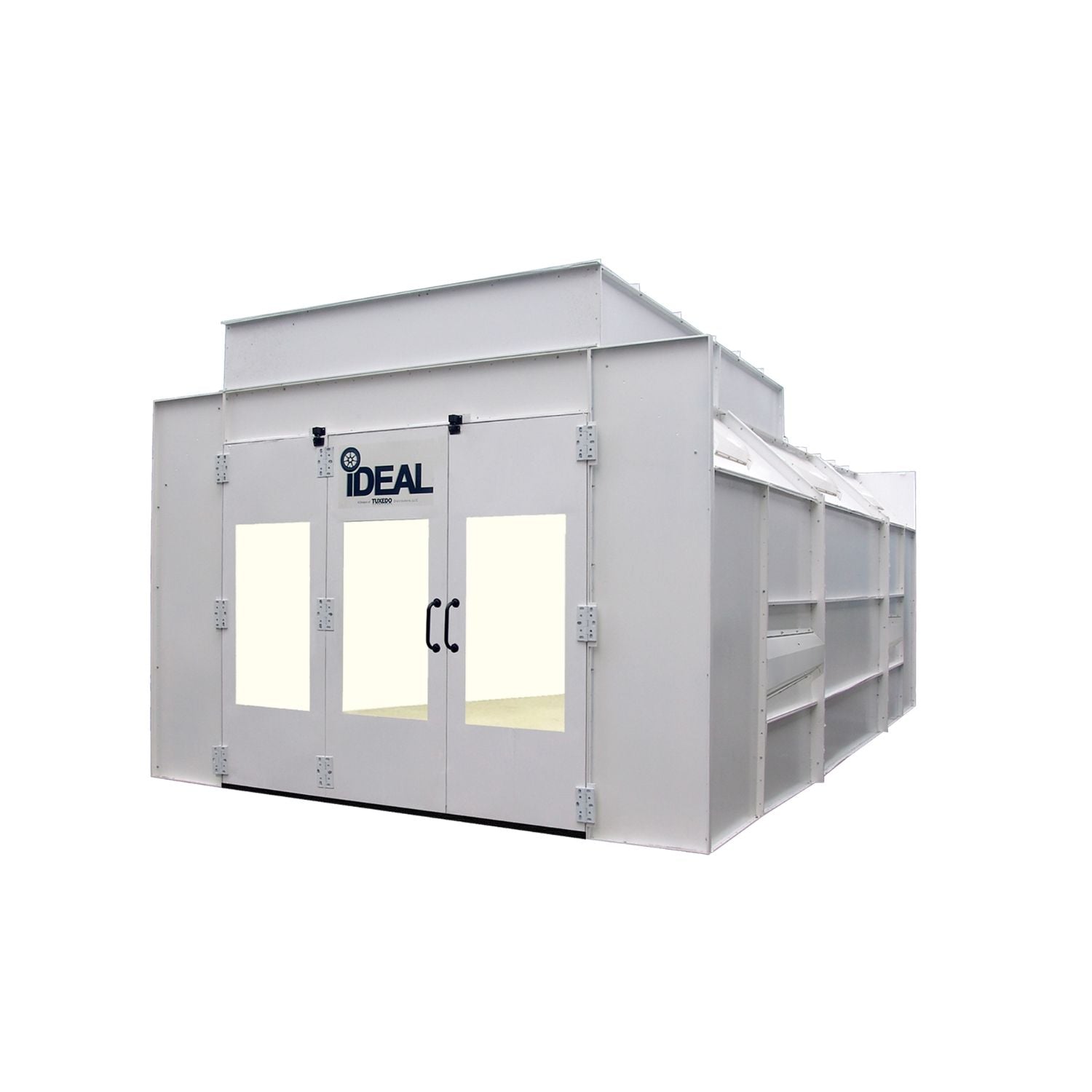

Tuxedo PSB SEMI DOWNDRAFT-B (ASY) #PSB-SEMIDD26B-1PH-230V-AK
| Model / Part Number | PSB-SEMIDD26B-1PH-230V-AK |
| Type | Paint spray booth |
| Inside Dimensions | 26' L x 14' W x 9'-3" H |
| Outside Dimensions | 29'-4" L x 14'-4" W x 9'-7" H |
| Fan / Motor | (1ea) 30 in Tube Axial Fan, 3HP-3PH-230/460VAC-60Hz |
| CFM | 12,200 CFM @ 0.5 static pressure |
| Electrical Phase | 115V/230V, 1PH |
- Non-combustible, flat, level floor surface (manufacturer requirement, not optional)
- Mark the booth's dimensional outline on the floor before assembly
- 3 ft minimum clearance at all sides and sealed entryways; 10 ft minimum between this booth's exhaust stack and any other apparatus's intake
- Electrical installation should be performed by a licensed electrician familiar with national and local codes
- Booth is built to NFPA 33, UFC 45, and NEC 516 -- but permits and code compliance are the buyer's responsibility, not included
- A fire suppression system is not included but is typically required by local code -- normally supplied by a licensed local installer
- 10 ft minimum clearance between this booth's intake and any other apparatus's exhaust
- Ships via LTL freight, crated in multiple panel sections
iDEAL PSB-SEMIDD26B-1PH-230V-AK — Paint Spray Booth
The iDEAL Semi Downdraft Paint Spray Booth (PSB-SEMIDD26B-AK) is a premium, commercial-grade booth designed for optimal semi-downdraft air flow, producing a high-quality paint finish quickly and efficiently for automotive, industrial, and wood-finishing applications.
The exhaust fan draws filtered air through front ceiling intake filters and down toward the rear of the booth into the filtered exhaust chamber, then discharges upward through the exhaust fan and ducting — the same 26 ft x 14 ft work area as the PSB-SDD26B, driven by a single larger 30 in fan instead of two 24 in fans.
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.

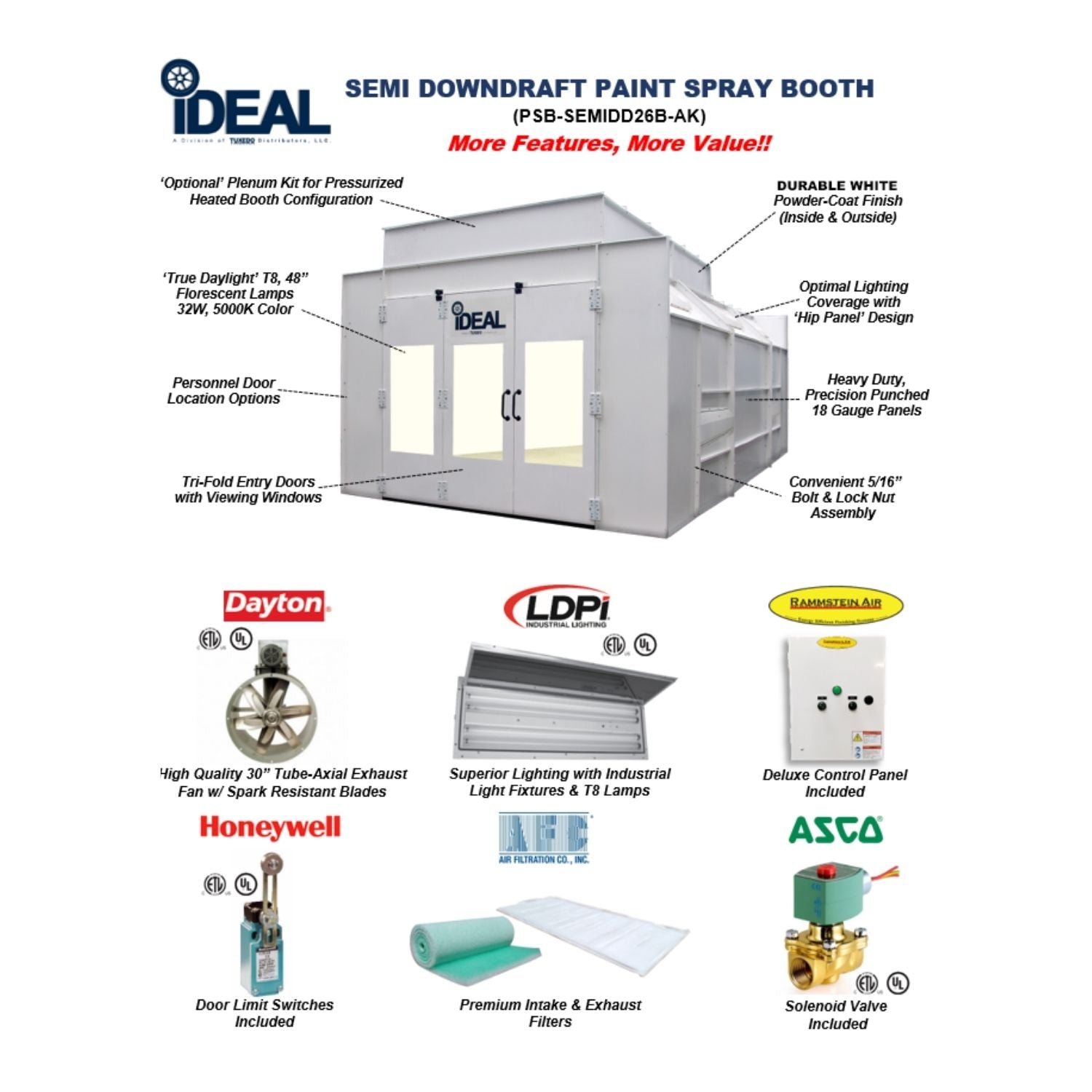

What Makes the PSB-SEMIDD26B Different
Single 30" High-Capacity Fan
One 30 in tube-axial exhaust fan (3HP-3PH) delivers 12,200 CFM @ 0.5 static pressure through a single motor, simplifying maintenance to one fan/motor assembly instead of two.
10 Vertical Light Fixtures
Ten T-8, 4-bulb LDPI industrial light fixtures in a vertical layout (vs the SDD model's horizontal layout) light the full 26 ft x 14 ft work area.
Longer, Narrower Outside Footprint
The 29'-4" L x 14'-4" W outside footprint is longer and narrower than the SDD26B's 26'-4" L x 17'-8" W — worth checking against your building bay before ordering.
✅ Best For
- ✅ Shops with a long, narrow bay that fits the semi-downdraft footprint better than the wider SDD26B
- ✅ Shops that prefer a single fan/motor assembly for simpler maintenance
❌ Not Ideal For
- ❌ Shops needing the highest CFM in the lineup — the PSB-SDD26B's 14,000 CFM is higher
Full Specifications — PSB-SEMIDD26B-1PH-230V-AK
| Model / Part Number | PSB-SEMIDD26B-1PH-230V-AK |
| Inside Dimensions | 26' L x 14' W x 9'-3" H |
| Outside Dimensions | 29'-4" L x 14'-4" W x 9'-7" H |
| Fan / Motor | (1ea) 30 in Tube Axial Fan, 3HP-3PH-230/460VAC-60Hz |
| CFM | 12,200 CFM @ 0.5 static pressure |
| Lighting | 10ea T-8 / 4-bulb light fixtures (vertical), 40ea GE T8 32W 5000K lamps |
| Panel Construction | 18-gauge steel, precision punched |
| Finish | White powder coat, inside and outside |
| Included | Deluxe control panel, manometer, solenoid valve, hardware, sealant, AFC intake/exhaust filters |
⚠️ Installation Requirements
- Floor: Non-combustible, flat, level floor surface. Not optional per the manufacturer's manual.
- Codes: Built to NFPA 33, UFC 45, NEC 516 -- permits and local code compliance are the buyer's responsibility, not included.
- Clearance: 3 ft minimum at all sides/sealed entryways; 10 ft minimum between this unit's exhaust stack and any other apparatus's intake, and between its intake and any other apparatus's exhaust.
- Electrical: 115V/230V, 1PH service, installed by a licensed electrician.
- Fire suppression: Not included but typically required by local code -- coordinate with a licensed local installer.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — PSB-SEMIDD26B-1PH-230V-AK
iDEAL Paint Spray Booths (Tuxedo Distributors, LLC) carry a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's own installation manual.
| Coverage | Term |
|---|---|
| Parts & materials, free from defects under normal use | 1 year from date of shipment |
| Labor for part replacement | Not covered |
| Outbound replacement freight (defective part) | Paid by Tuxedo Distributors |
| Return freight (if defective part must be sent back) | Paid by Tuxedo Distributors; RGA required first |
This warranty does not cover accessories or components not supplied by Tuxedo Distributors, and is void if equipment is modified from its original design/specifications. Full terms are in the manufacturer's installation manual, linked above.
Note: some third-party resellers advertise a "5-year structural" tier for this booth family. Tuxedo's own installation manual states a 1-year parts/materials warranty only, with no separate structural tier -- the terms above reflect the manufacturer's own published manual.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — PSB-SEMIDD26B-1PH-230V-AK
Does the PSB-SEMIDD26B-1PH-230V-AK price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Is a fire suppression system included?
No — a fire suppression system is not included but is typically required by local fire code. This is normally supplied and installed by a licensed local fire-suppression installer.
Are permits included?
No. Permits and local code compliance are the responsibility of the buyer. The booth is manufactured to NFPA 33, UFC 45, and NEC 516, but local jurisdictions may have additional requirements.
What is the PSB-SEMIDD26B-1PH-230V-AK's warranty?
Tuxedo backs iDEAL Paint Spray Booths with a full one-year warranty on all parts and materials from date of shipment, verified directly from the manufacturer's installation manual. Labor is not covered.
