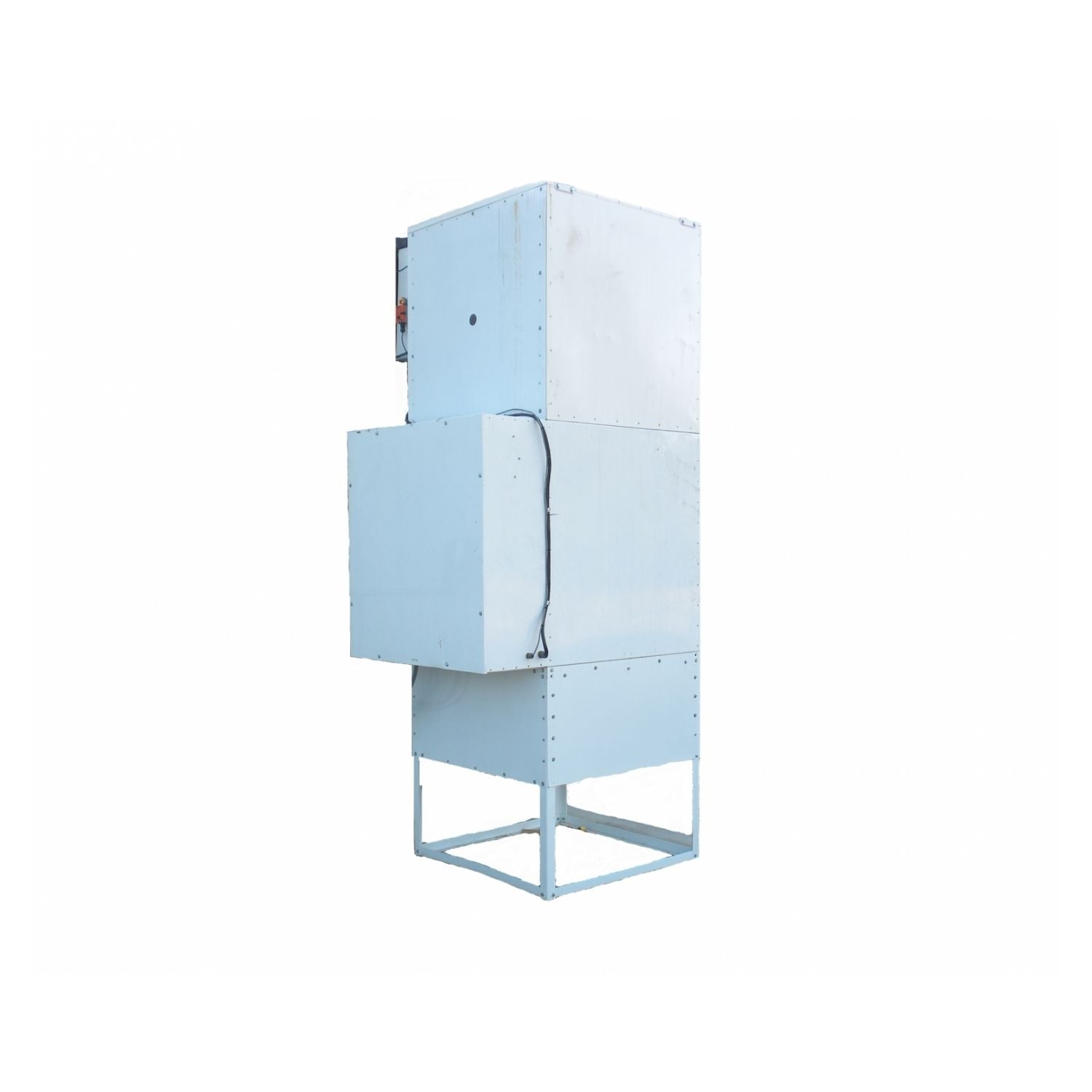

iDEAL Air Direct Fired AMU Heating System #RS-1001-1PH-230V-13K-10HP
| Model / Part Number | RS-1001-1PH-230V-13K-10HP (RAMMSTEIN) |
| Type | Direct-Fired Air Makeup Unit (AMU) |
| Fuel | Natural gas or LP |
| BTUH | 1.2 million |
| Airflow | 13,000 CFM |
| Electrical Service | 230V, single-phase |
| Ship Weight | 1,395 lb |
| Shipping Dimensions | 96 in L x 62 in W x 54 in H |
- Level, load-rated exterior mounting pad or roof curb per plans
- Confirm anchoring and structural requirements with the installation manual
- Designed for exterior/rooftop or side-wall mounting on the paint booth
- 230V single-phase service sized for a 10 HP intake motor and 5 HP exhaust VFD
- Have a licensed electrician confirm circuit sizing and run conduit before delivery
- Single-point connection with factory 30 ft umbilical cord simplifies final hookup
- Confirm clearance for the 96" L x 62" W x 54" H crate through your delivery path
- Vertical/side discharge configuration — verify duct routing to the booth plenum
- Ships via LTL freight, crated
iDEAL Air Direct Fired AMU Heating System — RS-1001
The RS-1001 is a direct-fired air makeup unit (AMU) built to supply heated makeup air to a paint spray booth, replacing air pulled from the shop by the booth's exhaust fan. Running on natural gas or LP with a rated 1.2 million BTUH output and 13,000 CFM airflow, it's sized for side-down and semi-down-draft paint booth configurations that require a plenum or canopy.
This 1PH-230V configuration is built for shops on single-phase electrical service that still need commercial-grade booth heating output. It uses the same 10 HP intake motor and 5 HP exhaust VFD rating as the standard 3-phase unit, just wired for 230V single-phase supply, and includes the deluxe control panel with hour meter, interlock status lights, and variable airflow control.
It's built for body shops and collision centers replacing or upgrading an aging AMU heater, and for facilities on single-phase power that don't want to pay for a phase converter or 3-phase service upgrade just to run a direct-fired heater.
Who It's Built For
- ✅ Collision repair and body shops running a side-down or semi-down-draft paint booth
- ✅ Facilities on 230V single-phase electrical service without 3-phase available
- ✅ Shops replacing an aging or failed AMU heater and standardizing on a factory-supported unit
What It's NOT Built For
- ❌ Booths needing electric-only heat with no gas/LP line — see the RS-3001-EHS-30KW electric AMU heater instead
- ❌ Facilities with 3-phase service already in place — the standard 3PH RS-1001 configuration may be a better electrical fit
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the RS-1001 Different
1.2 Million BTUH / 13,000 CFM Direct-Fired Output
The RS-1001 delivers 1.2M BTUH heat output at 13,000 CFM airflow on natural gas or LP fuel, sized for side-down and semi-down-draft booth models that require a plenum or canopy.
230V Single-Phase Electrical Configuration
This unit is wired for 230V single-phase power with a 10 HP intake motor and 5 HP exhaust VFD — the same motor ratings as the standard 3-phase RS-1001, adapted for shops without 3-phase service.
Deluxe Control Panel & VFD Technology
An ETL-listed deluxe control panel includes an hour meter, cycle/elapsed time displays, and interlock status indicator lights. The factory-fused and wired exhaust VFD adjusts fan speed to actual airflow conditions, cutting energy use and extending filter service life.
Single-Point Connection
A 30 ft umbilical cord and single-point connection design simplify field wiring during installation.
Finish & Configuration
Vertical/side discharge configuration with a durable white powder-coat finish, inside and out.
✅ Best For
- ✅ Body shops with 230V single-phase service that need commercial direct-fired booth heat
- ✅ Facilities standardizing on factory-supported iDEAL/CPI Rammstein Air equipment
- ✅ Side-down or semi-down-draft booths that require a plenum/canopy AMU heater
❌ Not Ideal For
- ❌ Shops wanting electric-only heat with no gas or LP supply
- ❌ Booths already fitted for 3-phase electrical infrastructure
Full Specifications — RS-1001-1PH-230V-13K-10HP
| Model / Part Number | RS-1001 |
| Fuel | Natural gas or LP |
| BTUH | 1.2 million |
| Gas Train | 1 in |
| Airflow (CFM) | 13,000 |
| Intake Motor | 230V, 10 HP, single-phase |
| Exhaust VFD | 230V, 5 HP, single-phase |
| PSB Model Usage | Side Down & Semi Down Draft (plenum/canopy required) |
| Ship Weight | 1,395 lb |
| Crate Dimensions | 96 in L x 62 in W x 54 in H |
| Control Panel | ETL-listed deluxe panel, hour meter, interlock status lights |
| Connection | Single-point connection, 30 ft umbilical cord |
| Finish | White powder coat, inside and outside |
⚠️ Installation Requirements
- Electrical: 230V single-phase service sized for a 10 HP intake motor and 5 HP exhaust VFD; use a licensed electrician.
- Mounting: Exterior/rooftop or side-wall mount per the installation manual; confirm structural support.
- Ducting: Vertical/side discharge — confirm duct routing to your booth's plenum or canopy before delivery.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate setup.
iDEAL Warranty — RS-1001
The RS-1001 is backed by the manufacturer's published Limited Warranty for Rammstein Air heating systems.
| Component | Coverage Term |
|---|---|
| Parts (workmanship / materials defects, normal use) | 12 months from installation date, or 14 months from ship date — whichever comes first |
| On-site labor | Not covered |
| Filters (consumable) | Not covered |
| Damage from improper installation or alteration | Not covered |
| Coverage validity | Requires online product registration within 30 days of installation |
Full terms are in the manufacturer's installation and maintenance manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — RS-1001
Does the RS-1001 price include shipping?
Yes. The advertised price includes delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What electrical service does this AMU heater need?
It runs on 230V single-phase power sized for a 10 HP intake motor and 5 HP exhaust VFD. Have a licensed electrician confirm your circuit before delivery.
What fuel does the RS-1001 use?
Natural gas or LP (propane), rated at 1.2 million BTUH with 13,000 CFM airflow.
What booth types is this AMU heater compatible with?
It's designed for side-down and semi-down-draft paint booth models that require a plenum or canopy.
Why Buy the RS-1001 from Alamo Equipment & Service?
- Freight is included. The advertised price includes delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate installation of your RS-1001 AMU heater.
- We service it. Questions after delivery? Call (817) 865-3707.
