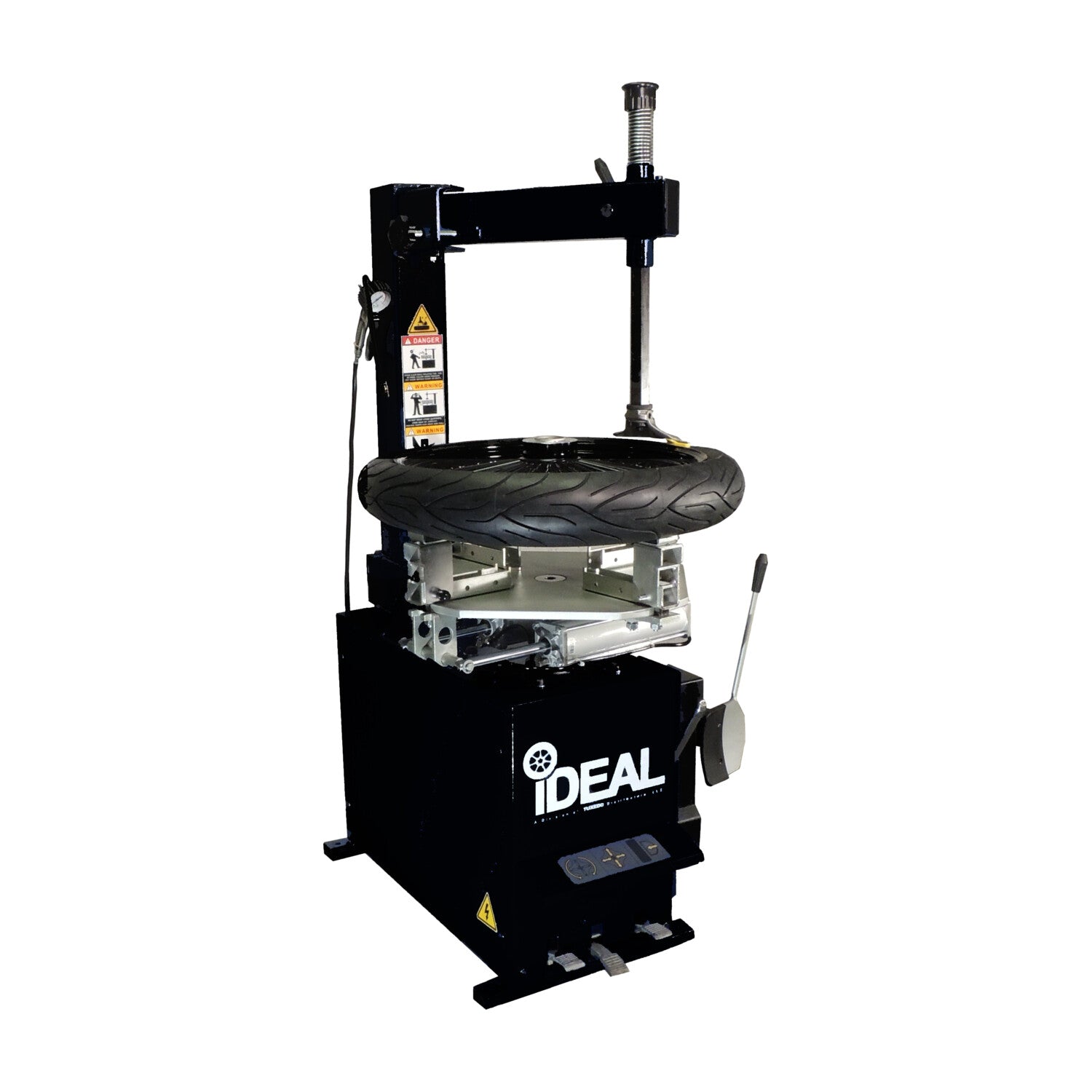

iDEAL Motorcycle / ATV Tire Changer - BLACK #TC-400M-B-iDEAL-BLK
| Model / Part Number | TC-400M-B-iDEAL-BLK |
| Type | Motorcycle / powersport tire changer, swing-arm design, black finish |
| Max Wheel Diameter | 37 in |
| Max Wheel Width | 10 in |
| Outside Rim Clamp Range | 6 in – 24 in |
| Power Supply | 110V, 15A, single-phase |
| Bead Breaker Force | 5,500 lb |
| Working Pressure | 125 psi |
| Ship Weight | 470 lb |
- Level shop floor rated for a 470 lb tire changer
- Indoor use; no special anchoring required for standard operation
- 110V, 15A, single-phase electrical service for the table rotation motor
- 125 psi compressed air supply for the pneumatic bead breaker and clamps
- Regulator, oiler, and water trap are included with the unit
- Allow clearance for the swing-arm mounting head and hand-held inflation gun operation
- Confirm floor space for wheel/tire staging around the unit
- Ships via LTL freight
iDEAL Motorcycle / ATV Tire Changer, BLACK — TC-400M-B-iDEAL-BLK
The TC-400M-B-iDEAL-BLK is the black-finish version of iDEAL's TC-400M-B-iDEAL swing-arm tire changer, built specifically for motorcycle, ATV, and other powersport wheel and tire service. It handles wheels up to 37 in diameter and 10 in width, with an outside rim clamping range of 6 in to 24 in covering most standard powersport rim sizes.
Mechanically and functionally it is the same machine as the standard TC-400M-B-iDEAL — four adjustable clamps, powerful double-acting pneumatic cylinders, plastic clamp covers that protect wheels from scratching, a 5,500 lb bead breaker, electric table rotation, and an easy-to-use hand-held inflation gun. A regulator, oiler, and water trap are included. The only difference is the black powder-coat finish in place of the standard color.
It's built for powersport dealerships, motorcycle/ATV repair shops, and general repair facilities that want dedicated motorcycle and ATV tire service capability with a black-finish machine to match shop equipment or branding preferences.
Who It's Built For
- ✅ Powersport dealerships and motorcycle/ATV repair shops that prefer a black-finish machine
- ✅ General repair shops adding dedicated motorcycle/ATV tire service capability
- ✅ Shops wanting wheel-safe clamping (plastic-protected) for finished powersport rims
What It's NOT Built For
- ❌ Passenger car or light-truck tire service — this unit is sized for powersport wheels up to 37 in diameter / 10 in width
- ❌ Shops without 110V single-phase power or a 125 psi compressed air supply at the point of use
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-400M-B-iDEAL-BLK Different
Same Machine, Black Finish
The TC-400M-B-iDEAL-BLK is the identical TC-400M-B-iDEAL tire changer in a black powder-coat finish — same clamping range, same bead breaker force, same power and air requirements. Choose it when you want the black finish to match other shop equipment.
6–24" Outside Clamping Range, Swing-Arm Design
Four adjustable clamps cover a 6 in to 24 in outside rim clamping range, sized for most standard motorcycle and ATV rims, handling wheels up to 37 in diameter and 10 in width.
Powerful Clamping & Bead Breaker
Double-acting pneumatic cylinders provide powerful clamping force, with plastic clamp covers that protect wheel finishes from scratching. The bead breaker is rated at 5,500 lb of force.
Power & Air Requirements
Runs on 110V, 15A, single-phase power for the electric table rotation, plus a 125 psi compressed air supply for the pneumatic clamps and bead breaker. A regulator, oiler, and water trap are included.
Footprint
Ship weight is 470 lb; confirm floor space around the unit for wheel/tire staging and clamp clearance before ordering.
✅ Best For
- ✅ Powersport-focused shops needing dedicated motorcycle/ATV tire service
- ✅ Facilities with 110V single-phase power and 125 psi shop air available
- ✅ Shops that want the black-finish version to match other equipment
❌ Not Ideal For
- ❌ Passenger car or light-truck tire service
- ❌ Shops without adequate compressed air supply for the pneumatic clamps/bead breaker
TC-400M-B-iDEAL-BLK vs. TC-400M-B-iDEAL (Standard Finish)
These are the same tire changer — identical clamping range, bead breaker force, power/air requirements, and included accessories. The BLK model has a black powder-coat finish; the standard model ships in iDEAL's standard finish. Pick whichever finish suits your shop.
TC-400M-B-iDEAL-BLK vs. TC-400M-B-PL230-K-BLK (Assist Arm)
The PL230-K-BLK is this same black-finish machine with a factory-installed assist arm added for easier handling of larger, heavier powersport wheels — it ships about 60 lb heavier as a result. Choose the base BLK model if you don't need the assist arm; choose PL230-K-BLK if your shop regularly handles bigger ATV/UTV wheels and wants the extra handling support.
Full Specifications — TC-400M-B-iDEAL-BLK
| Model / Part Number | TC-400M-B-iDEAL-BLK |
| Type | Motorcycle / powersport tire changer, swing-arm design, black finish |
| Max Wheel Diameter | 37 in |
| Max Wheel Width | 10 in |
| Outside Rim Clamp Range | 6 in – 24 in |
| Clamps | 4 adjustable, double-acting pneumatic, plastic-protected |
| Bead Breaker Force | 5,500 lb |
| Power Supply | 110V, 15A, single-phase |
| Working Pressure | 125 psi |
| Included | Regulator, oiler, water trap, hand-held inflation gun |
| Table Rotation | Electric |
| Finish | Black powder-coat |
| Ship Weight | 470 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 470 lb tire changer; no special anchoring required.
- Electrical: 110V, 15A, single-phase circuit for the table rotation motor.
- Compressed air: 125 psi shop air supply for the pneumatic clamps and bead breaker.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate setup.
Warranty — TC-400M-B-iDEAL-BLK
For exact warranty terms and coverage on the TC-400M-B-iDEAL-BLK, please contact Alamo Equipment at (817) 865-3707.
❓ Frequently Asked Questions — TC-400M-B-iDEAL-BLK
Does the TC-400M-B-iDEAL-BLK price include shipping?
Yes. The advertised price includes delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's different between the BLK and the standard TC-400M-B-iDEAL?
Only the finish. The BLK model has a black powder-coat finish; specs, clamping range, and bead breaker force are identical to the standard model.
What size wheels does this tire changer handle?
Up to 37 in wheel diameter, 10 in width, with a 6 in–24 in outside rim clamping range.
What power and air does it need?
110V, 15A single-phase electrical service and a 125 psi compressed air supply. A regulator, oiler, and water trap are included.
