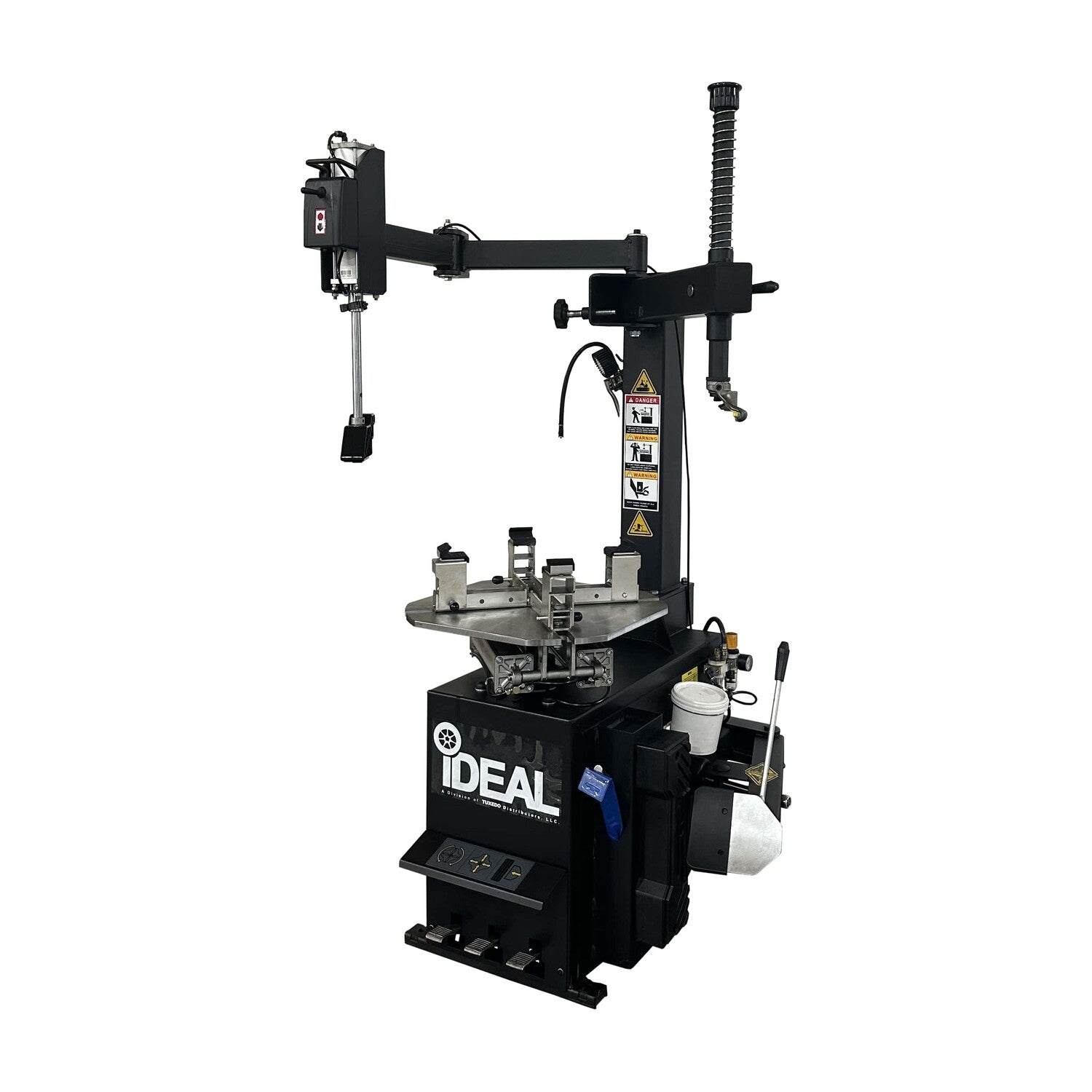

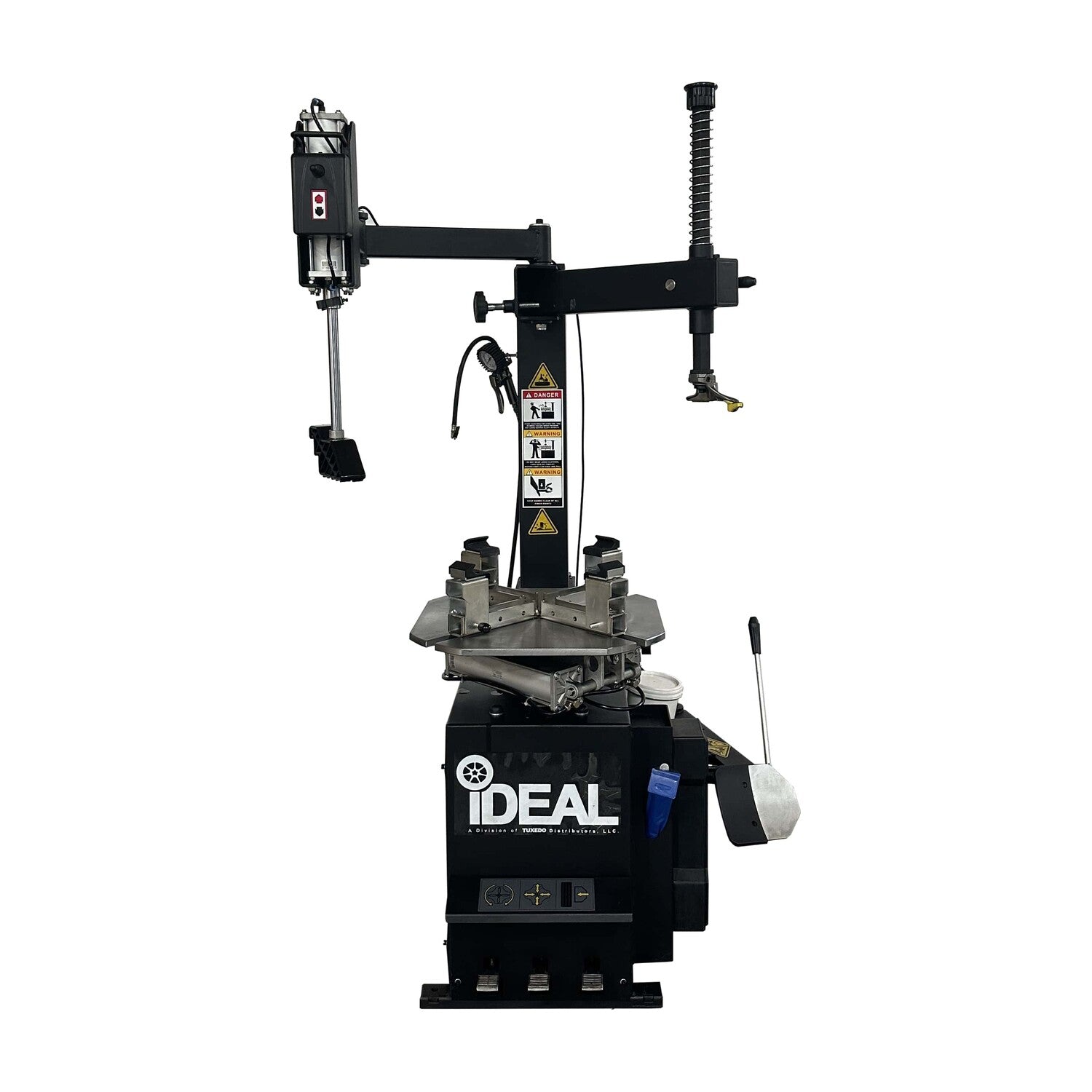

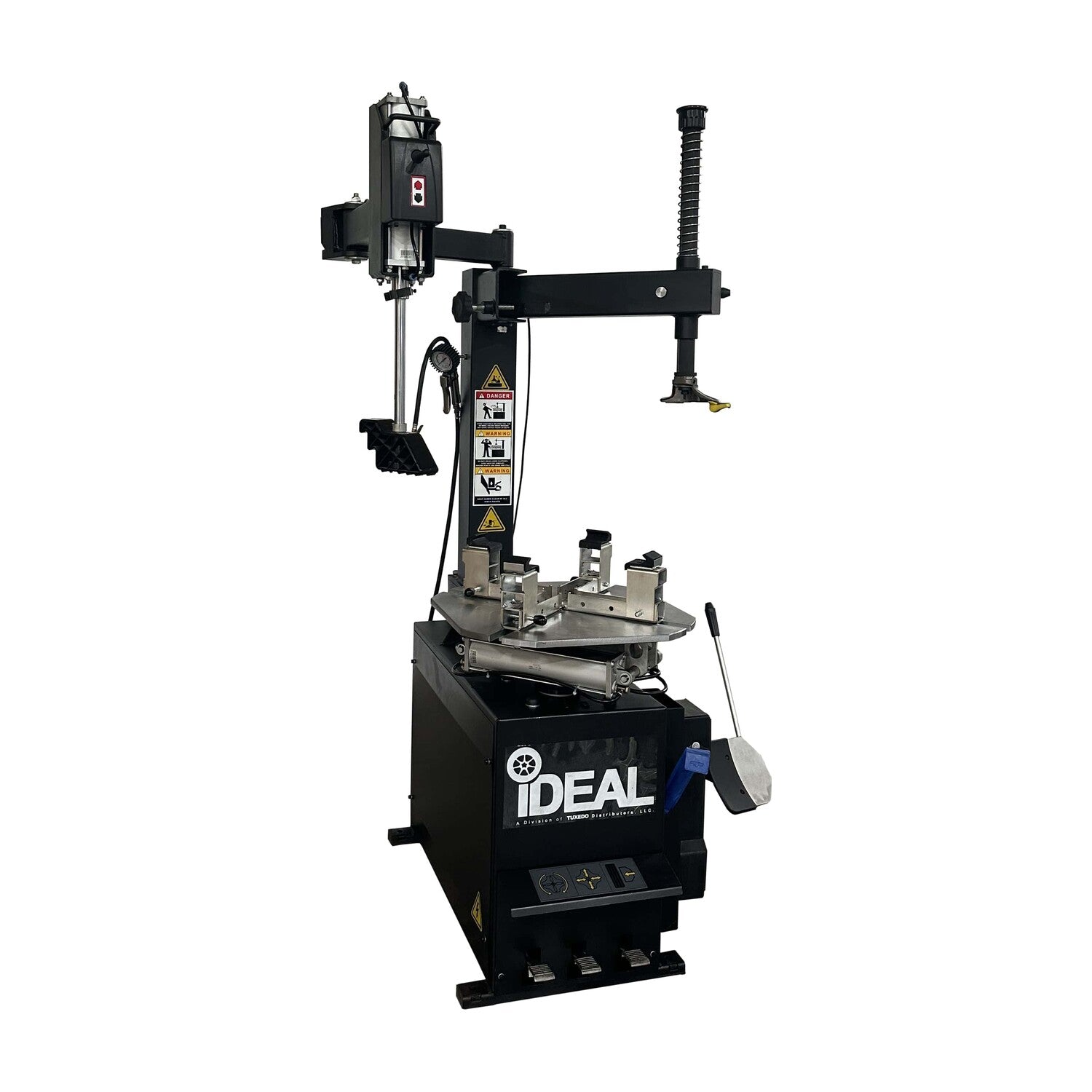

iDEAL Motorcycle / ATV Tire Changer w/ Assist #TC-400M-B-PL230-K
| Model / Part Number | TC-400M-B-PL230-K |
| Type | Motorcycle / powersport tire changer w/ assist arm, swing-arm design, standard finish |
| Max Wheel Diameter | 37 in |
| Max Wheel Width | 10 in |
| Outside Rim Clamp Range | 6 in – 24 in |
| Power Supply | 110V, 15A, single-phase |
| Bead Breaker Force | 5,500 lb |
| Working Pressure | 125 psi |
| Ship Weight | 530 lb |
- Level shop floor rated for a 530 lb tire changer with assist arm
- Indoor use; no special anchoring required for standard operation
- 110V, 15A, single-phase electrical service for the table rotation motor
- 125 psi compressed air supply for the pneumatic bead breaker, clamps, and assist arm
- Regulator, oiler, and water trap are included with the unit
- Allow extra clearance for the front-mounted assist arm swing radius in addition to the swing-arm mounting head
- Confirm floor space for wheel/tire staging around the unit
- Ships via LTL freight
iDEAL Motorcycle / ATV Tire Changer w/ Assist Arm — TC-400M-B-PL230-K
The Tuxedo TC-400M-B-PL230-K is the standard-finish TC-400M-B-iDEAL powersport tire changer with a factory-installed assist arm added, built for motorcycle, ATV, and other powersport wheel and tire service. It handles wheels up to 37 in diameter and 10 in width, with an outside rim clamping range of 6 in to 24 in covering most standard powersport rim sizes.
It carries the same core machine as the standard TC-400M-B-iDEAL — four adjustable clamps, double-acting pneumatic cylinders, plastic clamp covers, a 5,500 lb bead breaker, electric table rotation, and a hand-held inflation gun — plus a front-mounted assist arm that helps steady and support larger, heavier powersport wheels during mounting and demounting. The added arm brings ship weight to 530 lb, about 60 lb more than the base machine. A regulator, oiler, and water trap are included.
It's built for powersport dealerships, motorcycle/ATV repair shops, and general repair facilities that regularly handle larger or heavier ATV/UTV wheels and want the assist arm's extra handling support, in iDEAL's standard equipment finish.
Who It's Built For
- ✅ Powersport dealerships and motorcycle/ATV repair shops handling larger, heavier ATV/UTV wheels
- ✅ Shops that want the assist arm's extra handling support during mounting and demounting
- ✅ Facilities that prefer iDEAL's standard equipment finish
What It's NOT Built For
- ❌ Passenger car or light-truck tire service — this unit is sized for powersport wheels up to 37 in diameter / 10 in width
- ❌ Shops without 110V single-phase power or a 125 psi compressed air supply at the point of use
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the TC-400M-B-PL230-K Different
Factory Assist Arm Included
The TC-400M-B-PL230-K adds a front-mounted assist arm to the base TC-400M-B machine, helping steady and support larger, heavier powersport wheels during mounting and demounting. This is the main functional difference from the base TC-400M-B-iDEAL model.
6–24" Outside Clamping Range, Swing-Arm Design
Four adjustable clamps cover a 6 in to 24 in outside rim clamping range, sized for most standard motorcycle and ATV rims, handling wheels up to 37 in diameter and 10 in width.
Powerful Clamping & Bead Breaker
Double-acting pneumatic cylinders provide powerful clamping force, with plastic clamp covers that protect wheel finishes from scratching. The bead breaker is rated at 5,500 lb of force.
Power & Air Requirements
Runs on 110V, 15A, single-phase power for the electric table rotation, plus a 125 psi compressed air supply for the pneumatic clamps, bead breaker, and assist arm. A regulator, oiler, and water trap are included.
Footprint
Ship weight is 530 lb with the assist arm installed; confirm floor space around the unit, including the assist arm's swing radius, before ordering.
✅ Best For
- ✅ Shops regularly handling larger, heavier ATV/UTV wheels that benefit from assist-arm support
- ✅ Facilities with 110V single-phase power and 125 psi shop air available
- ✅ Shops that prefer the standard iDEAL finish
❌ Not Ideal For
- ❌ Passenger car or light-truck tire service
- ❌ Shops without adequate compressed air supply for the pneumatic clamps/bead breaker/assist arm
- ❌ Shops with no need for extra wheel-handling support — a base powersport tire changer is a lower-cost fit
TC-400M-B-PL230-K vs. WB-953-B-MCAB-K — Tire Changer or Wheel Balancer?
These serve different jobs in the same wheel-service bay, not competing options.
| Decision Point | TC-400M-B-PL230-K | WB-953-B-MCAB-K |
|---|---|---|
| Function | Mounts and demounts tires from the rim | Balances a mounted wheel/tire assembly |
| Max wheel/tire size | 37 in wheel diameter, 10 in width | 39 in tire diameter (auto), 14.5–32 in (motorcycle) |
| Power requirement | 110V, 15A single-phase + 125 psi air | 110V, 15A single-phase (no air required) |
| Typical pairing | Paired with a wheel balancer to complete the job | Paired with a tire changer to complete the job |
Most powersport service bays need both: the TC-400M-B-PL230-K to mount/demount tires and a WB-953-B-MCAB-K to balance them afterward. Call (817) 865-3707 if you're outfitting a full wheel-service bay.
Full Specifications — TC-400M-B-PL230-K
| Model / Part Number | TC-400M-B-PL230-K |
| Type | Motorcycle / powersport tire changer w/ assist arm, swing-arm design, standard finish |
| Max Wheel Diameter | 37 in |
| Max Wheel Width | 10 in |
| Outside Rim Clamp Range | 6 in – 24 in |
| Clamps | 4 adjustable, double-acting pneumatic, plastic-protected |
| Bead Breaker Force | 5,500 lb |
| Power Supply | 110V, 15A, single-phase |
| Working Pressure | 125 psi |
| Included | Regulator, oiler, water trap, hand-held inflation gun, front-mounted assist arm |
| Table Rotation | Electric |
| Finish | Standard iDEAL finish |
| Ship Weight | 530 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a 530 lb tire changer with assist arm; no special anchoring required.
- Electrical: 110V, 15A, single-phase circuit for the table rotation motor.
- Compressed air: 125 psi shop air supply for the pneumatic clamps, bead breaker, and assist arm.
- Clearance: Allow extra room for the assist arm's swing radius at the front of the unit.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate setup.
Warranty — TC-400M-B-PL230-K
For exact warranty terms and coverage on the TC-400M-B-PL230-K, please contact Alamo Equipment at (817) 865-3707.
❓ Frequently Asked Questions — TC-400M-B-PL230-K
Does the TC-400M-B-PL230-K price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What does the assist arm do?
The front-mounted assist arm helps steady and support larger, heavier powersport wheels during mounting and demounting — useful for bigger ATV/UTV wheels.
What size wheels does this tire changer handle?
Up to 37 in wheel diameter, 10 in width, with a 6 in–24 in outside rim clamping range.
What power and air does it need?
110V, 15A single-phase electrical service and a 125 psi compressed air supply. A regulator, oiler, and water trap are included.
What's the difference between this and the black-finish version?
Both are the same assist-arm-equipped machine with identical specs — the only difference is finish. This model ships in iDEAL's standard finish; the -BLK variant ships with a black powder-coat finish.
