Tuxedo UTV Frame Lift - BLACK #UF-2500EH-X-BLK
| Model / Part Number | UF-2500EH-X-BLK |
| Capacity | 2,500 lb |
| Type | UTV/ATV frame lift (black finish) |
| Overall Length w/ Ramp | 67 in – 88-7/8 in |
| Overall Width | 24 in |
| Max Lifting Height | 43 in (49 in w/ rubber lift pads) |
| Min Height | 4-3/4 in |
| Power | 110V, 60Hz, 1PH, 18A |
| Ship Weight | 740 lb |
- Level indoor shop floor rated for a loaded 740 lb+ unit
- Portable stand or fixed pedestal-mount control stand — anchoring optional depending on setup
- 110V, 60Hz, 1PH, 18A electrical service for the electric/hydraulic power unit
- Have a qualified electrician run the circuit if needed
- Confirm 67 in–88-7/8 in extended length and 24 in width clears your bay
- Allow room for the hinged "flip-up" platform extensions on the largest UTVs
- Ships via LTL freight
UF-2500EH-X-BLK — 2,500 lb UTV Frame Lift — BLACK finish

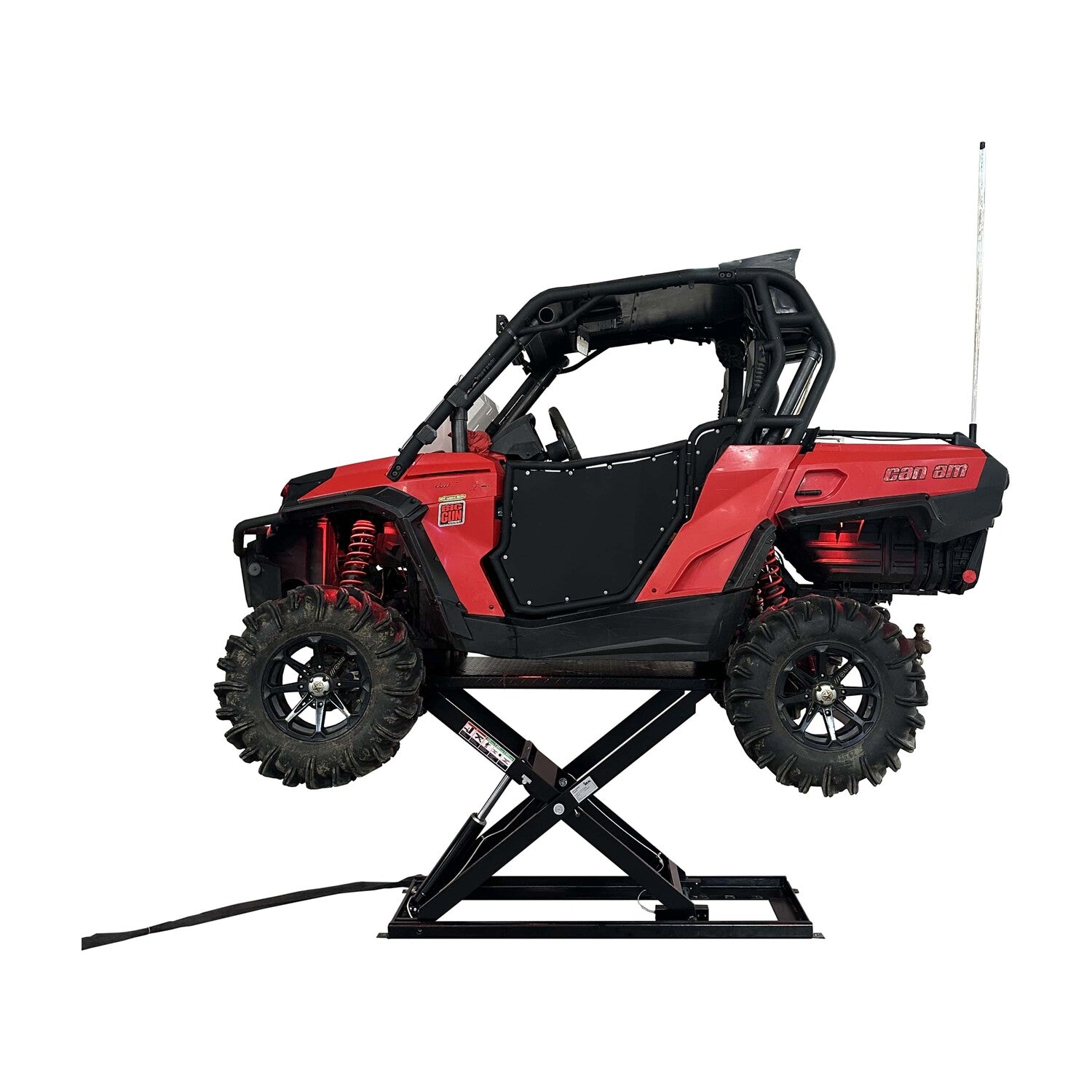

The UF-2500EH-X-BLK is a 2,500 lb "frame-engaging" UTV/ATV lift built to service the largest utility and all-terrain power sport vehicles for wheel, suspension, and undercarriage work. Its exclusive frame-engaging design and hinged "flip-up" platform extensions accommodate wide UTV track widths that a standard motorcycle-style lift can't handle.

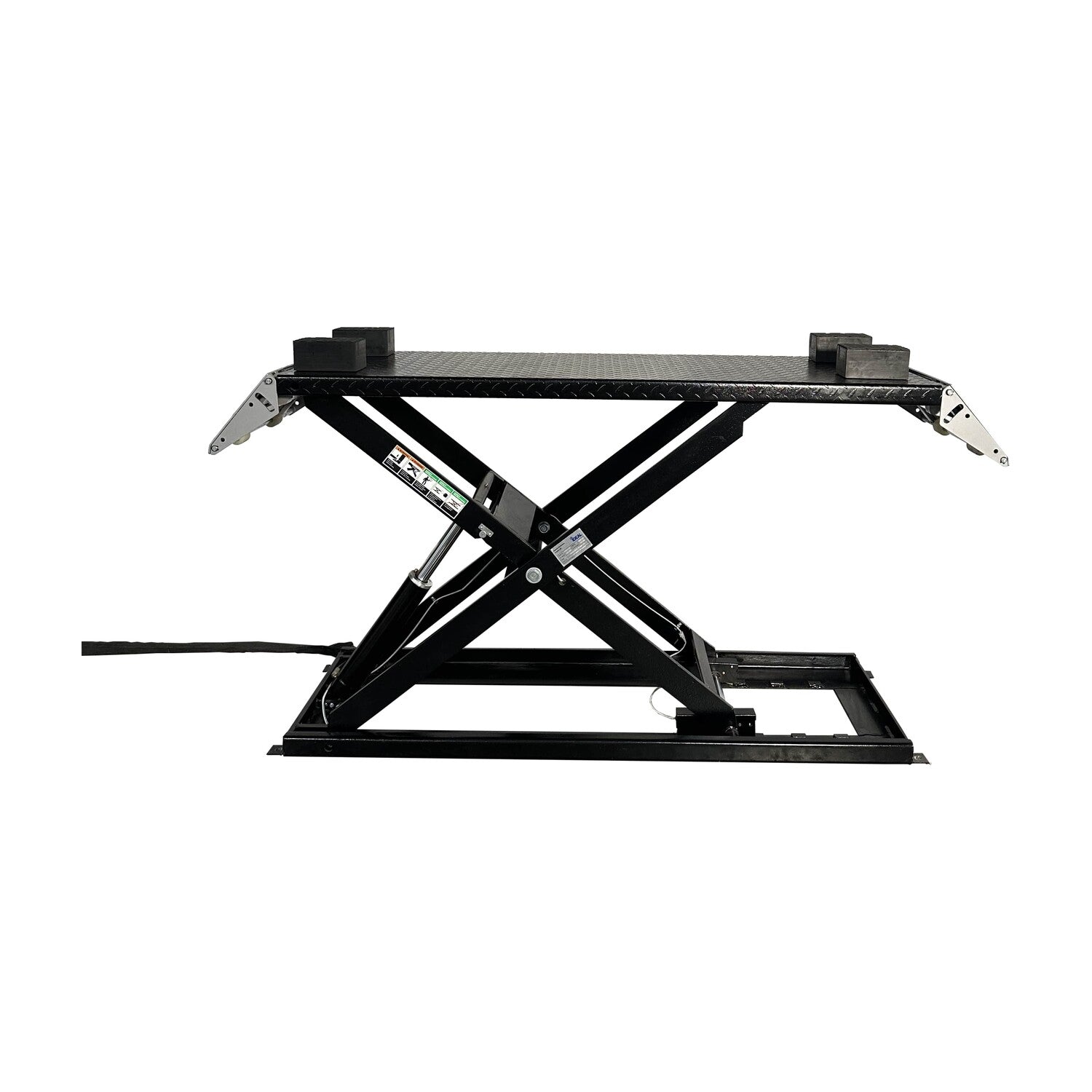

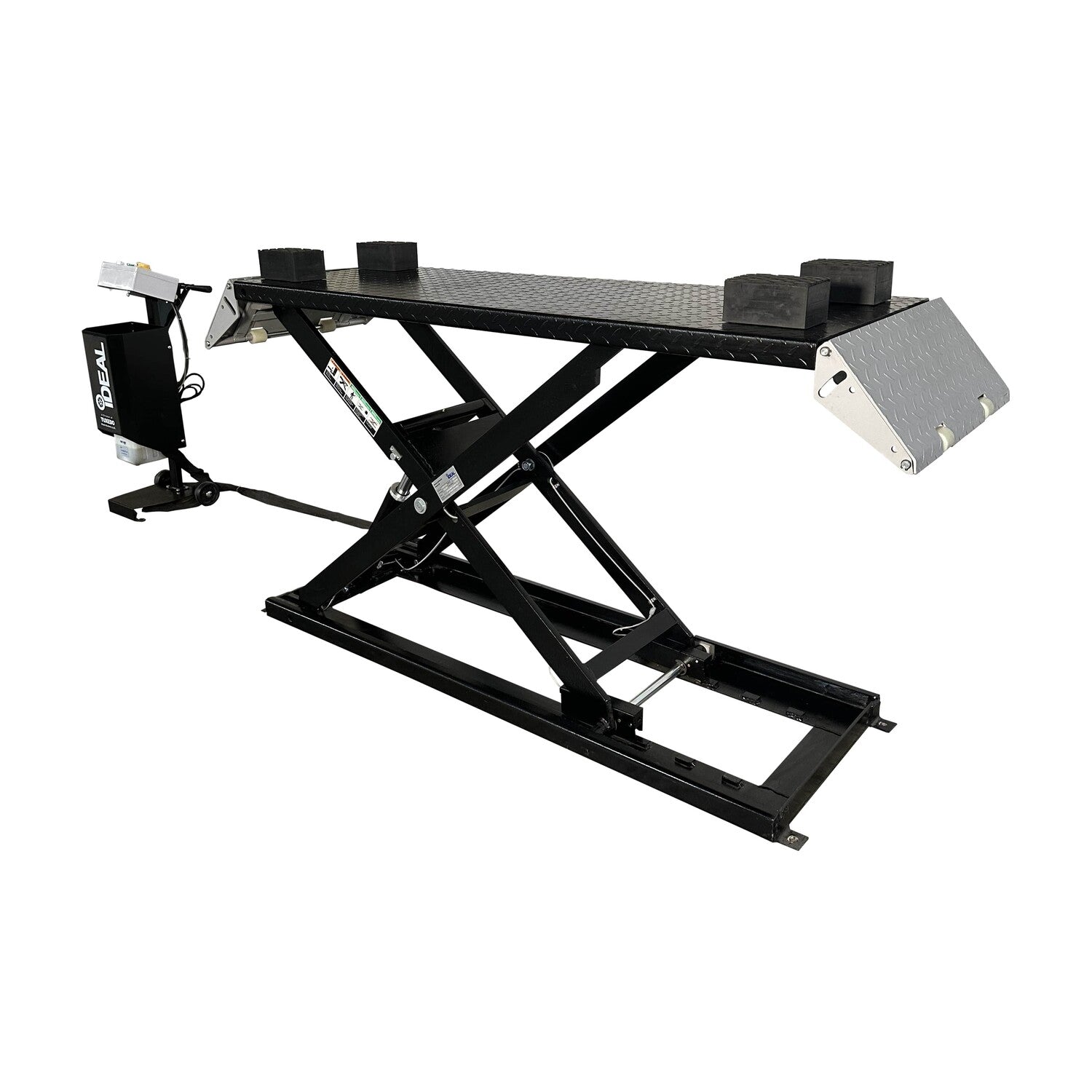

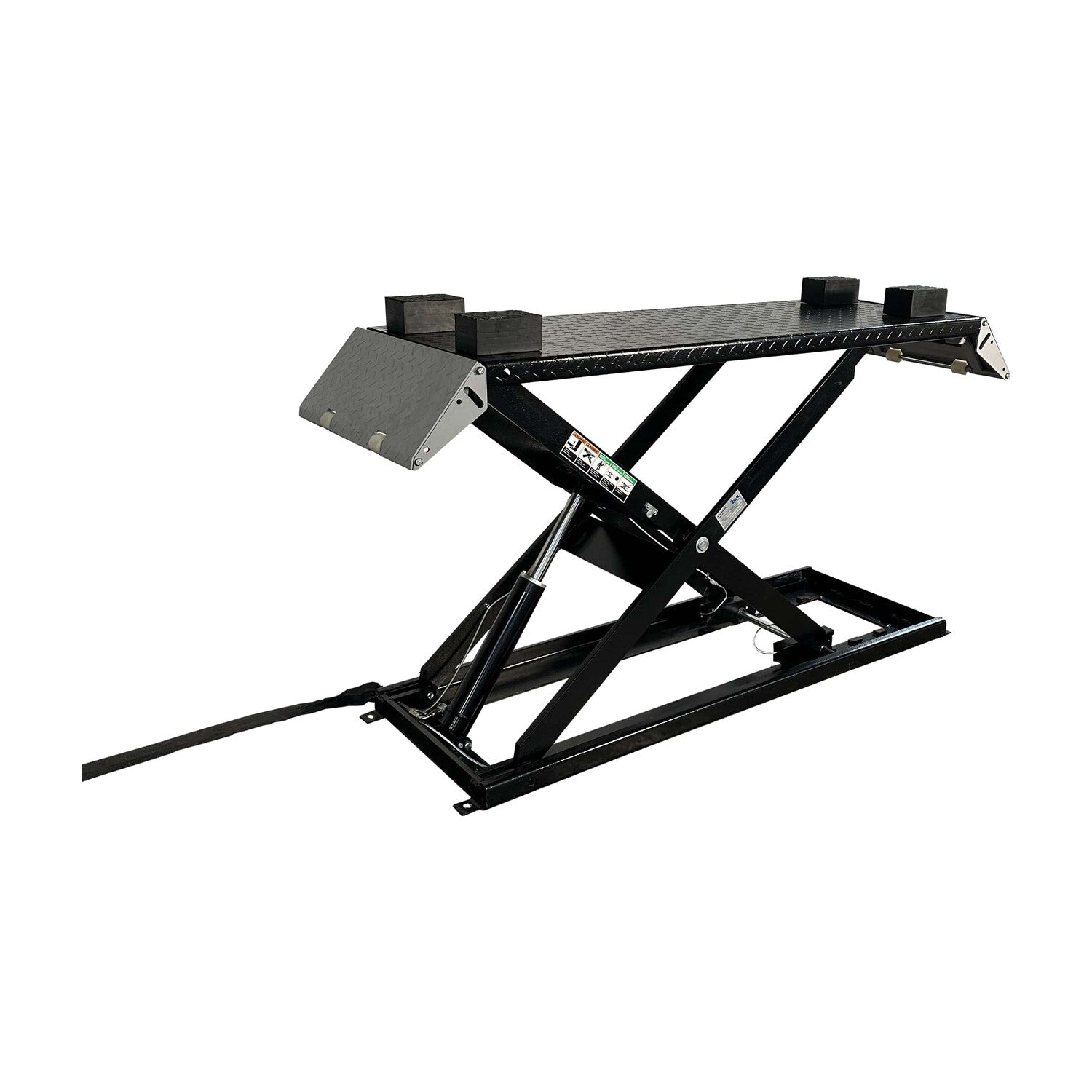

Smooth 110V electric/hydraulic operation (no air compressor required) raises the heavy-duty diamond-plate platform to a 43 in maximum lift height (49 in with the rubber lift pads), with three locking positions and an electro-magnetic lock release on the control panel.

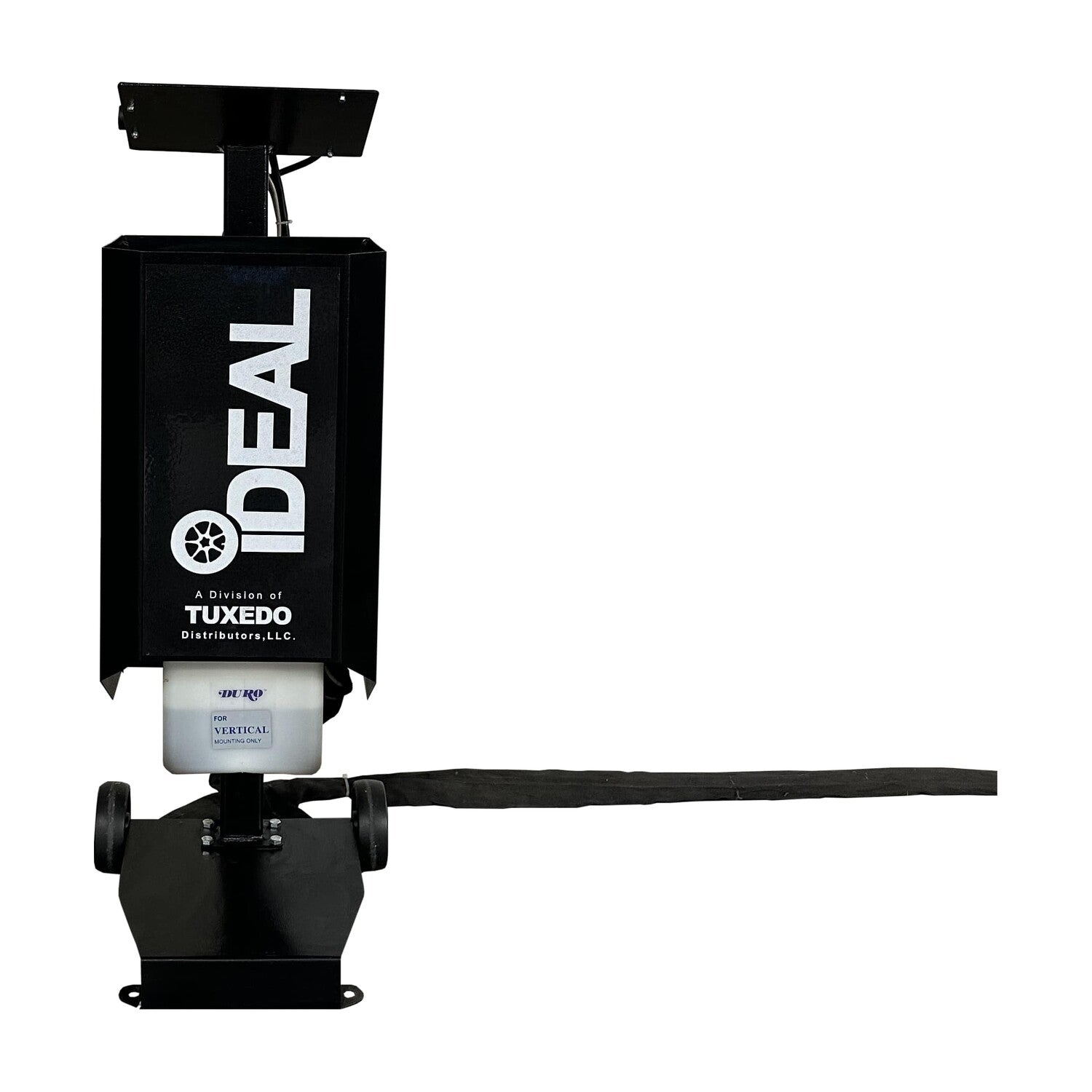

The small lift footprint keeps more of your bay open for other work, and the control stand can run portable or mounted to a fixed pedestal depending on how your shop is set up.
Who It's Built For
- ✅ Powersport shops servicing the largest UTVs — not just ATVs and motorcycles
- ✅ Techs needing wheels-free undercarriage/suspension access on wide-track vehicles
- ✅ Bays that want a small lift footprint to keep the rest of the floor open
What It's NOT Built For
- ❌ Loads over 2,500 lb
- ❌ Shops without 110V, 60Hz, 1PH, 18A electrical service available at the bay
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the UF-2500EH-X-BLK Different
Frame-Engaging Design for the Largest UTVs
Unlike a standard motorcycle-style lift, the UF-2500EH-X-BLK's "wheels free" frame-engaging design and load-bearing hinged platform extensions are built specifically to handle the widest UTV track widths, not just ATVs and smaller machines.
Quiet 110V Electric/Hydraulic Operation
No shop air compressor is required — the 110V electric/hydraulic power unit runs smooth and quiet, with a fully operational control panel and electro-magnetic lock release for the three locking positions.
Small Footprint, Portable or Fixed
The lift's small footprint frees up bay space, and the control stand can be used portable or mounted to a fixed pedestal depending on your shop layout.
Heavy-Duty Diamond Plate Construction
The platform and extensions use heavy-duty diamond plate with a durable powder-coat finish in black, built to hold up to shop use.
✅ Best For
- ✅ Powersport shops that need to service wide-track UTVs, not just ATVs
- ✅ Bays with 110V service and limited floor space
❌ Not Ideal For
- ❌ Loads over 2,500 lb
- ❌ Shops that only service motorcycles — see Tuxedo's dedicated motorcycle lift line instead
Full Specifications — UF-2500EH-X-BLK
| Model / Part Number | UF-2500EH-X-BLK |
| Capacity | 2,500 lb |
| Min. Height | 4-3/4 in |
| Max Lifting Height | 43 in (49 in w/ rubber lift pads) |
| Overall Length w/ Ramp | 67 in – 88-7/8 in |
| Overall Width | 24 in |
| Platform Size (L x W) | 67 in x 24 in |
| Lifting Time | 25 sec |
| Lowering Time | 25 sec |
| Power | 110V, 60Hz, 1PH, 18A |
| Ship Weight | 740 lb |
| Rubber Contact Lift Pads | 4-3/4 in x 6.5 in (4ea) |
| Finish | Black powder-coat |

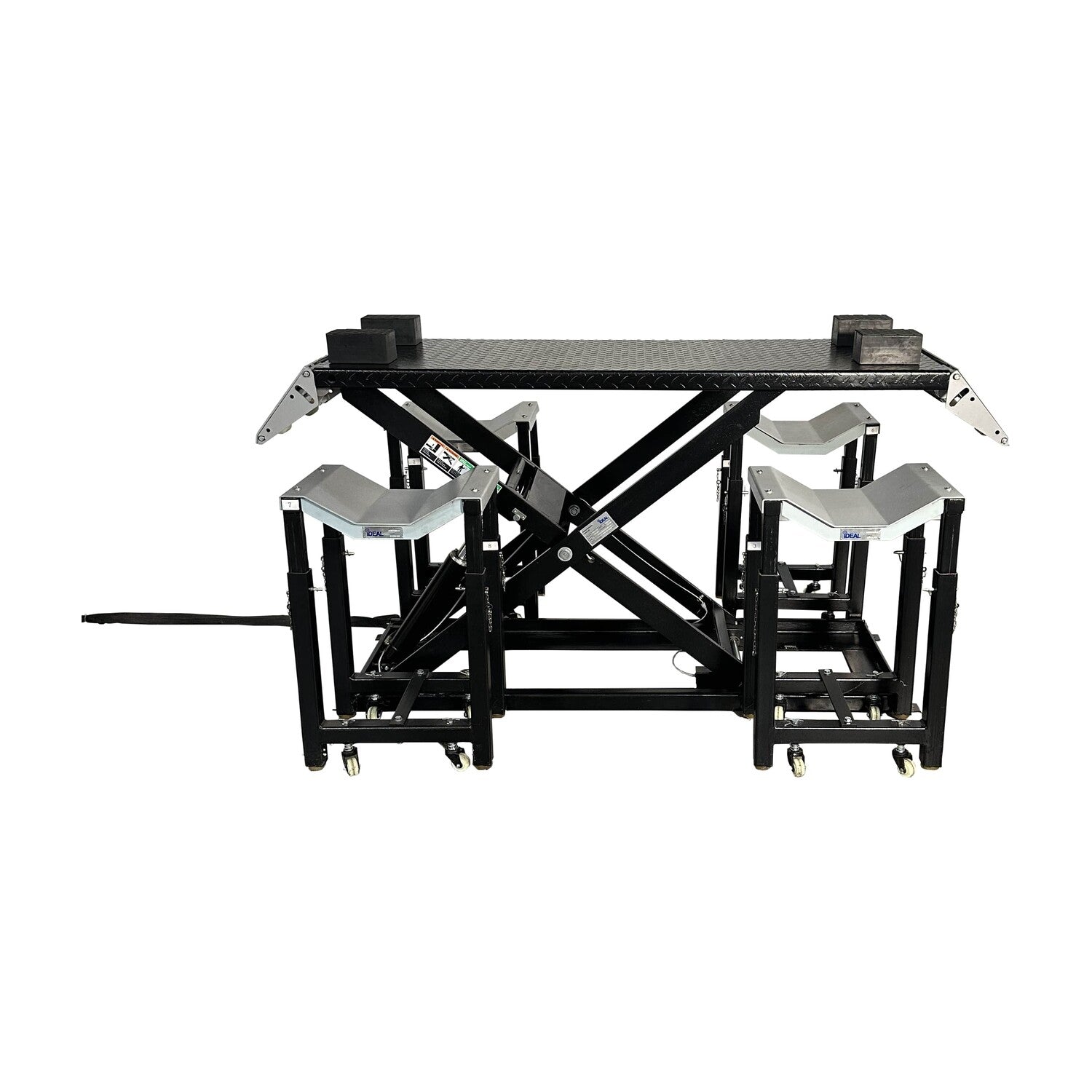

| Accessory Option | WHLSTDKIT-UF2500EH-X wheel stand kit (sold separately) |
⚠️ Installation Requirements
- Floor: Level indoor shop floor rated for a loaded unit.
- Electrical: 110V, 60Hz, 1PH, 18A circuit for the electric/hydraulic power unit.
- Bay footprint: Confirm 67 in–88-7/8 in extended length and 24 in width against your bay.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup guidance.
Warranty — UF-2500EH-X-BLK
The UF-2500EH-X-BLK is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (columns, top rail, uprights, arms, swivel pins, legs, carriages, tracks, overhead beam, cross rails) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full manufacturer warranty terms match the standard iDEAL/Tuxedo Limited Warranty confirmed directly from manufacturer manuals across this equipment line; this specific SKU's manual link on the manufacturer's current site is inactive, so the terms above were corroborated via an authorized reseller listing reproducing Tuxedo's own warranty language verbatim rather than a fresh direct PDF citation.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — UF-2500EH-X-BLK
Does the UF-2500EH-X-BLK price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What size UTVs can it handle?
The frame-engaging design and hinged flip-up platform extensions are built specifically for the largest utility and all-terrain vehicles, up to the lift's 2,500 lb capacity.
Does it need shop air?
No — it runs on 110V electric/hydraulic power only. No air compressor is required.
What is the UF-2500EH-X-BLK's warranty?
Tuxedo backs the UF-2500EH-X with the standard iDEAL/Tuxedo Limited Warranty: 5-year structural coverage plus 1-year parts coverage to the original purchaser in the US and Canada.
Why Buy the UF-2500EH-X-BLK from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
