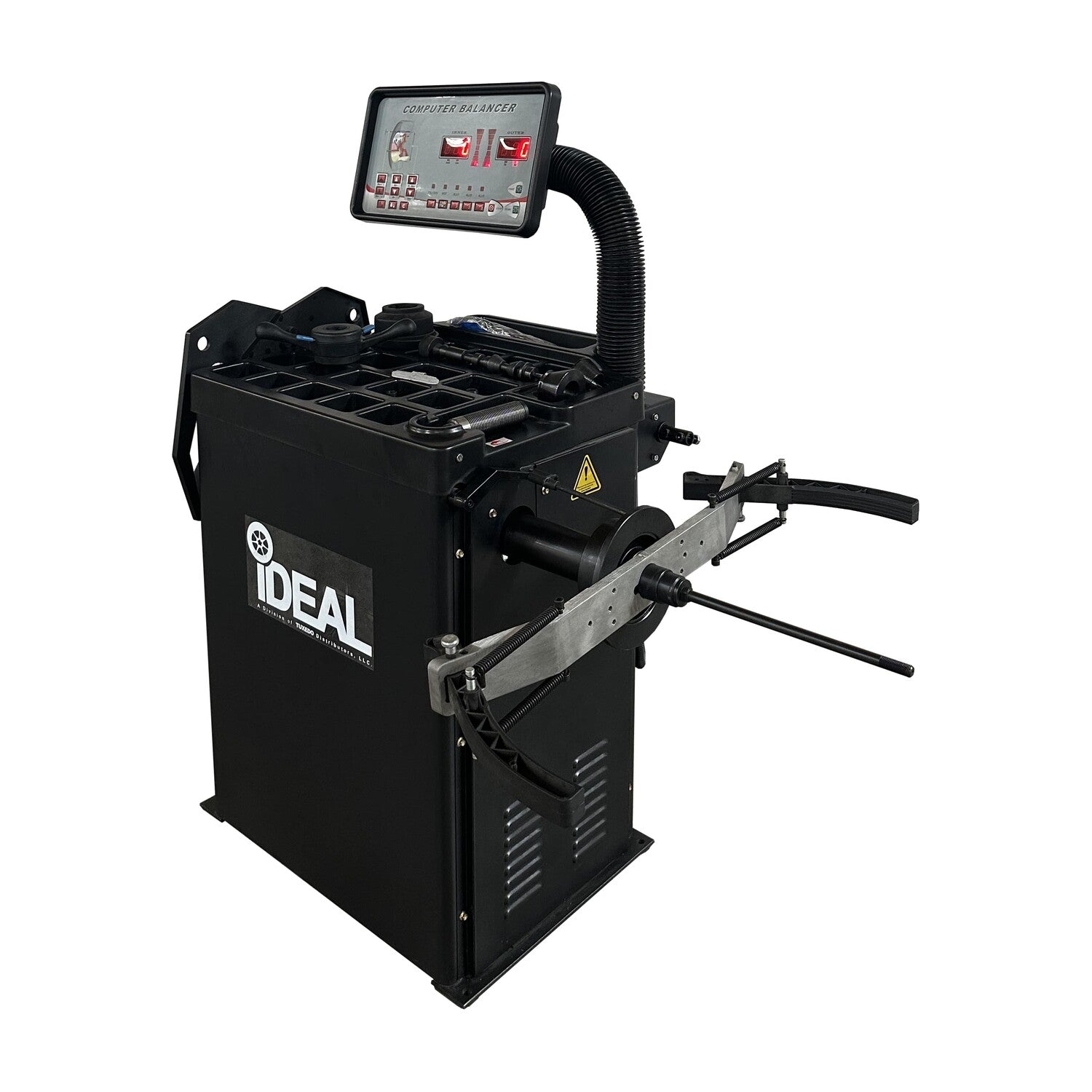

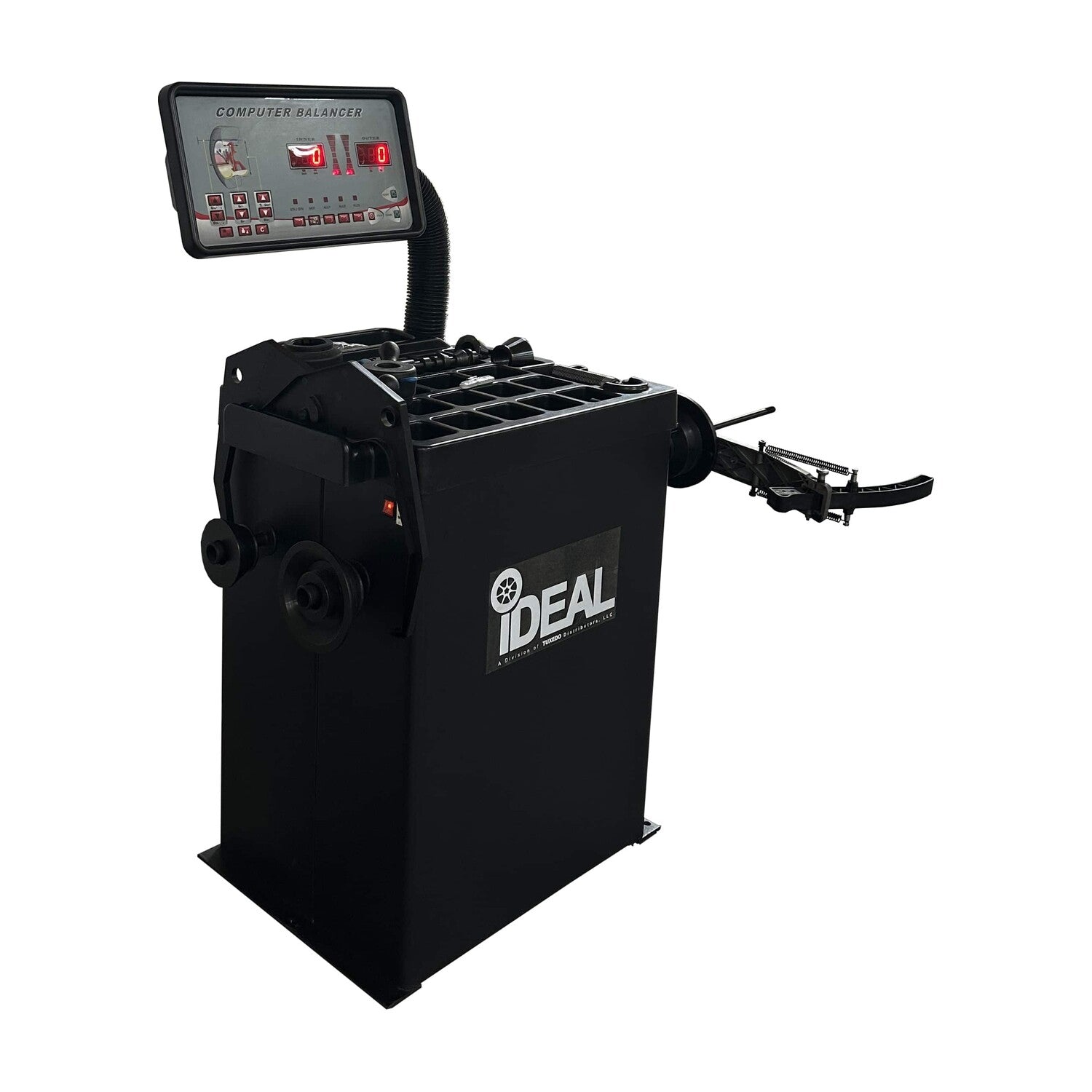

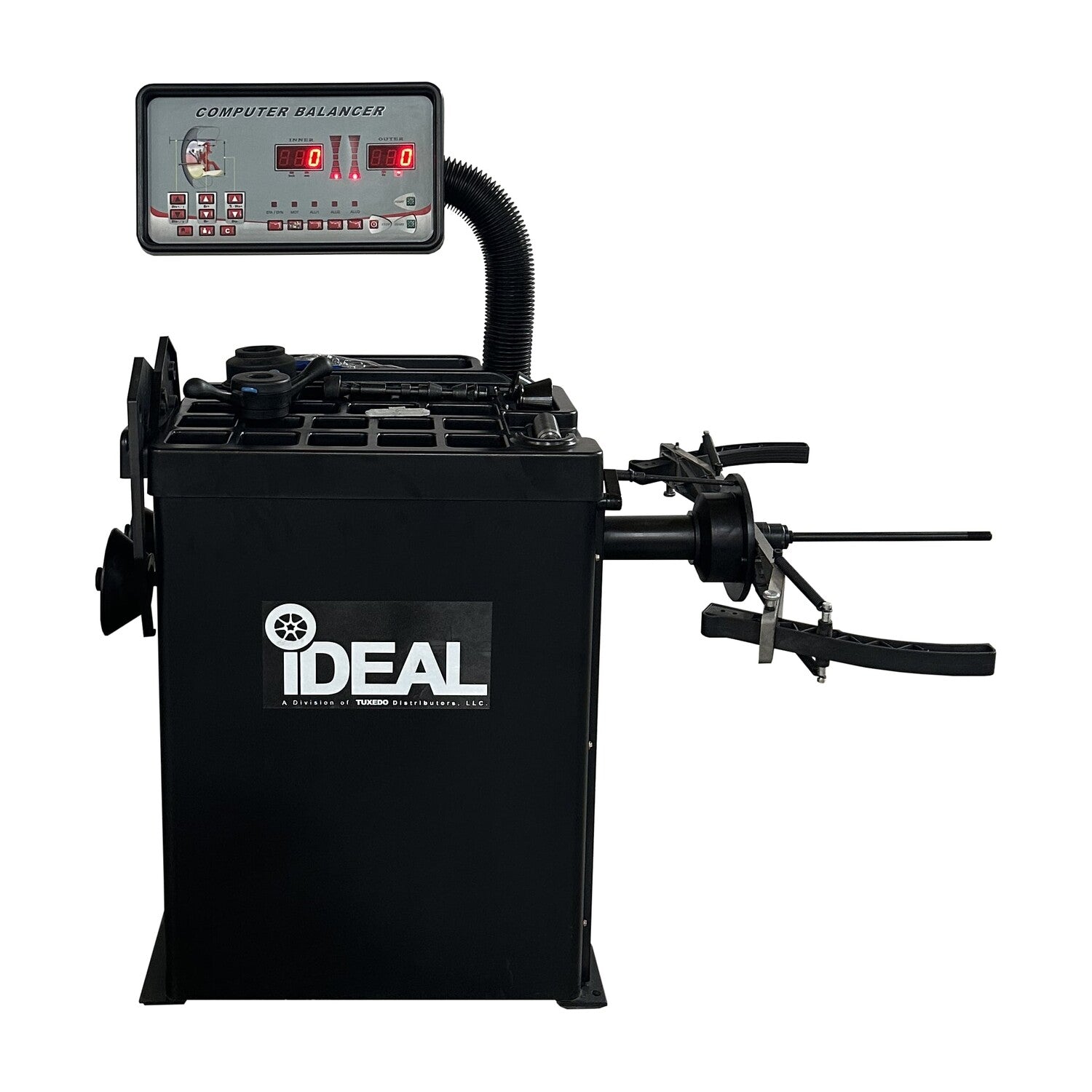

iDEAL Motorcycle Wheel Balancer #WB-953-B-MCAB-K
| Model / Part Number | WB-953-B-MCAB-K |
| Type | Motorcycle & auto wheel balancer, keypad data entry, standard finish |
| Max Tire Diameter (Motorcycle) | 14.5 in – 32 in |
| Max Tire Diameter (Truck/Auto) | 39 in |
| Rim Width | 1.5 in – 20 in |
| Rim Diameter | 10 in – 24 in |
| Wheel Weight Capacity | 150 lb |
| Accuracy | 1 gram |
| Power | 110V, 15A, single-phase |
| Ship Weight | 305 lb (specification sheet); 317 lb (Alamo crated ship weight) |
- Level, load-rated shop floor for a 317 lb balancer
- Indoor use; no special anchoring required
- 110V, 15A, single-phase electrical service for the balancer motor
- No compressed air required for balancing operation
- Allow clearance around the balancer for wheel loading/unloading and operator access
- Plan the delivery path for crated freight
- Ships by LTL freight
iDEAL Motorcycle & Auto Wheel Balancer — WB-953-B-MCAB-K
The Tuxedo WB-953-B-MCAB-K is a dual-purpose wheel balancer built to handle both motorcycle wheels and passenger car/light-truck wheels on one machine. It balances motorcycle tires from 14.5 in to 32 in in diameter and auto/truck tires up to 39 in, with a rim diameter range of 10 in to 24 in and rim width from 1.5 in to 20 in.
Data entry is via keypad, and the balancer is rated to 1-gram accuracy on wheel/tire assemblies up to 150 lb. It runs on standard 110V, 15A single-phase power, so it drops into most shops without new electrical work.
It's built for powersport dealerships, general repair shops, and independent tire/wheel service businesses that want one balancer capable of covering both motorcycle and automotive wheel work instead of running two separate machines.
Who It's Built For
- ✅ Powersport dealerships and motorcycle repair shops adding wheel balancing capability
- ✅ General repair and tire shops that want one balancer covering both motorcycle and auto/light-truck wheels
- ✅ Facilities with standard 110V single-phase power and no compressed air line at the balancer location
What It's NOT Built For
- ❌ Wheel/tire assemblies over 150 lb or auto tires over 39 in diameter
- ❌ Shops needing fully automatic data entry (this unit uses keypad entry, not laser/sonar auto-measurement)
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the WB-953-B-MCAB-K Different
Dual Motorcycle & Auto Capability
Covers motorcycle tires 14.5 in–32 in and auto/truck tires up to 39 in on a single balancer, with a 10 in–24 in rim diameter range — useful for shops that service both vehicle types.

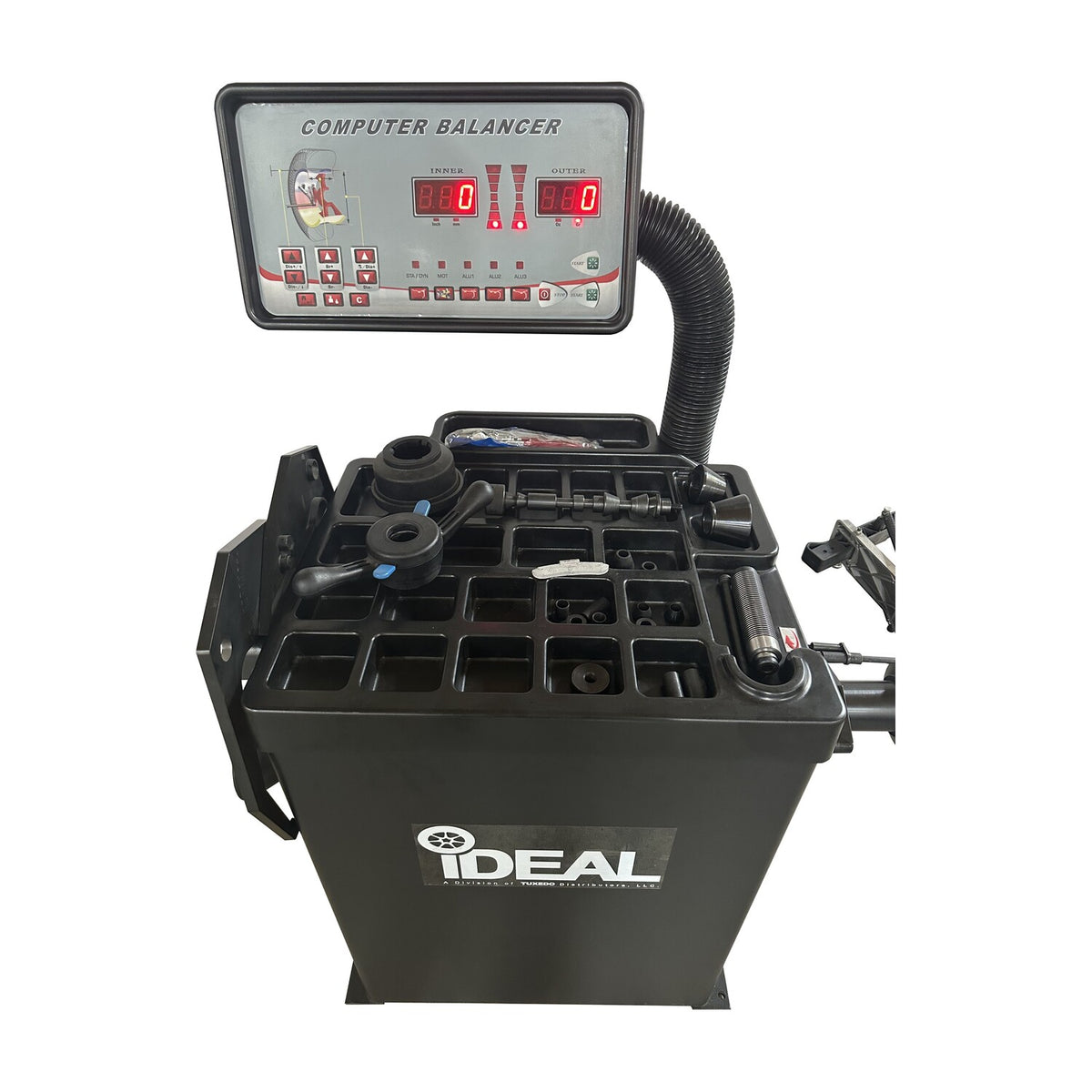

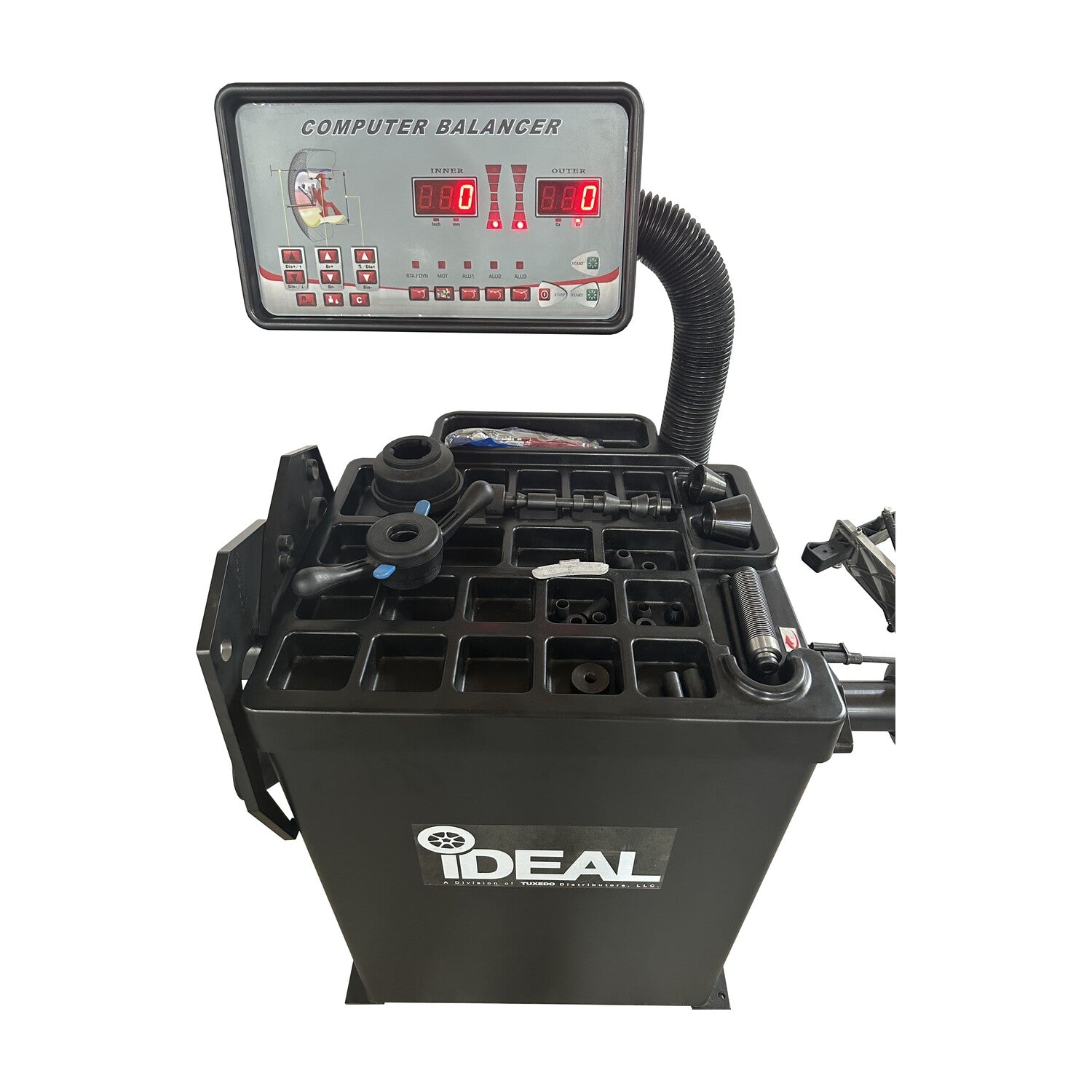

Keypad Data Entry
Rim width and diameter are entered via keypad rather than automatic sonar/laser measurement, keeping the machine straightforward to operate and maintain.
1-Gram Accuracy, 150 lb Capacity
Balances wheel/tire assemblies up to 150 lb to within 1 gram of accuracy.
110V Single-Phase Power Only
No compressed air line is required — the balancer runs on standard 110V, 15A single-phase power alone.
Footprint
Ship weight is approximately 317 lb; confirm floor space and clearance for wheel loading before ordering.
✅ Best For
- ✅ Shops that need to balance both motorcycle and passenger/light-truck wheels on one machine
- ✅ Facilities with only 110V single-phase power available at the balancer location
- ✅ Independent and dealership service bays adding balancing capacity alongside a tire changer
❌ Not Ideal For
- ❌ Wheel/tire assemblies heavier than 150 lb
- ❌ Shops wanting fully automatic sonar/laser rim measurement instead of keypad entry
WB-953-B-MCAB-K vs. TC-400M-B-PL230-K — Wheel Balancer or Tire Changer?
These serve different jobs in the same wheel-service bay, not competing options.
| Decision Point | WB-953-B-MCAB-K | TC-400M-B-PL230-K |
|---|---|---|
| Function | Balances a mounted wheel/tire assembly | Mounts and demounts tires from the rim |
| Max wheel/tire size | 39 in tire diameter (auto), 14.5–32 in (motorcycle) | 37 in wheel diameter, 10 in width |
| Power requirement | 110V, 15A single-phase (no air required) | 110V, 15A single-phase + 125 psi air |
| Typical pairing | Paired with a tire changer to complete the job | Paired with a wheel balancer to complete the job |
Most powersport service bays need both: the TC-400M-B-PL230-K to mount/demount tires and a WB-953-B-MCAB-K to balance them afterward. Call (817) 865-3707 if you're outfitting a full wheel-service bay.
Full Specifications — WB-953-B-MCAB-K
| Model / Part Number | WB-953-B-MCAB-K |
| Type | Motorcycle & auto wheel balancer, keypad data entry, standard finish |
| Data Entry | Keypad |
| Max Tire Diameter (Motorcycle) | 14.5 in – 32 in |
| Max Tire Diameter (Truck/Auto) | 39 in |
| Rim Width | 1.5 in – 20 in |
| Rim Diameter | 10 in – 24 in |
| Wheel Weight Capacity | 150 lb |
| Accuracy | 1 gram |
| Power | 110V, 15A, single-phase |
| Ship Weight | 317 lb |
| Shipping Dimensions | 28 in L x 39 in W x 46 in H |
⚠️ Installation Requirements
- Floor: Level, load-rated shop floor; no special anchoring required for standard use.
- Electrical: 110V, 15A, single-phase circuit for the balancer motor.
- Clearance: Allow room around the unit for wheel loading/unloading and operator access.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate setup.
Warranty — WB-953-B-MCAB-K
For exact warranty terms and coverage on the WB-953-B-MCAB-K, please contact Alamo Equipment at (817) 865-3707.
❓ Frequently Asked Questions — WB-953-B-MCAB-K
Does the WB-953-B-MCAB-K price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Can this balancer handle both motorcycle and car wheels?
Yes. It balances motorcycle tires from 14.5 in to 32 in and auto/light-truck tires up to 39 in, with a rim diameter range of 10 in to 24 in.
How accurate is the WB-953-B-MCAB-K?
It's rated to 1-gram accuracy on wheel/tire assemblies up to 150 lb.
Does it need compressed air?
No. The balancer runs on 110V, 15A single-phase power only — no shop air connection is required.
What's different from the black-finish version?
The WB-953-B-MCAB-K-BLK is the identical machine and specifications in a black finish; there is no functional difference.
