Tuxedo 11,000 lb Two Post Clear Floor --Direct Drive, Bi-Symmetric #TP11KC-DX

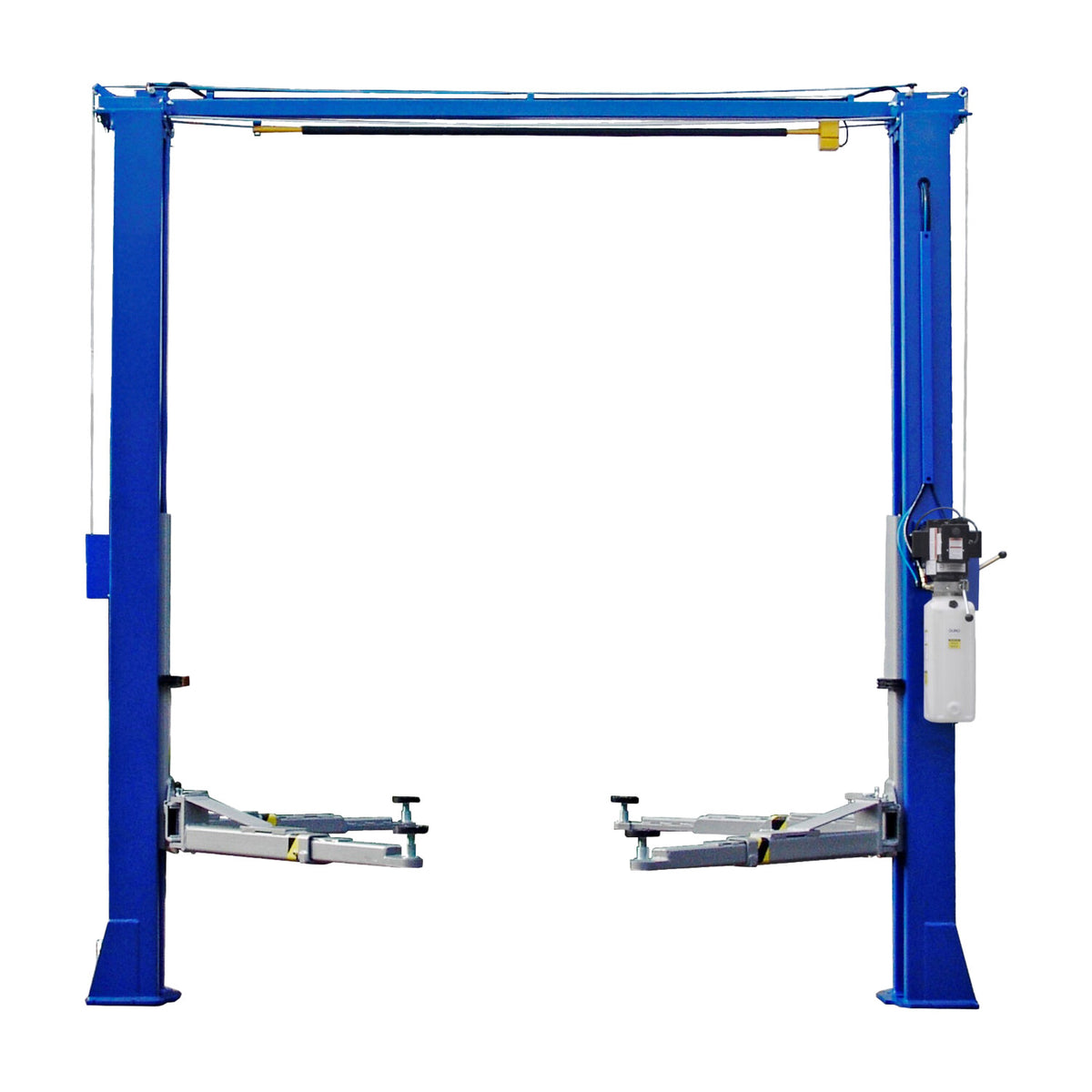

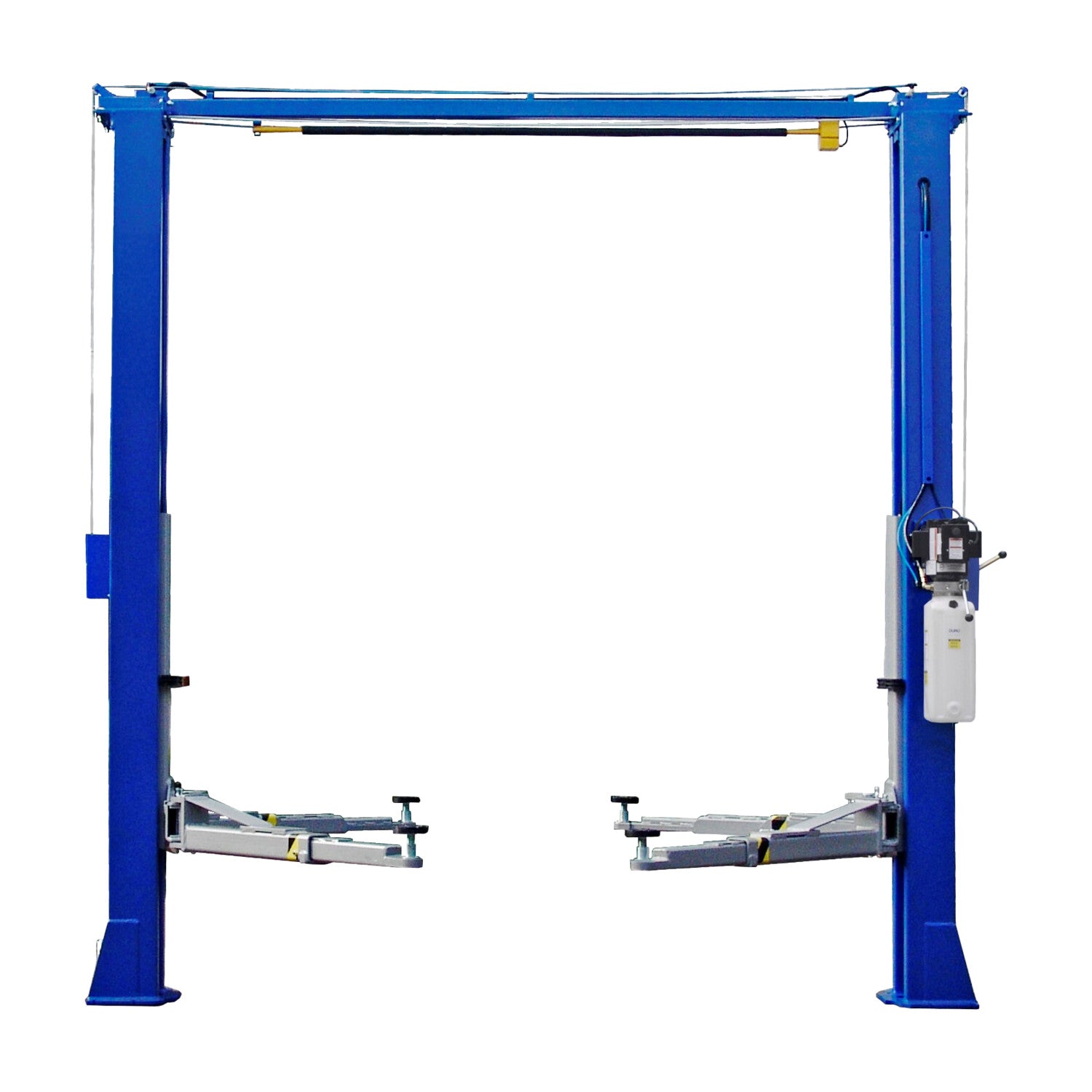

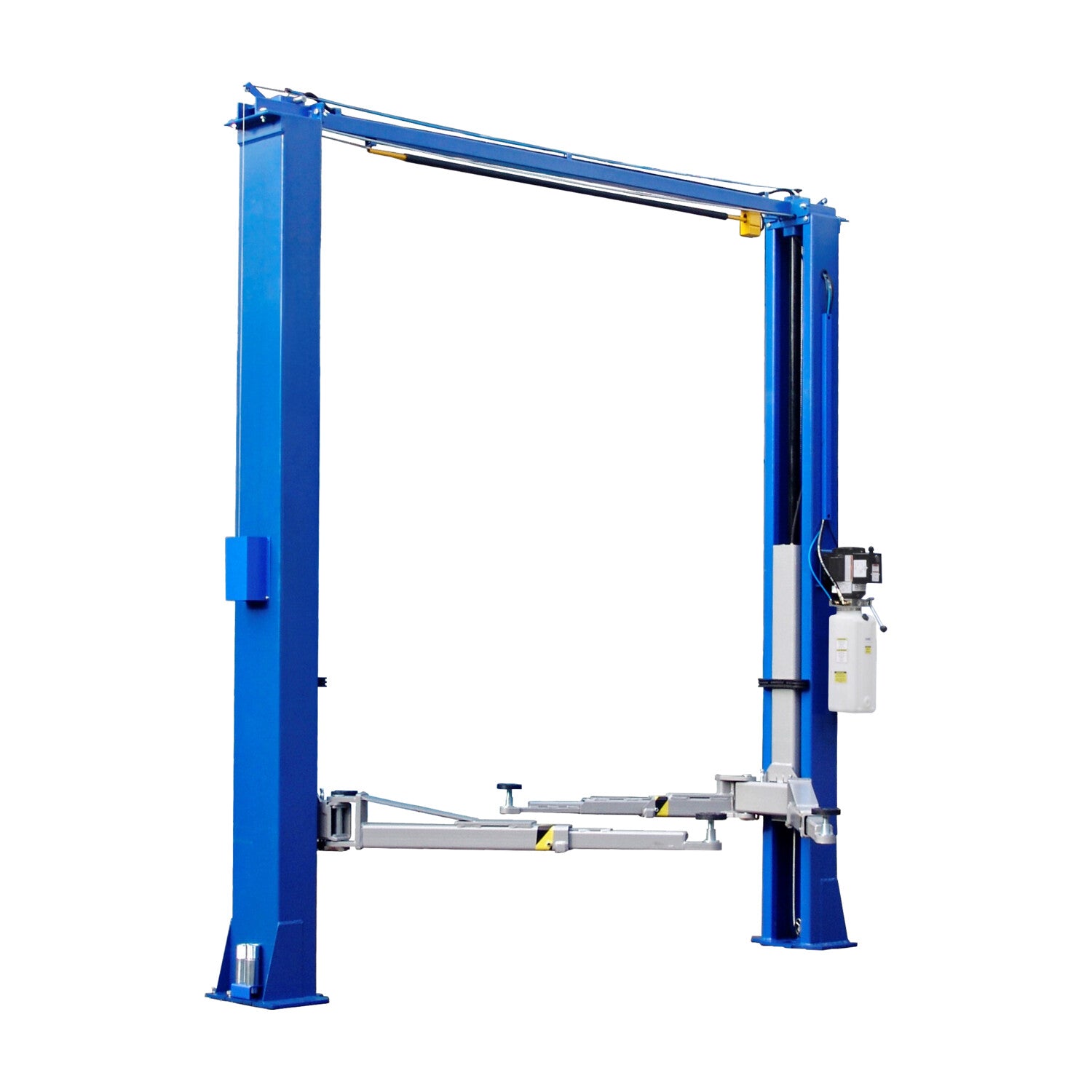

Tuxedo TP11KC-DX — 11,000 lb Two Post Clear-Floor Lift

The Tuxedo TP11KC-DX is an 11,000 lb capacity two-post clear-floor lift with a bi-symmetric arm configuration rated to 2,750 lb per arm — the highest per-arm rating in Tuxedo's TP9K–TP11K clear-floor lift family. Short-arm reach runs 23 in–45 in and long-arm reach 41 in–57 in, sized to center a wide range of vehicle wheelbases.

It uses a direct-drive hydraulic cylinder system with a clear-floor design (no floor plate obstruction between columns), rubber door guards, and a single-point manual lock release. Overall height is 144 in with a 71 in max lift height, 116 in between columns, and 104 in of drive-thru clearance.

It's built for general repair shops and dealerships that need capacity above the standard 9,000–10,000 lb class — for heavier trucks, vans, and SUVs — without moving up to a full heavy-duty lift.

Who It's Built For

• ✅ General repair shops and dealerships servicing heavier trucks, vans, and SUVs up to 11,000 lb
• ✅ Facilities that have outgrown a 9,000–10,000 lb two-post lift's per-arm capacity
• ✅ Shops that want a clear-floor design for unobstructed tool and jack access

What It's NOT Built For

• ❌ Vehicles or loads exceeding 11,000 lb total or 2,750 lb per arm
• ❌ Shops requiring ALI-certification documentation specifically for this model (see TP10KAC-DX or TP12KSC-DX, which are ALI certified)

Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.

What Makes the TP11KC-DX Different

11,000 lb Capacity, 2,750 lb Per Arm

The TP11KC-DX sits between the TP10KAC-DX and TP12KSC-DX in capacity, with the highest per-arm rating (2,750 lb) of the three at this frame size.

Bi-Symmetric Arm Configuration

Short arm reach of 23 in–45 in and long arm reach of 41 in–57 in accommodate a range of vehicle configurations under rated capacity.

Direct-Drive Hydraulics

A direct-drive push-cylinder hydraulic system simplifies the lifting mechanism versus a cable-drive design.

Clear-Floor Design

No floor plate between the columns, keeping the bay floor open for jacks, tool carts, and creepers.

Footprint

116 in between columns, 145-1/2 in overall width with power unit, 104 in drive-thru clearance — confirm against your bay.

✅ Best For

• ✅ Shops servicing heavier trucks, vans, and SUVs that exceed a 10,000 lb lift's comfortable margin
• ✅ Facilities wanting the highest per-arm rating in this two-post frame size
• ✅ General service bays wanting a clear floor for tool and jack access

❌ Not Ideal For

• ❌ Loads over 11,000 lb total or 2,750 lb per arm — see the TP12KSC-DX for higher capacity
• ❌ Shops that specifically require this exact model to carry ALI certification

TP11KC-DX vs. TP10KAC-DX vs. TP12KSC-DX — Which Two-Post Lift Capacity Fits Your Bay?

All three are direct-drive two-post clear-floor lifts from the same Tuxedo two-post line, differing mainly in capacity and per-arm rating.

Choose the TP11KC-DX for 11,000 lb capacity with the highest per-arm rating in this frame size; choose the TP10KAC-DX or TP12KSC-DX if ALI certification is a requirement. Call (817) 865-3707 to confirm the right fit.

Full Specifications — TP11KC-DX

Warranty — TP11KC-DX

Tuxedo Distributors, LLC backs the TP11KC-DX with a limited one-year warranty to the original purchaser, covering parts found defective in materials or workmanship under normal use.

There is no other express warranty on Tuxedo lifts; this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose. Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we handle it.
